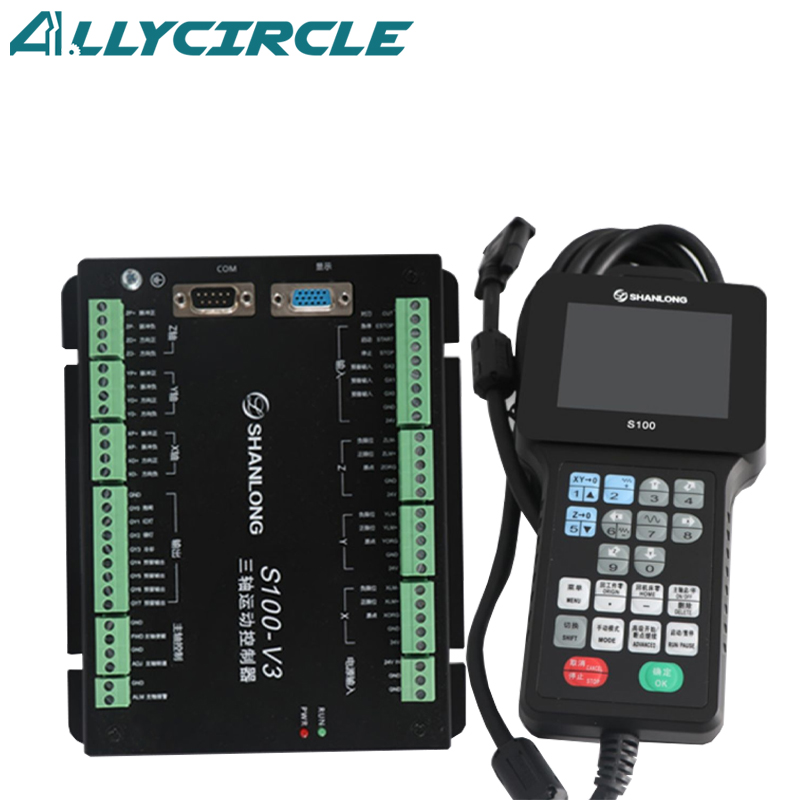

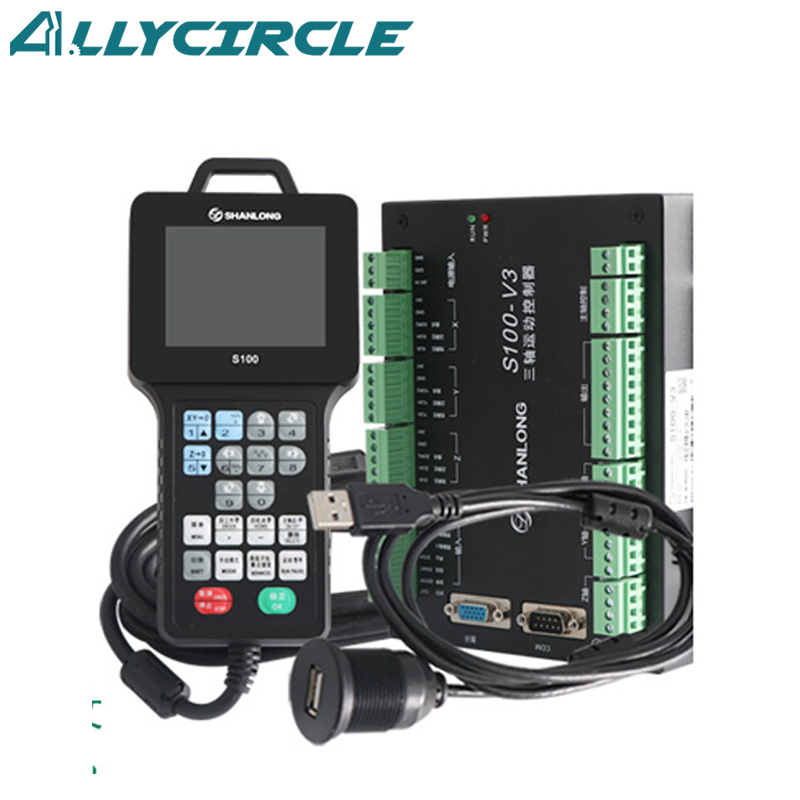

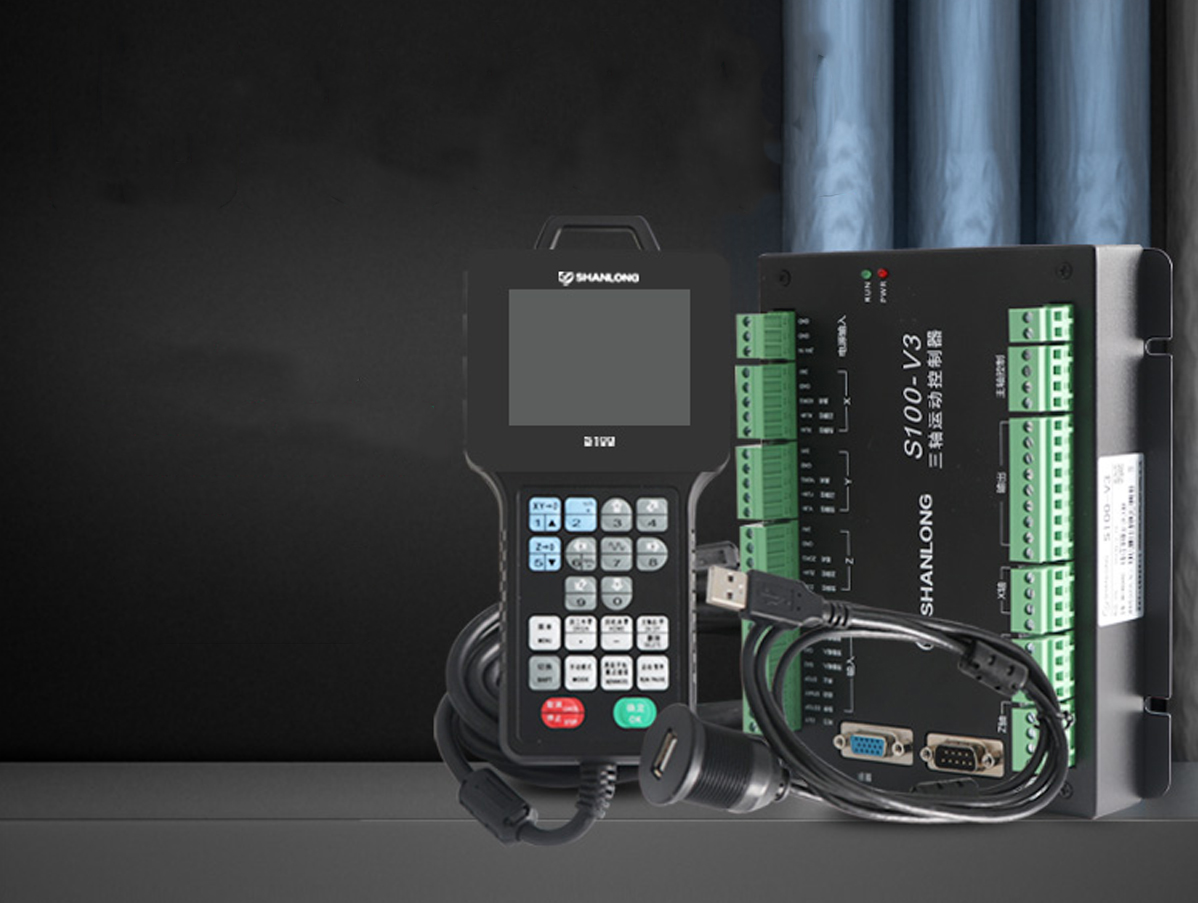

Shanlong S100  3 Axis DSP CNC Controller

Mini Measurement but Big Power

S100 is a kind of 3 AXIS DSP CNC Controller which based on ARM platform and customized from LINUX system,

and it is widely applicable for Stone processing,advertising industry, and it is quite used to long time processing.

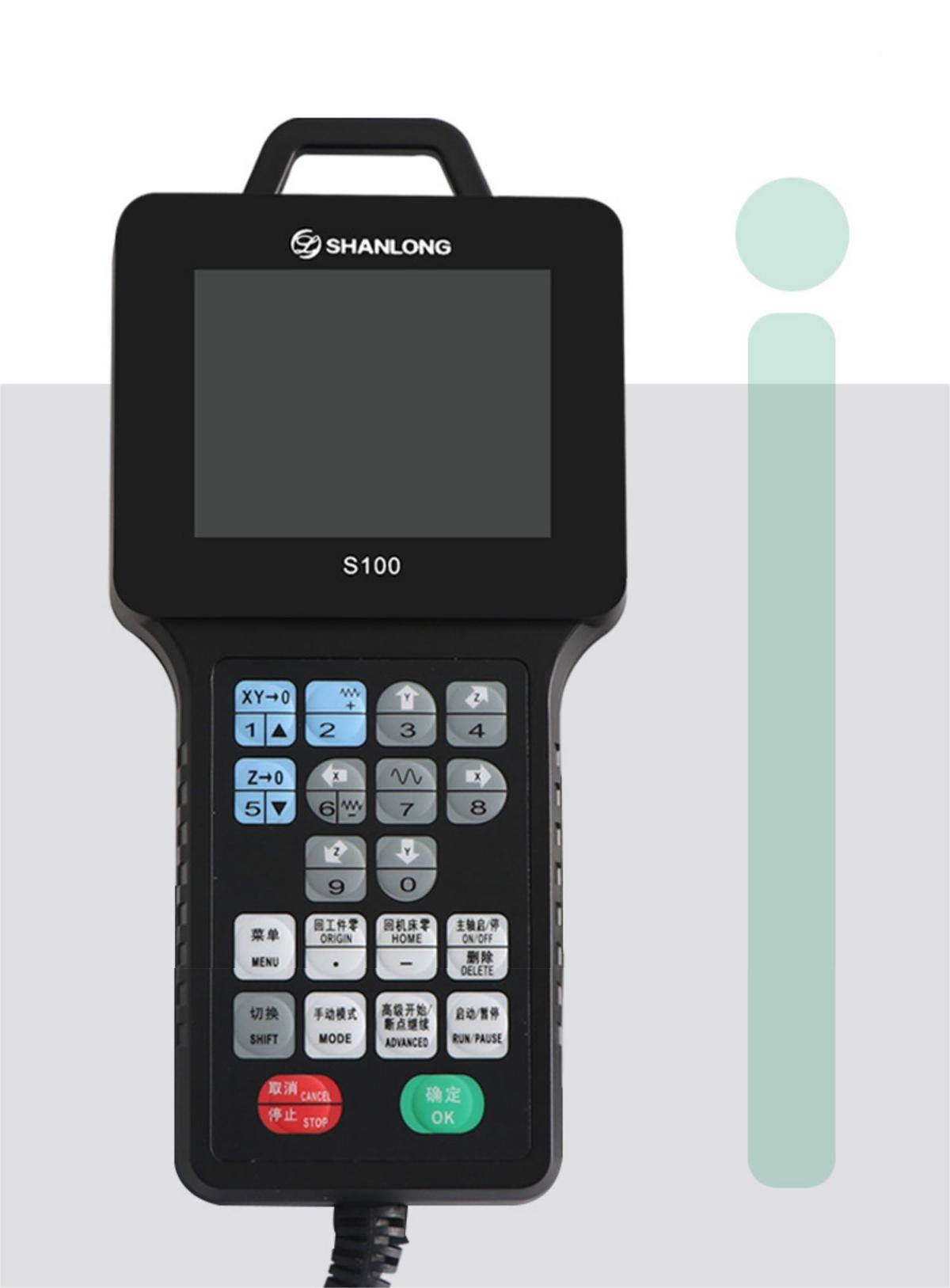

3.5Inch Colorful and

Intelligence Display

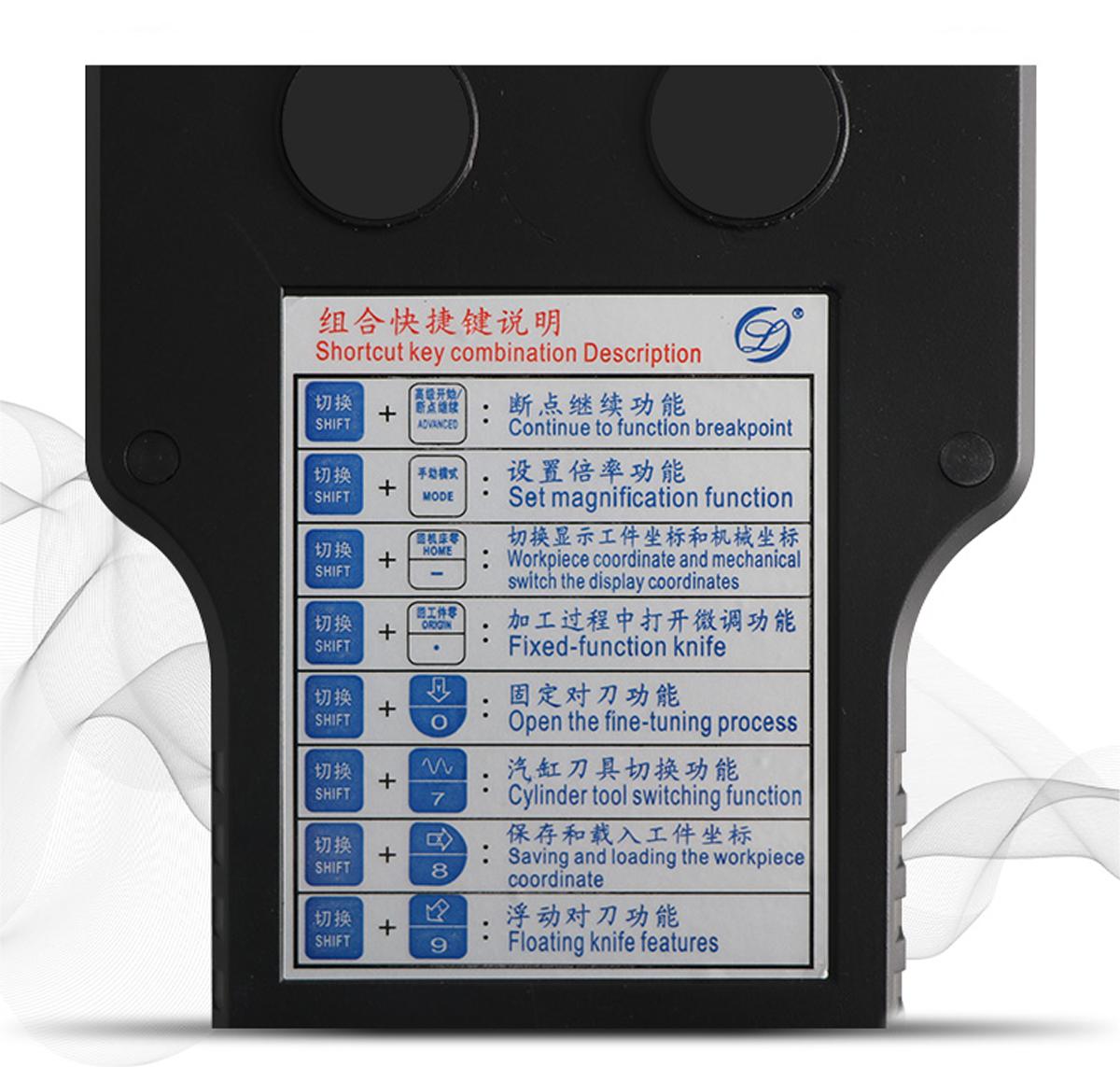

Back description of buttons

fresh man can master it quickly

Compatible with most format files

Such as .NC, .ISO, .ENG, .TAP, .U00, .FAN, .CNC,.MMG, .DXF, .PLT.

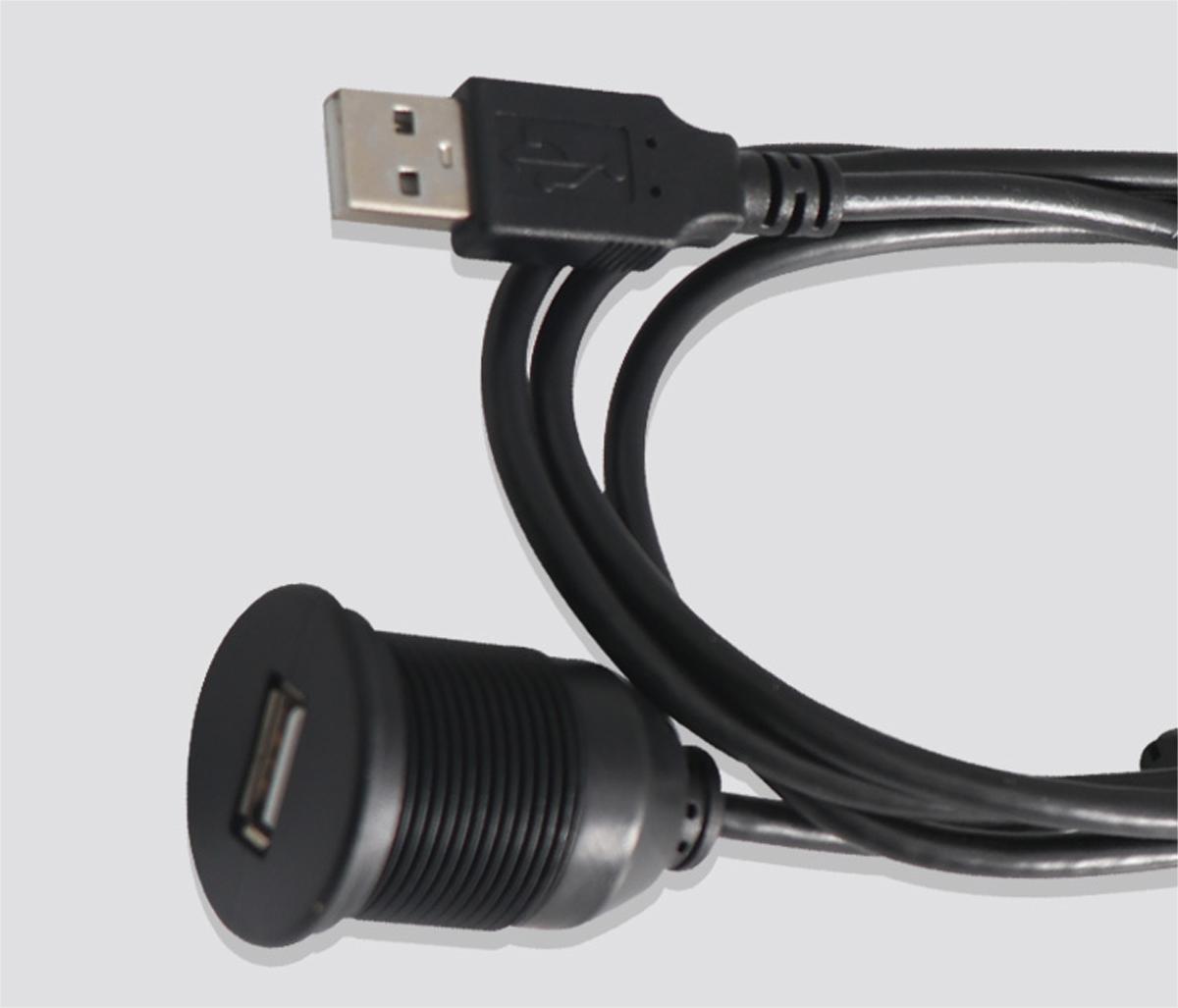

Quality cable adapter

 It is used for connect DSP and CNC Machine, and transfer signal to machine quickly, high anti-interference.

Parameter

Parameter for S100

Axis: 3 Axis

Display Measurement:3.5Inch

USB Port: USB 2.0

I/O Port: Input 6/Output 8

Spindle Signal: 0-10V Analog Signal

File Storage:4G

Hardware Platform: ARM

Process: Mirror Image Rotate,

Recycle Processing

Language: Chinese,English, Vietnamese

File Format: .NC, .ISO, .ENG, .TAP, .U00, .FAN, .CNC,.MMG, .DXF, .PLT.

Parameter for S200

Axis: 4 Axis

Display Measurement:3.5Inch

USB Port: USB 2.0

I/O Port: Input 4/Output 4

Spindle Signal: 0-10V Analog Signal

File Storage:4G

Hardware Platform: ARM

Process: Mirror Image Rotate, Recycle Processing

Language: Chinese,English, Vietnamese

File Format: .NC, .ISO, .ENG, .TAP, .U00, .FAN, .CNC,.MMG, .DXF, .PLT.

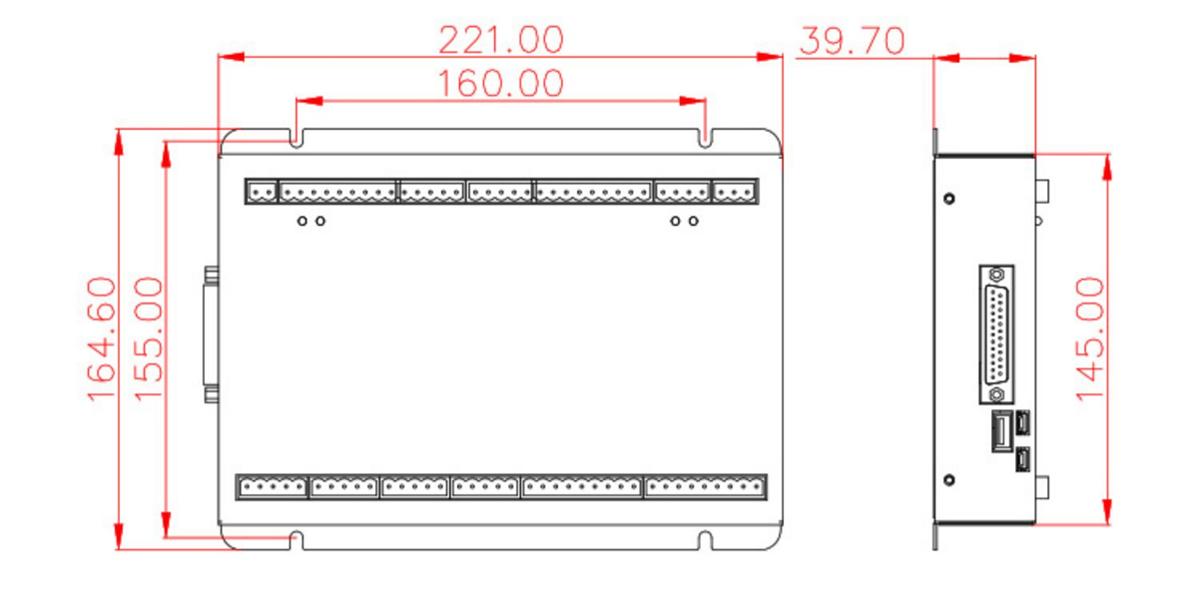

Dimension

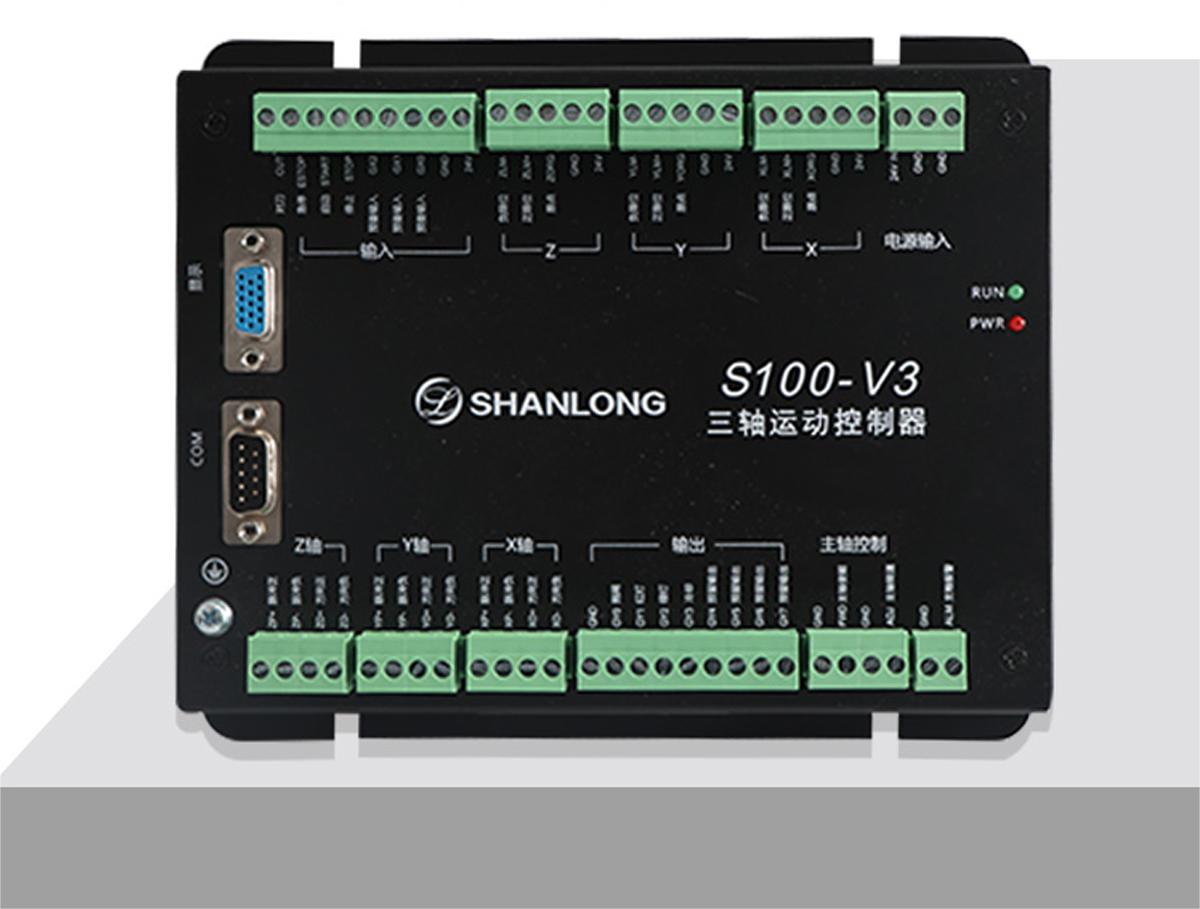

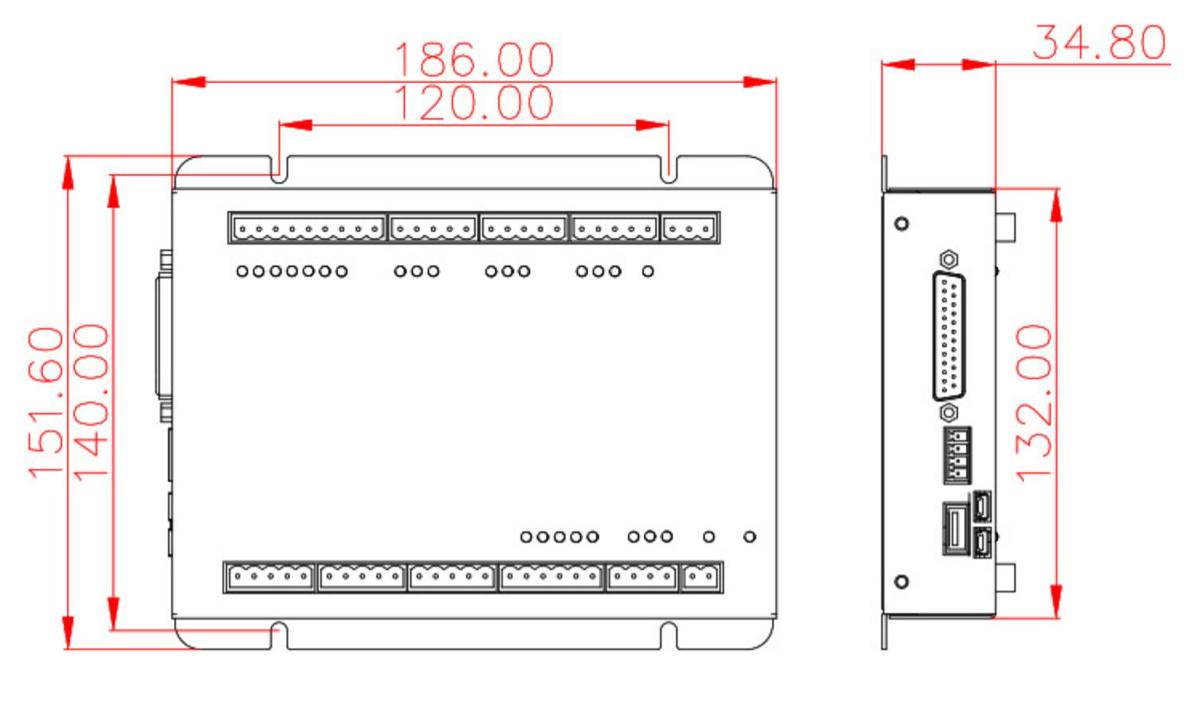

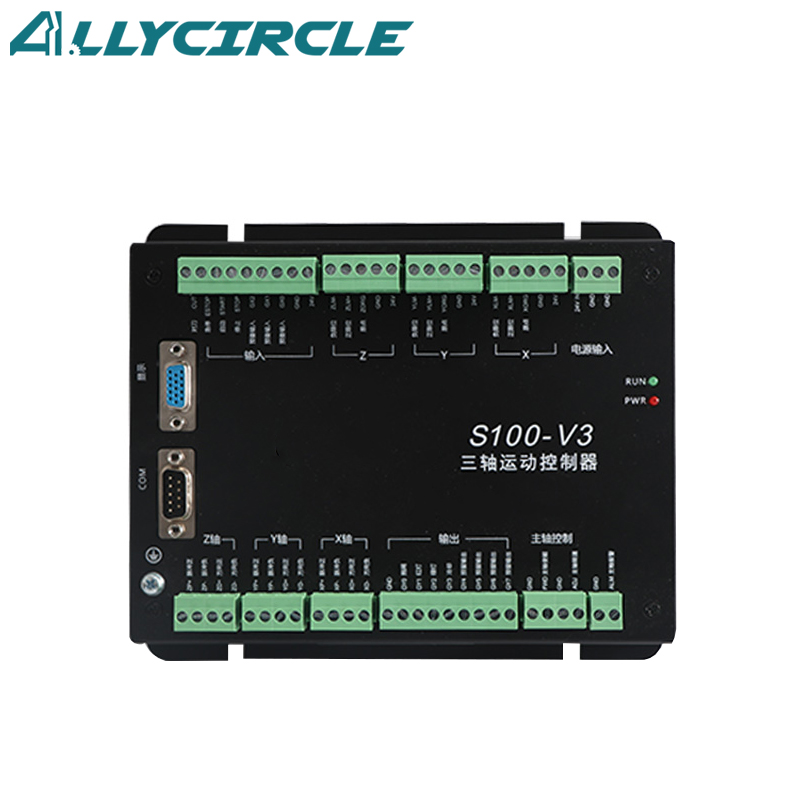

S100 Wiring Board

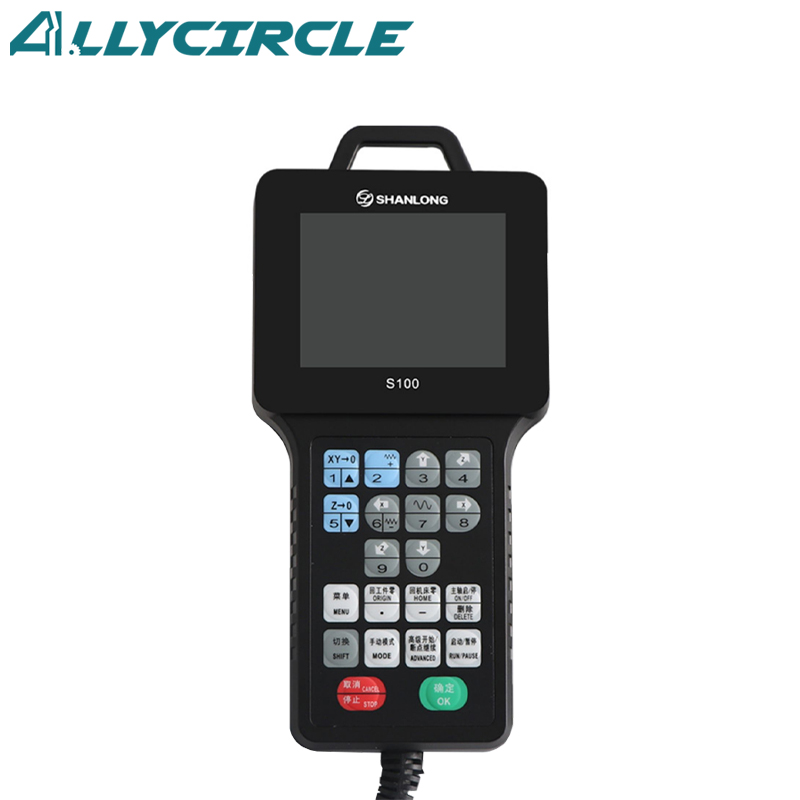

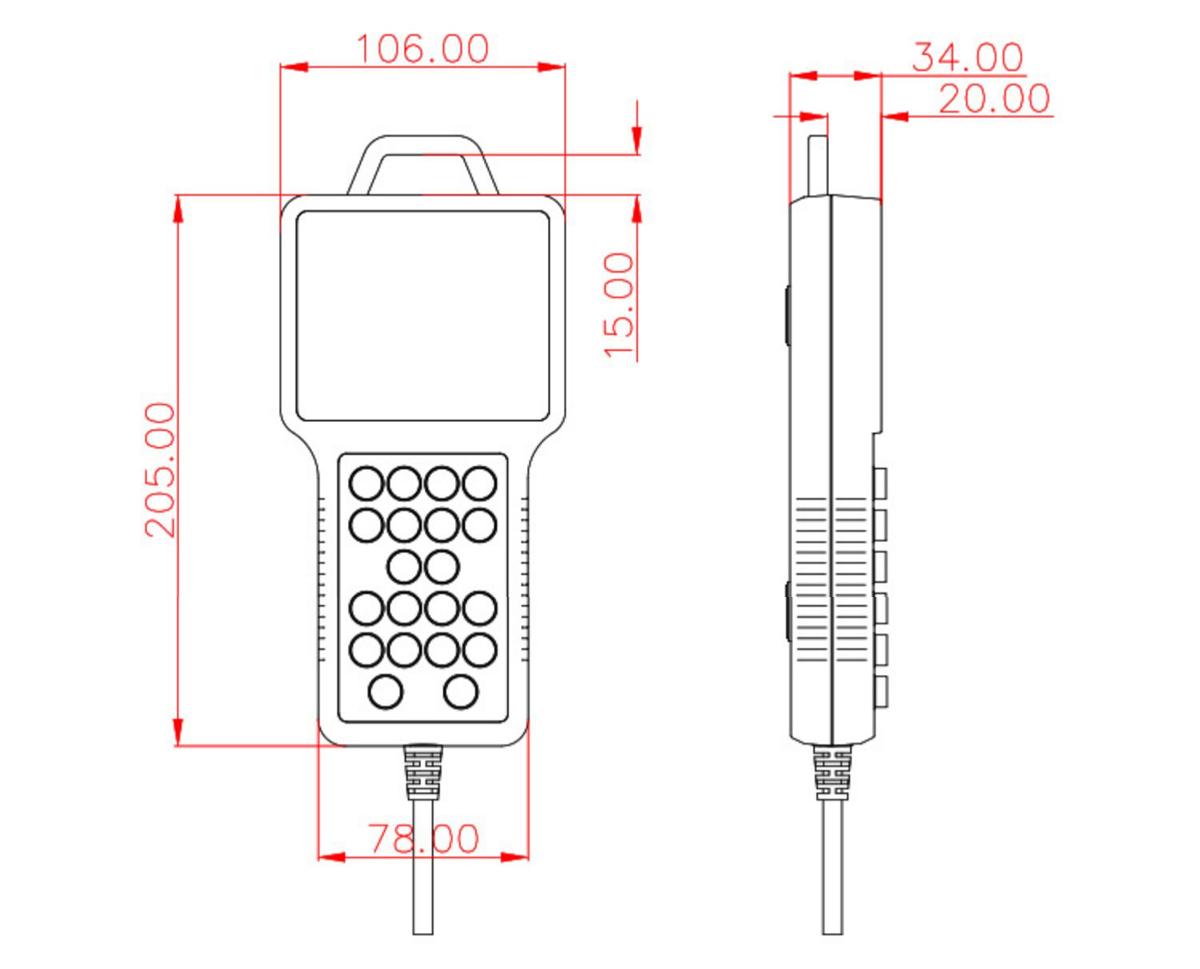

S100 DSP Handle

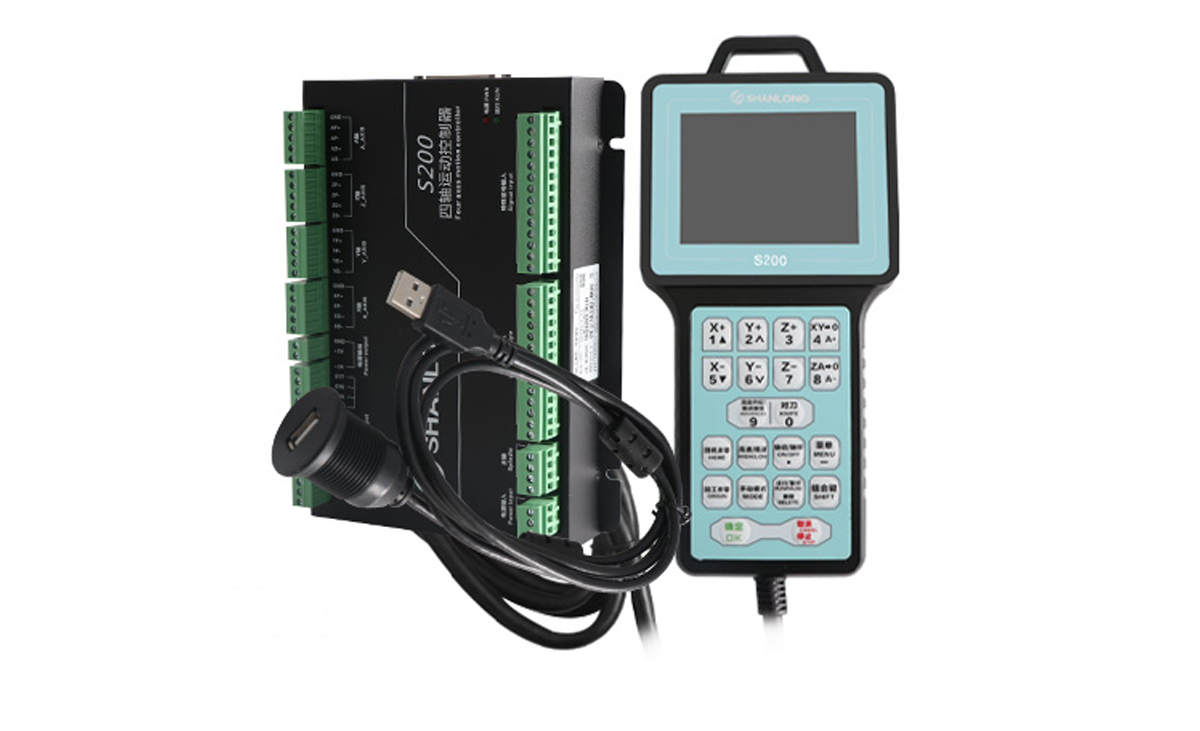

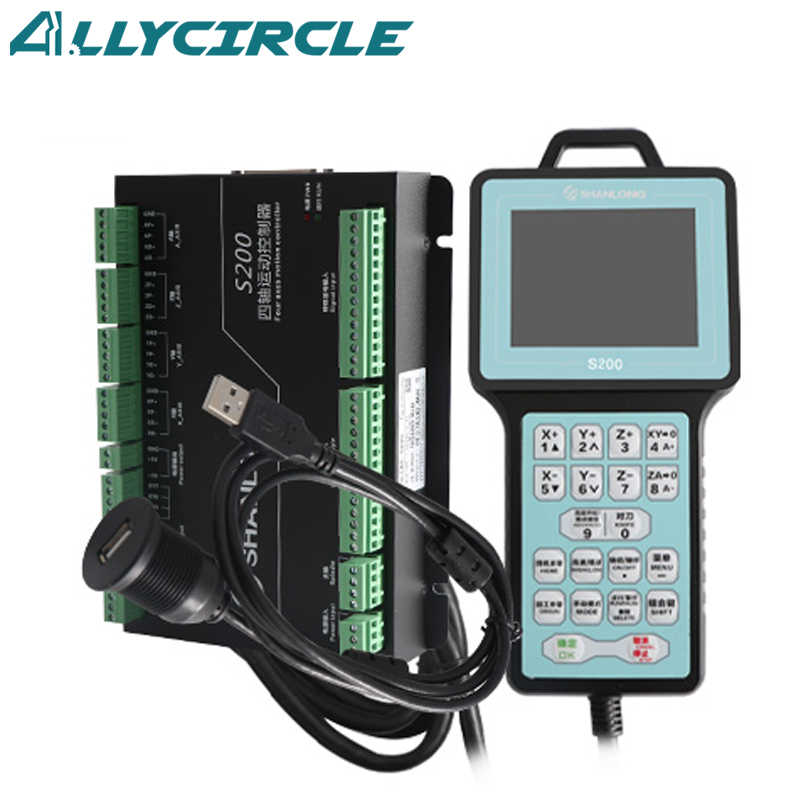

S200 Wiring Board

S200 DSP Handle

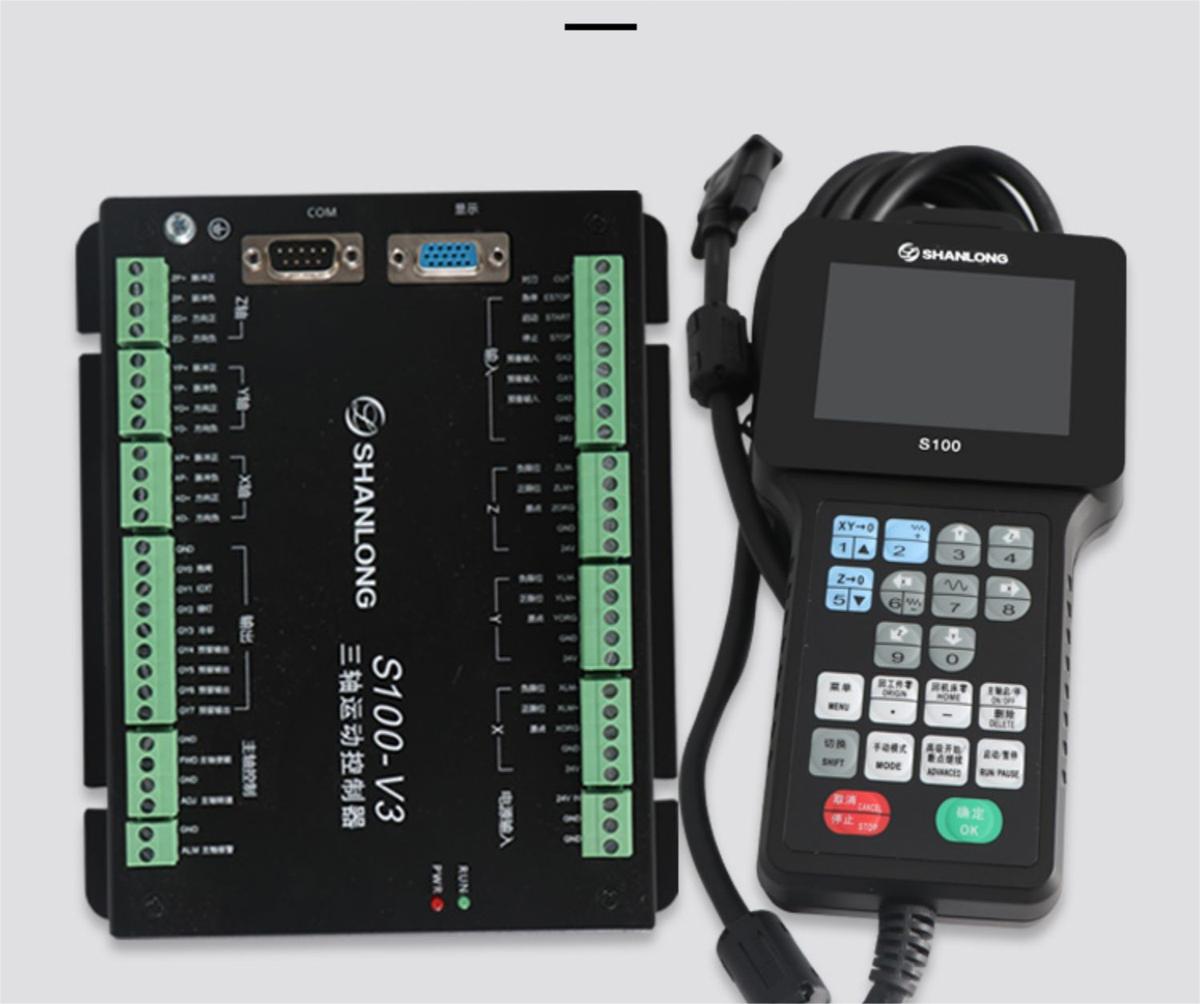

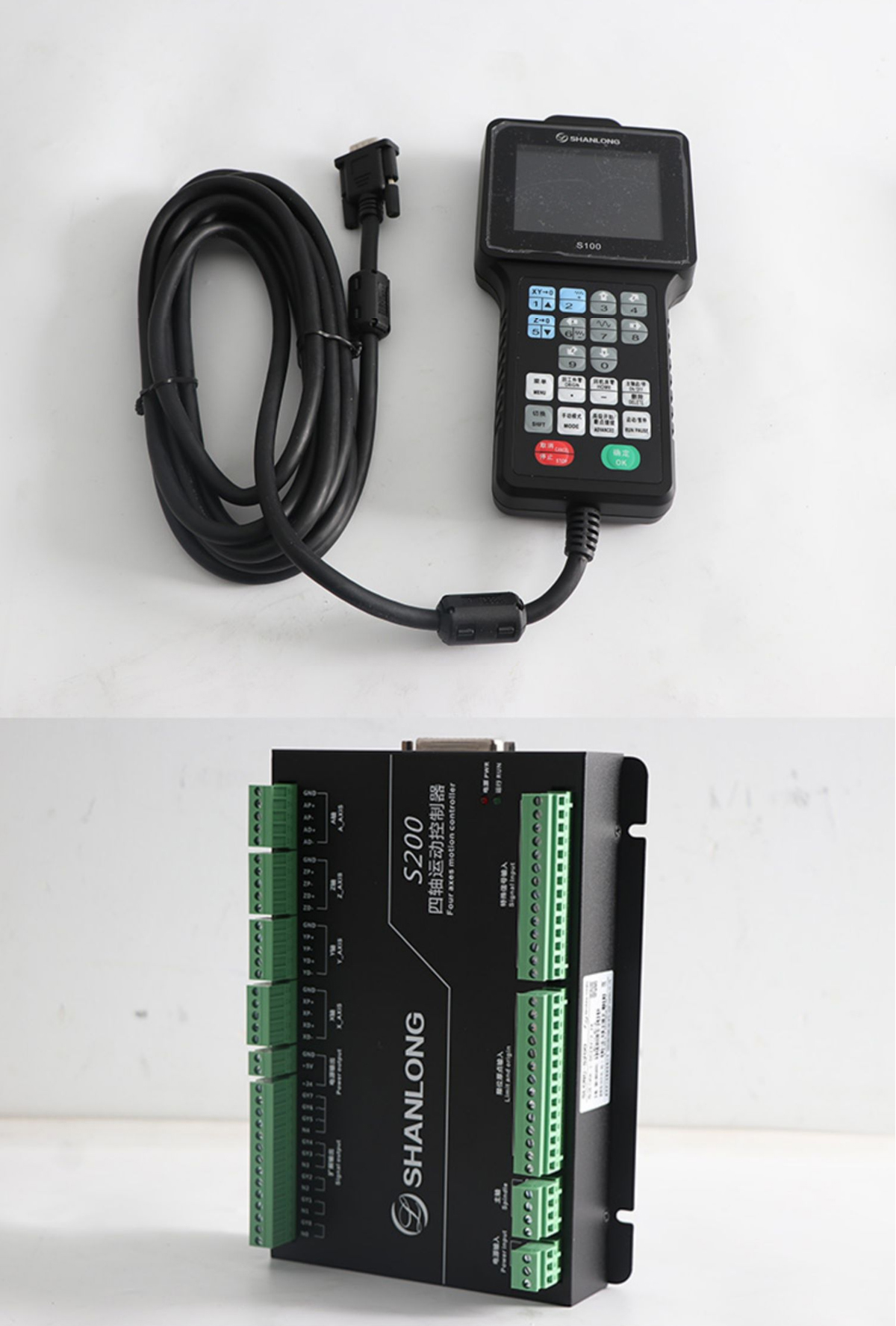

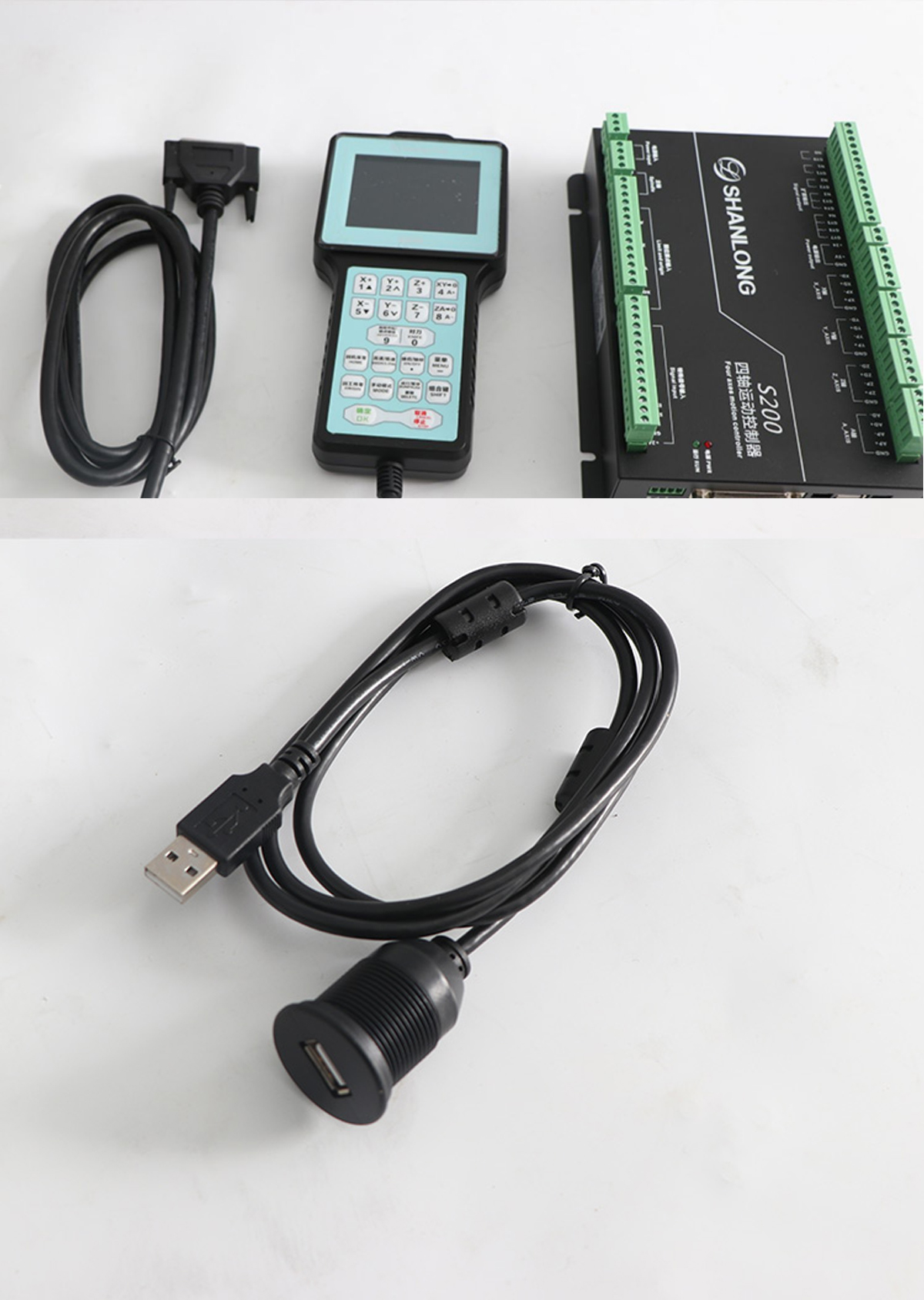

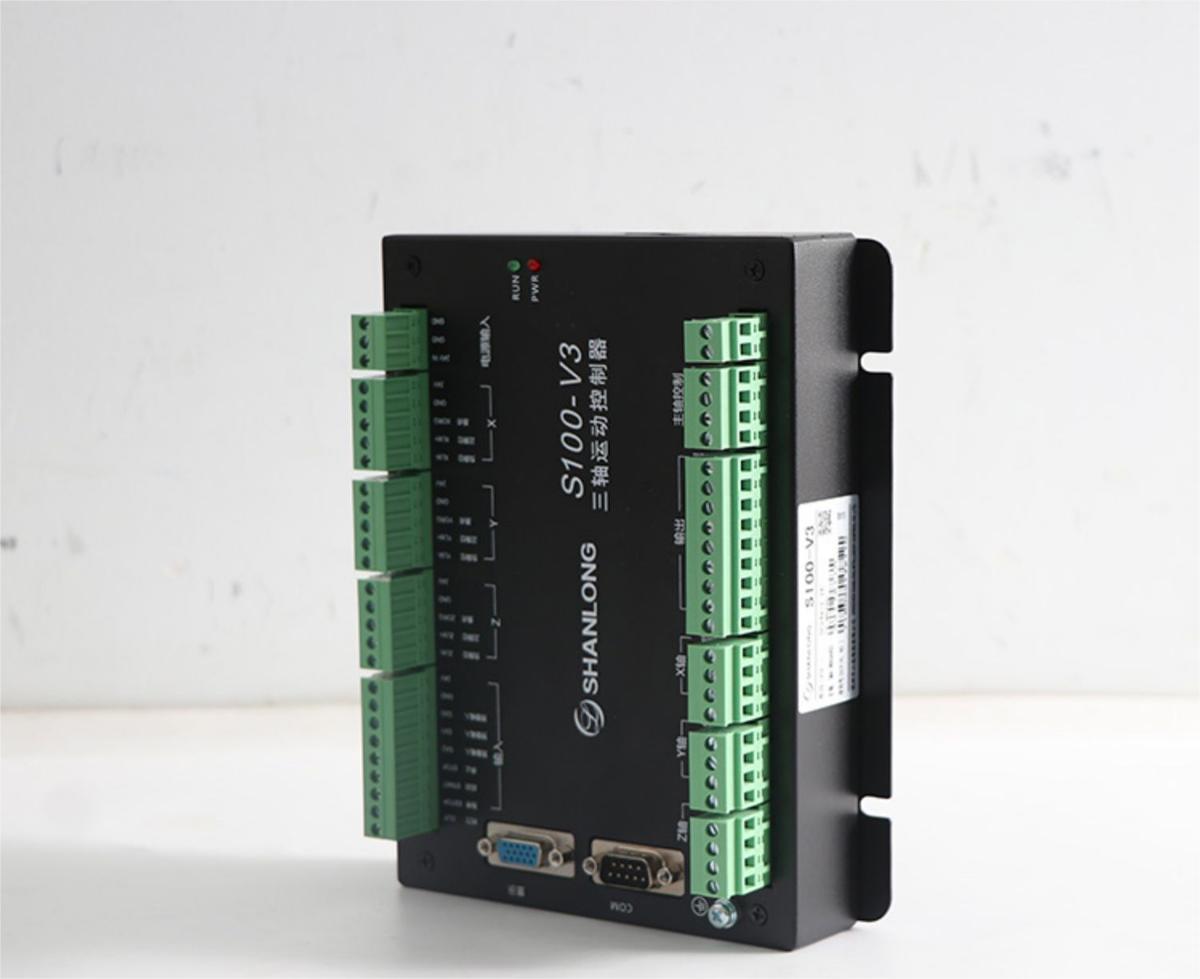

Real Photos
