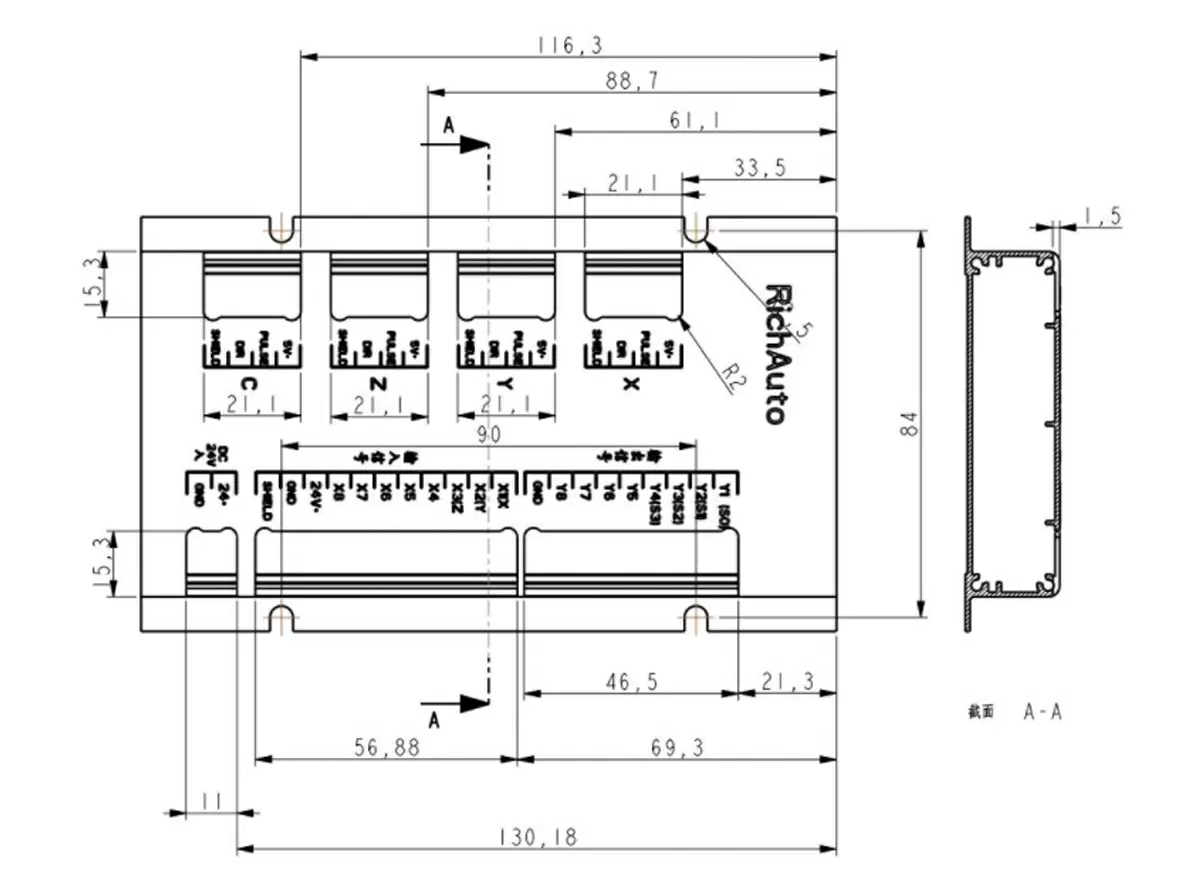

Installation Size

Product Feature

• 3 axis interpolations motion control, support 4 cylinders working.

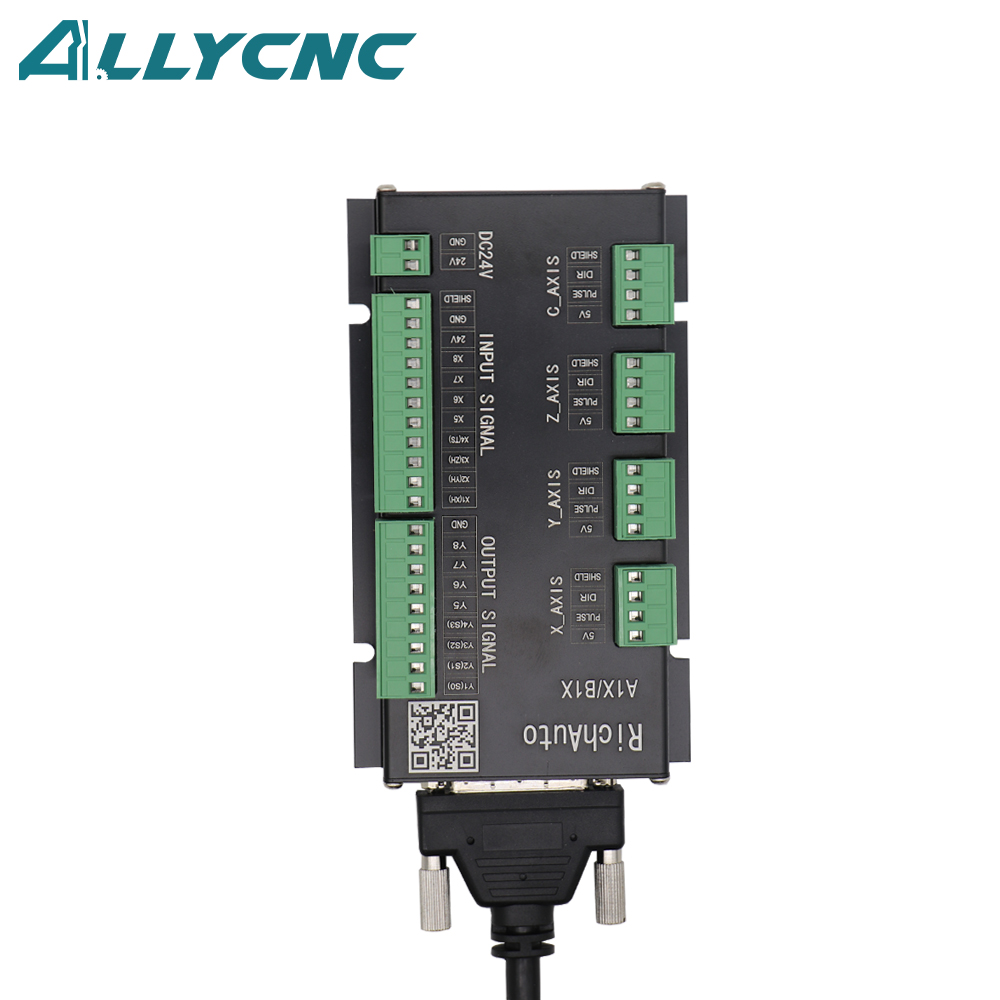

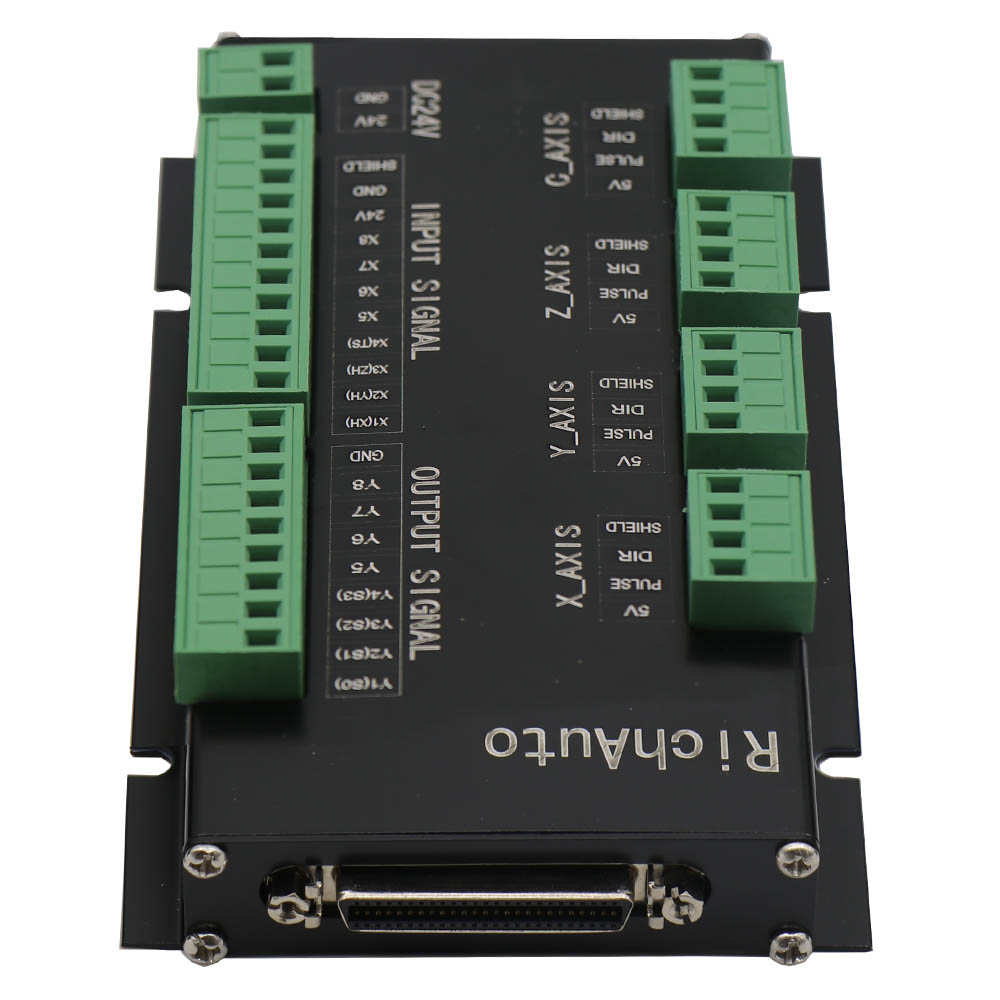

• Standard confiqure 8l/O interface board.

• Support mobile calibration & fixed calibration, Tool setting position and speed areconfiqurable.

• Read T command to control cylinders, spindles can switch flexibly

• Tool space can be set freely, system calculates compensation automatically·

• User only need to calibrate the cutter which is changed.

• 9 workpiece coordinates, 8 breakpoints storage positions.

• Support tool broken continue, breakpoint resume, Intelligent power failure recov-ery.

• HIGH/LOW manual speed switching, fine adjusting and distance setting·

• Offer system alarms for drivers, inverter, E-stop switch and hard limits·

• Stop position and status can be set as user's requested.

Product Parameters
