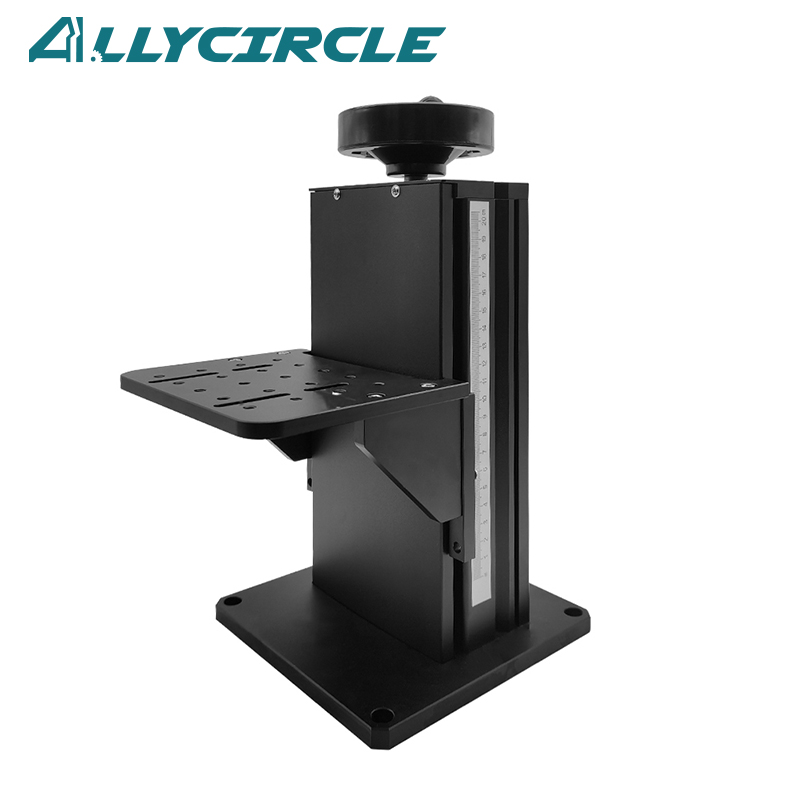

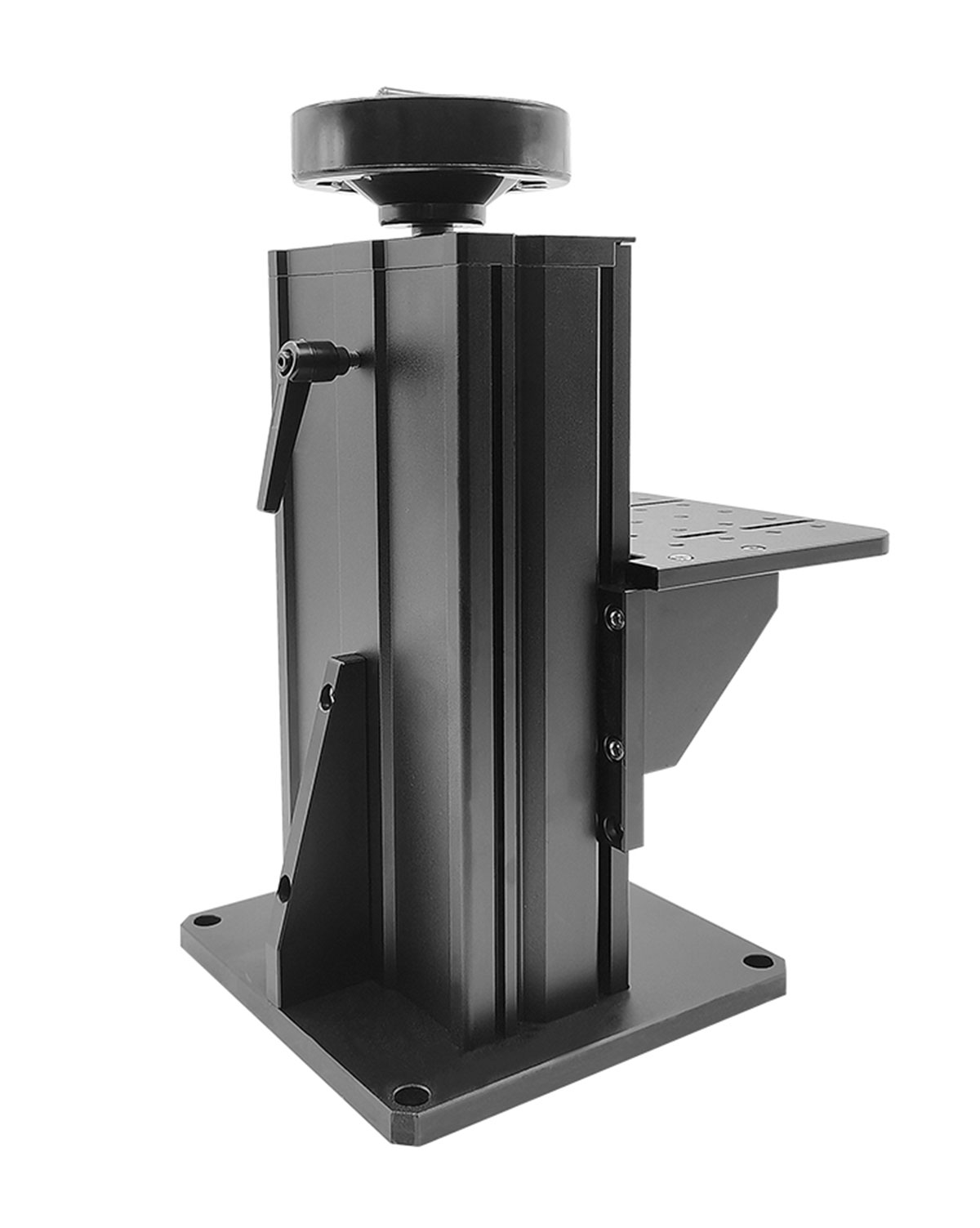

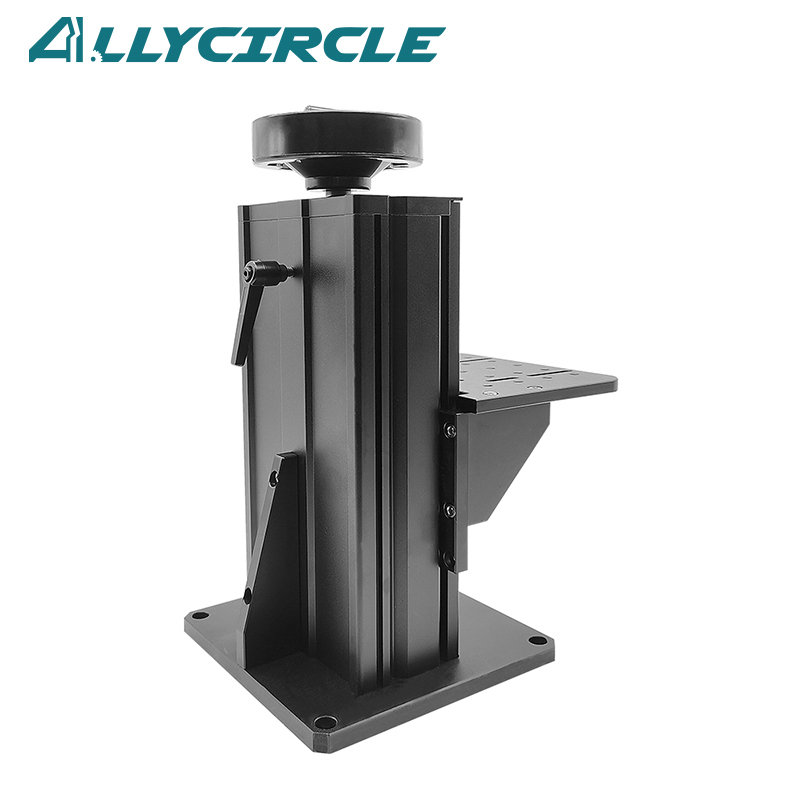

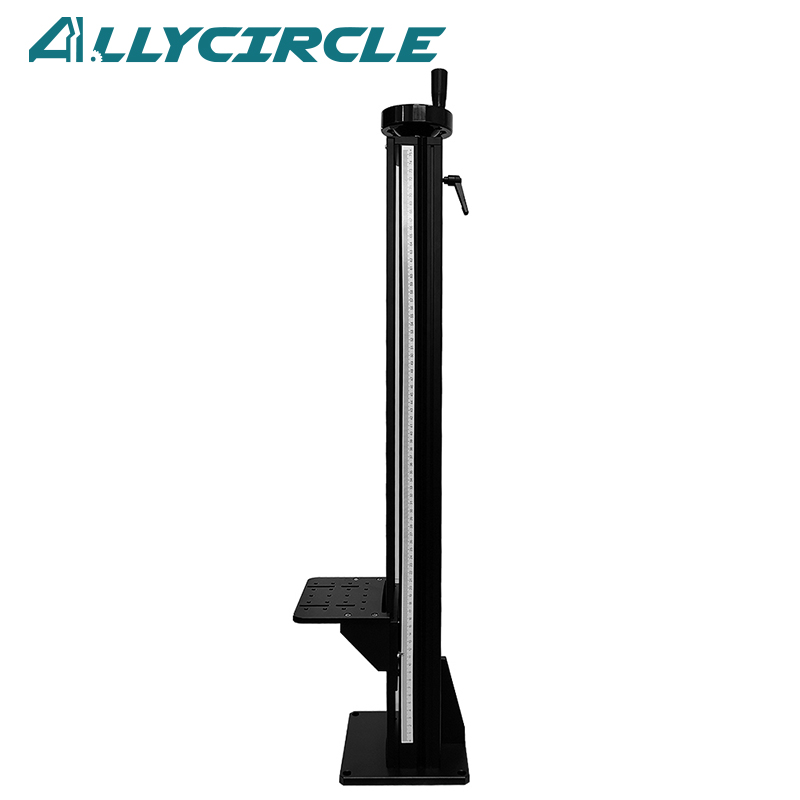

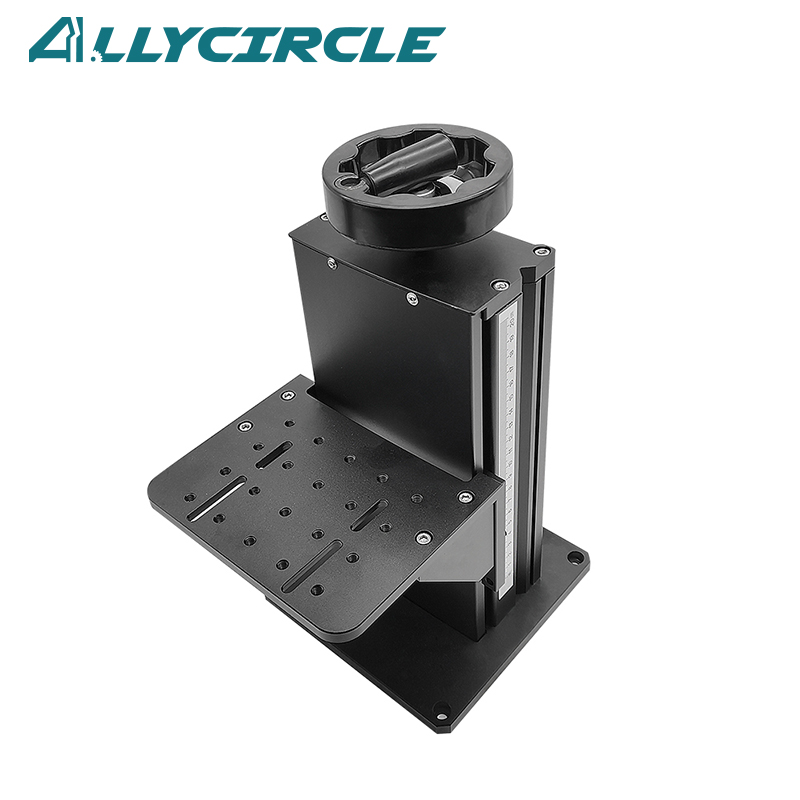

Z-axis Large Stroke Lifting Platform

Run Smoothly

Optional Itinerary

Quality Assurance

Product Parameters

Lift Table Information

Name:Z-axis Lift Table (Model:LZ-200/300/500/800)

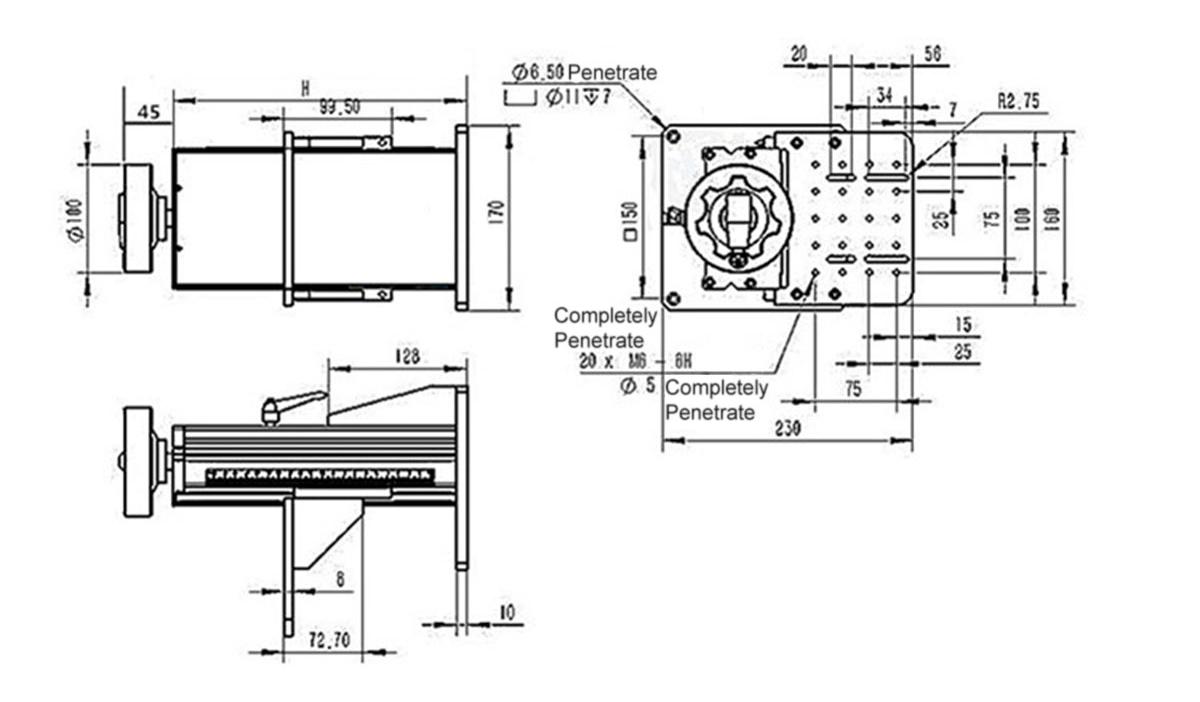

Dimensions:230*170*(LZ200=316) (LZ300=416) (LZ500=616) (LZ800=835)

(Bottom Plate)Fixing Plate Size:170*170*10MM

Mounting Hole Size:150*150MM (4-6.5 Countersunk Mounting Holes,Suitable for M6 Screws

Surface Treatment:Anodized Black

Lead Screw:M16*4 (T type lead screw)

Load:50kg    Dead Weight:LZ-500 About 6 KG

Advantage:Aluminum alloy material, high precision, light weight, heavy load,  durable, dustproof.

Product Analysis

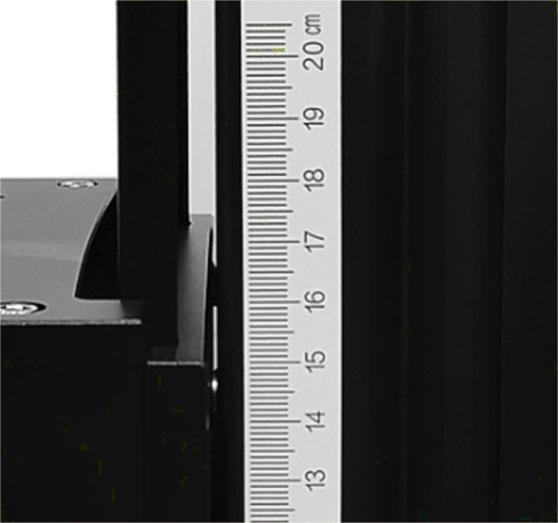

New Design	Quality Assurance	Clear Ruler

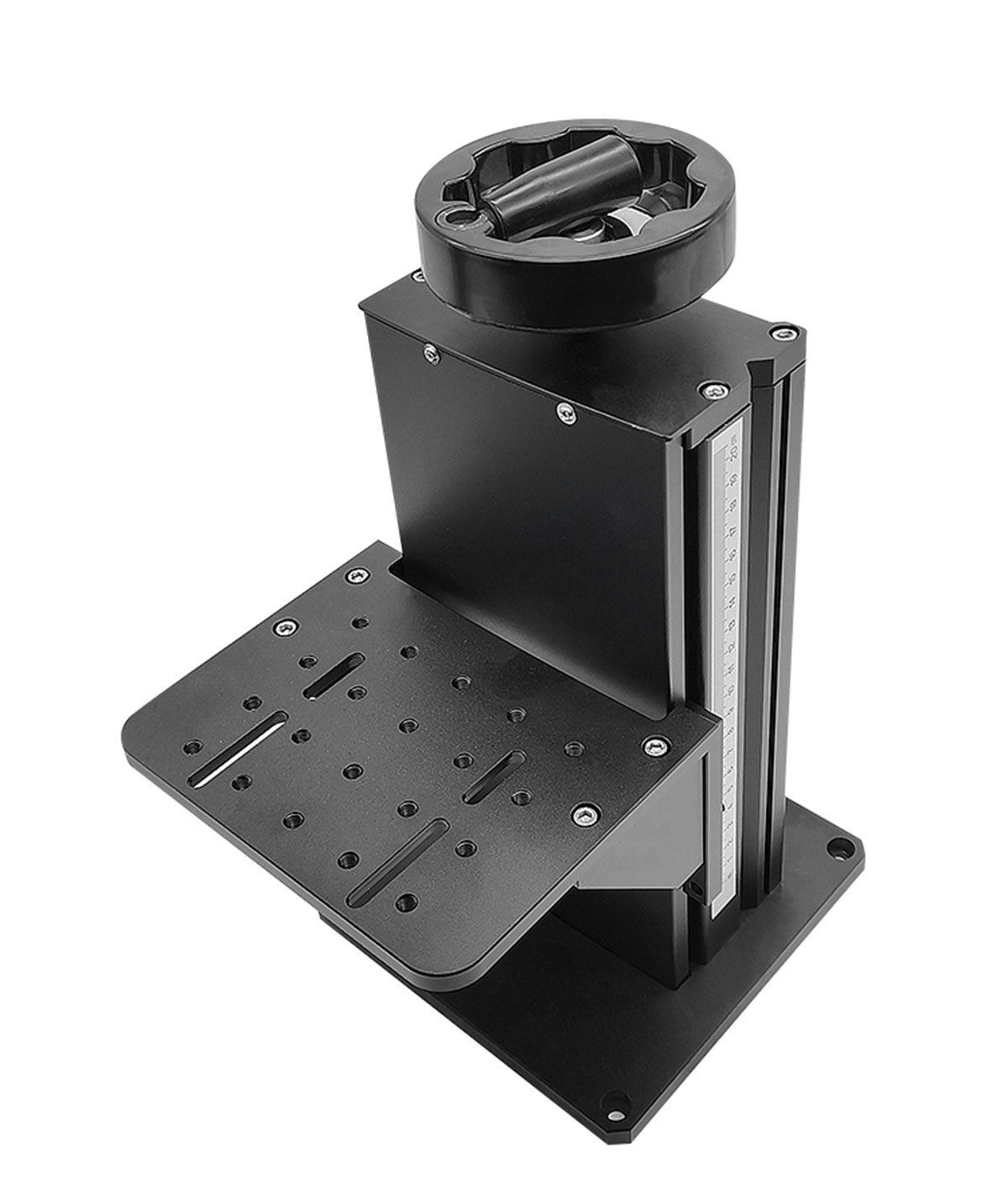

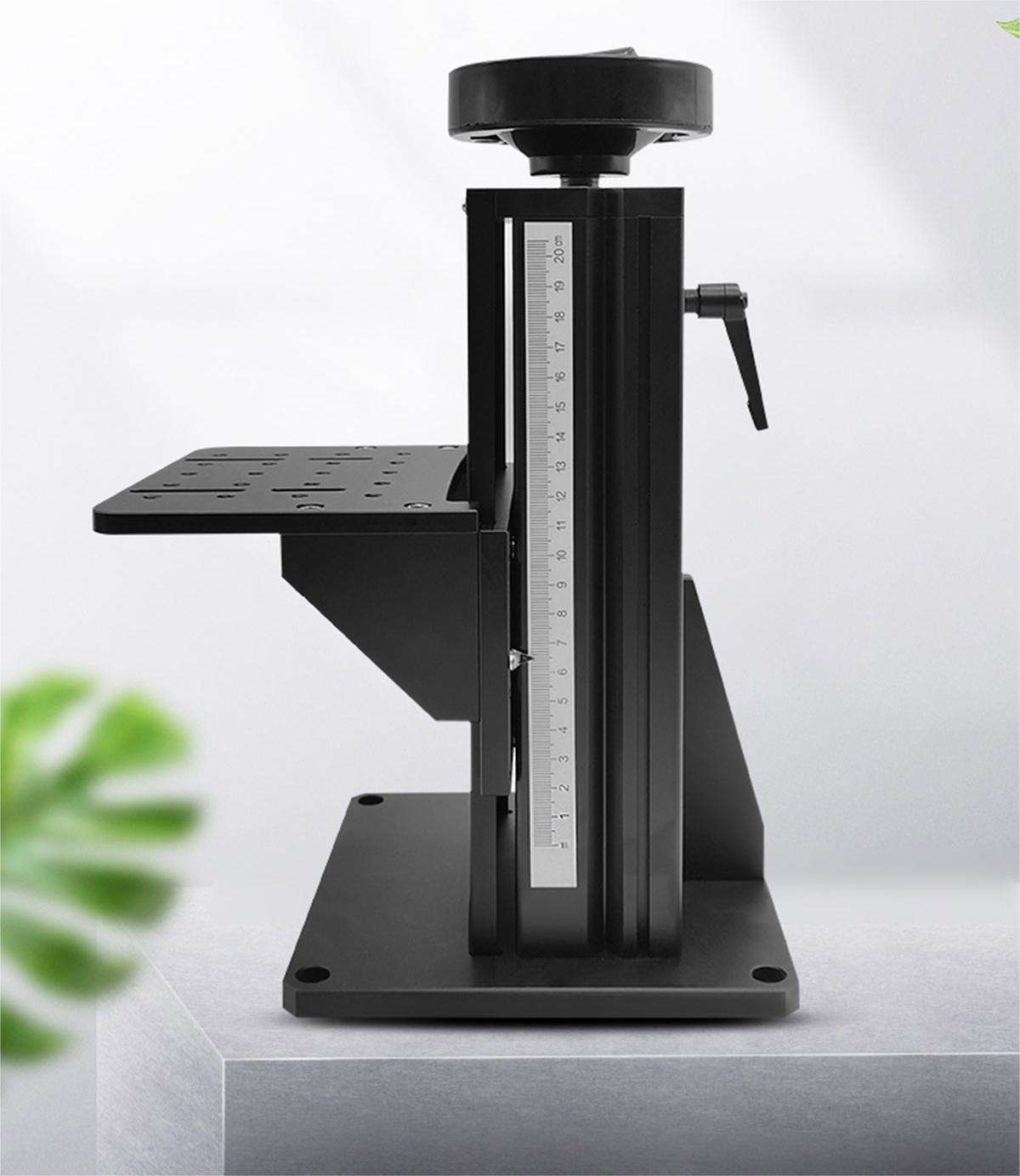

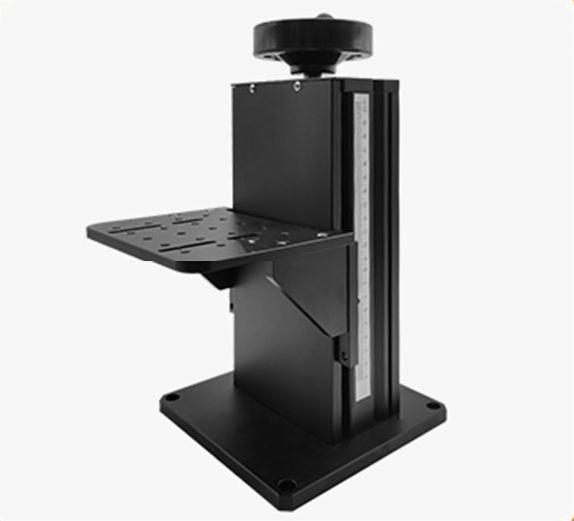

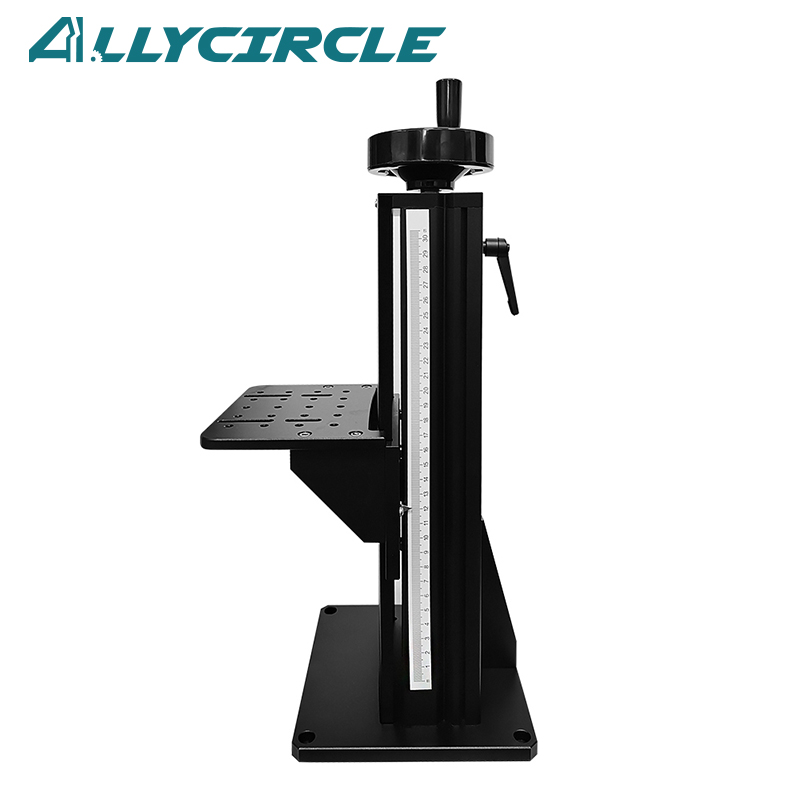

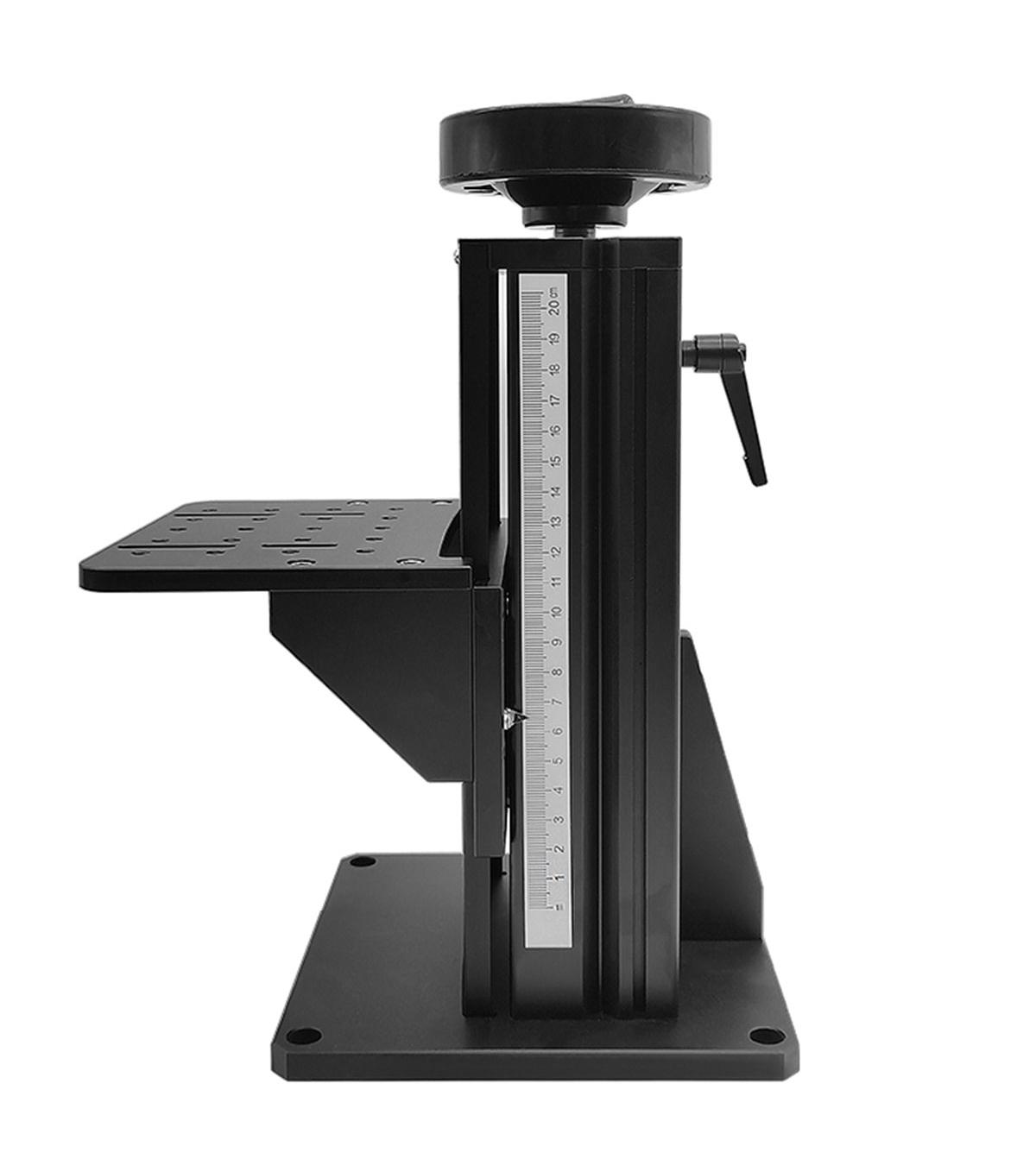

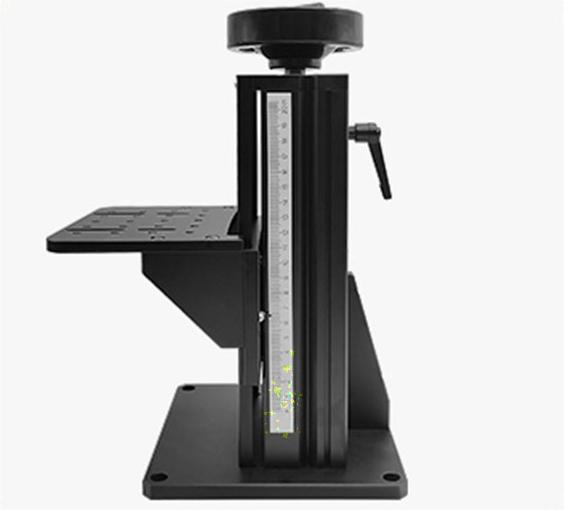

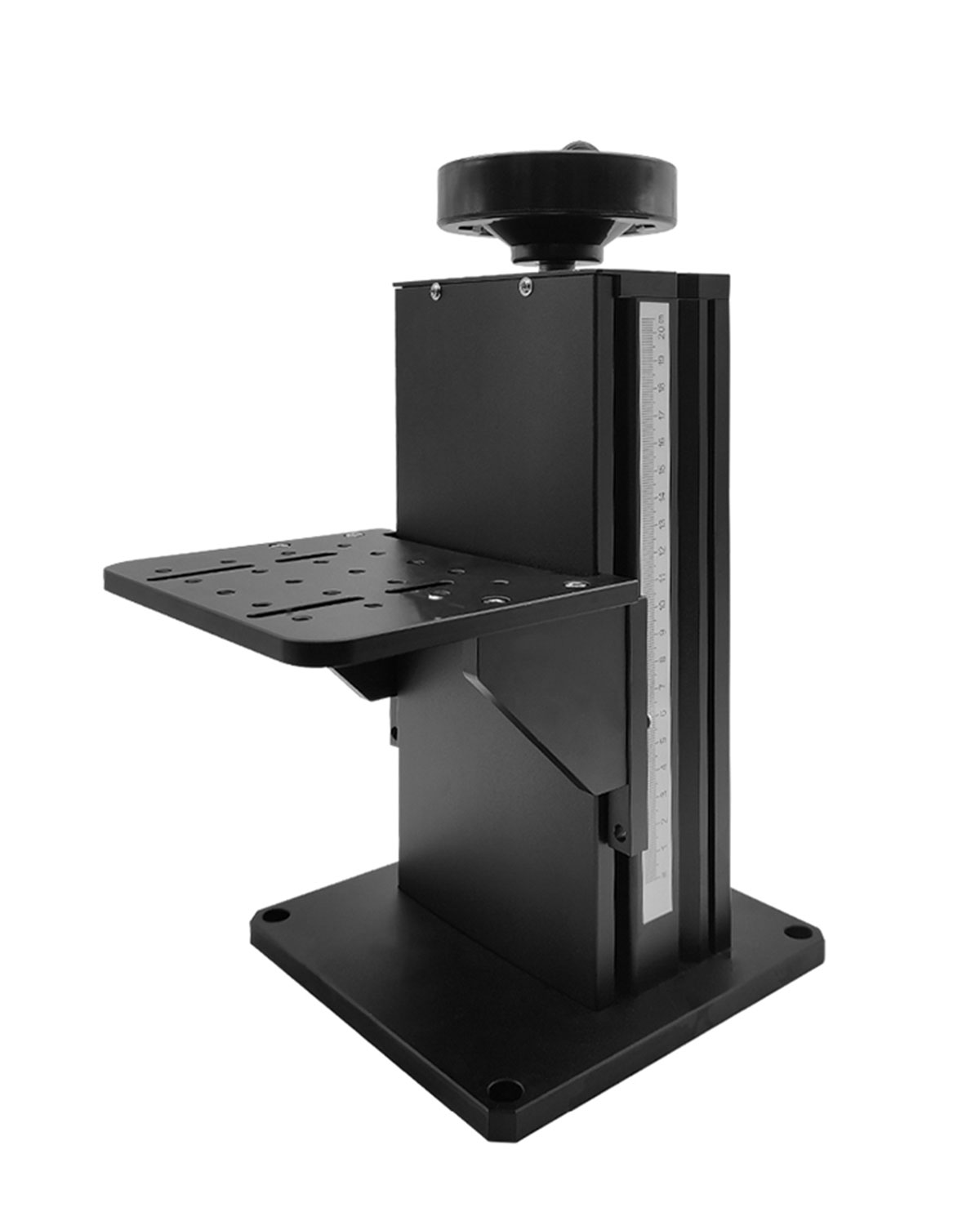

Product Display

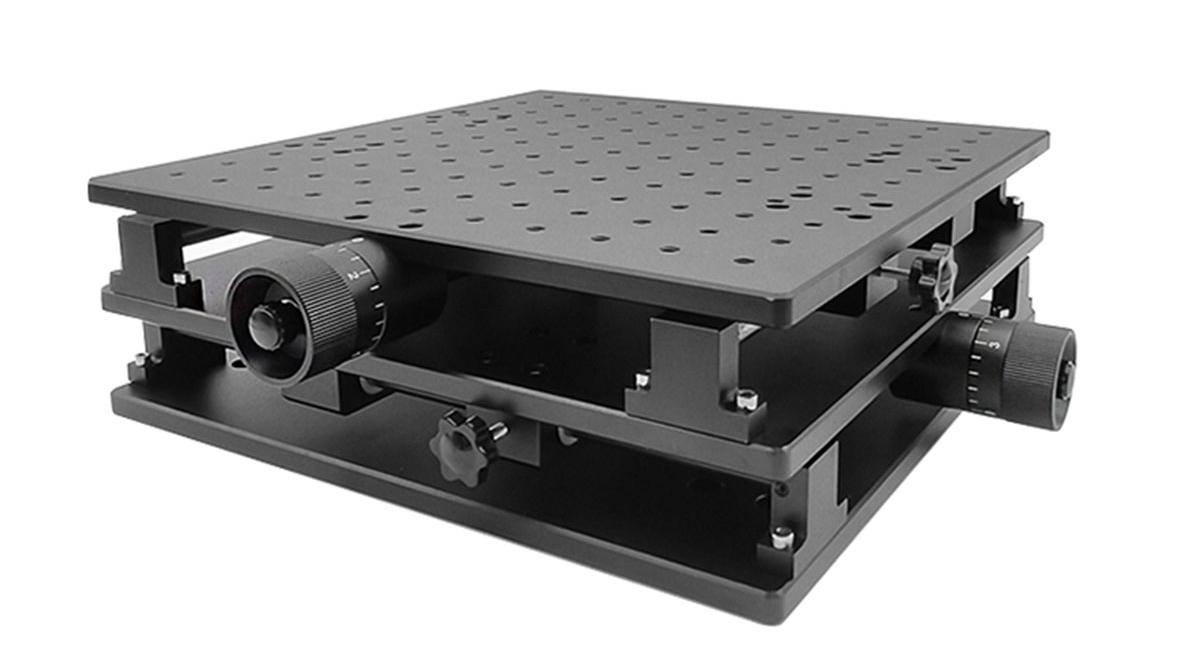

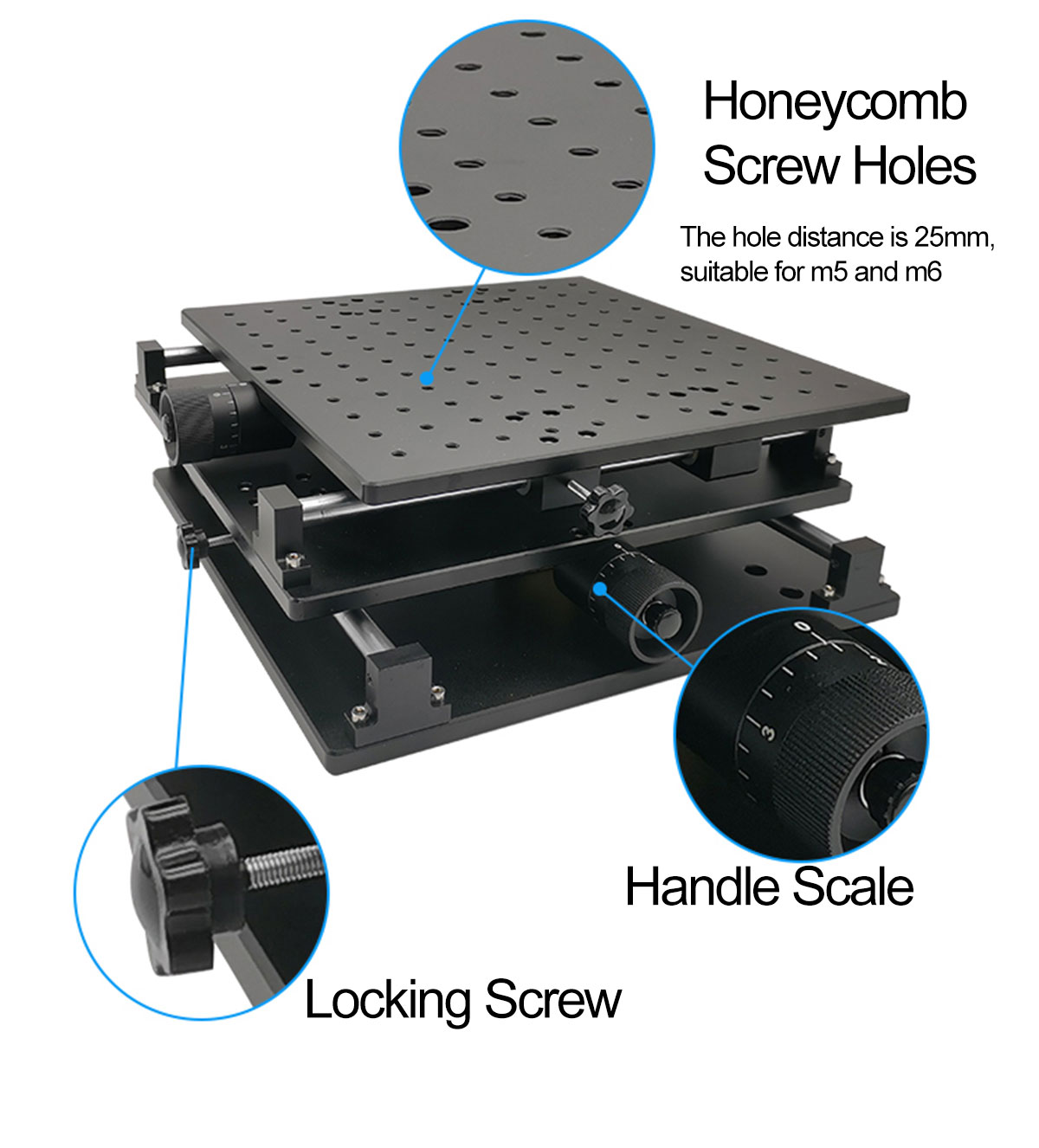

Mesa 300*300

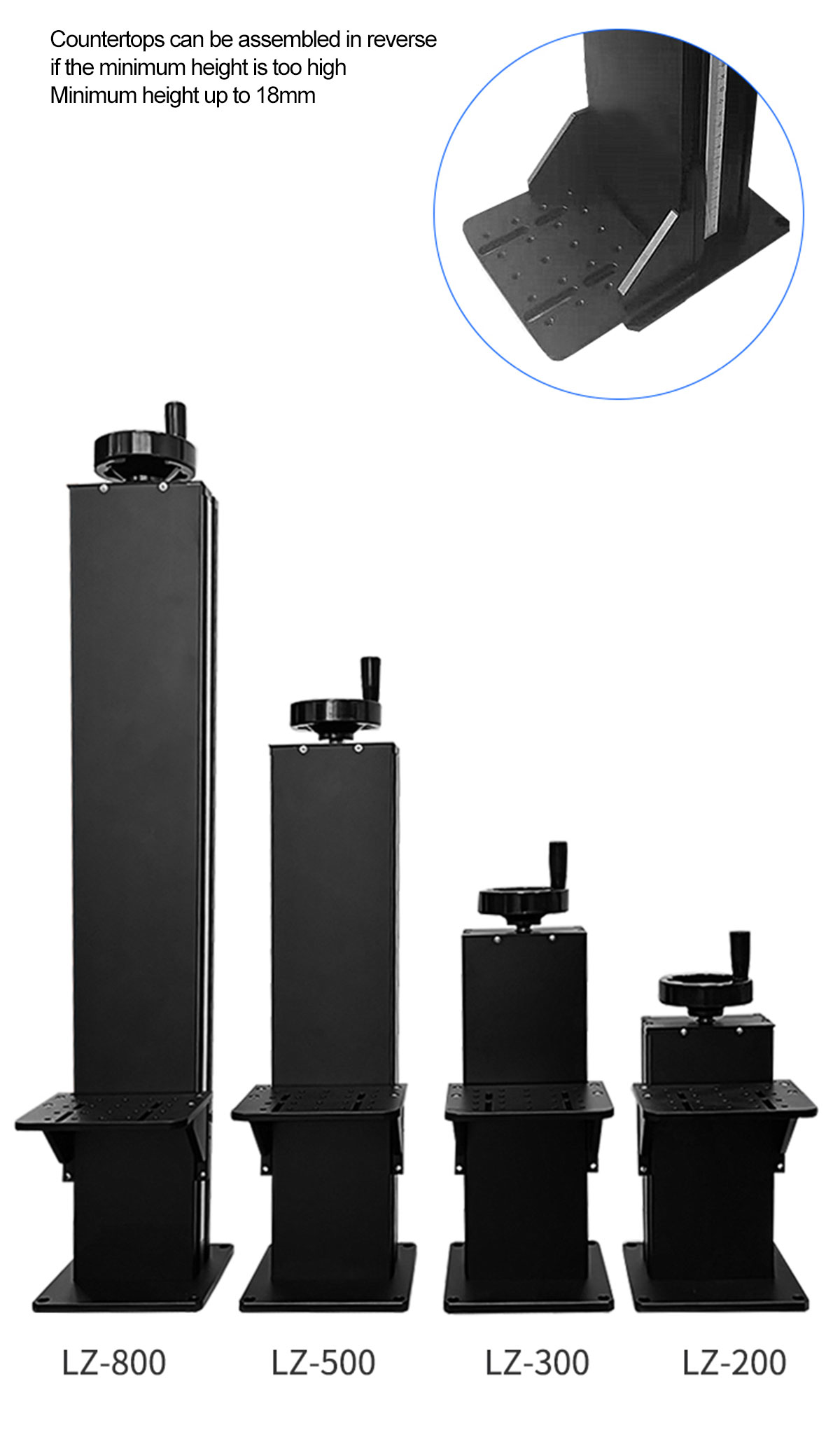

LZ(200 300 500 800)
