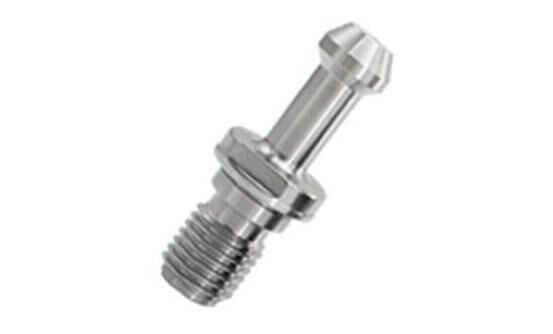

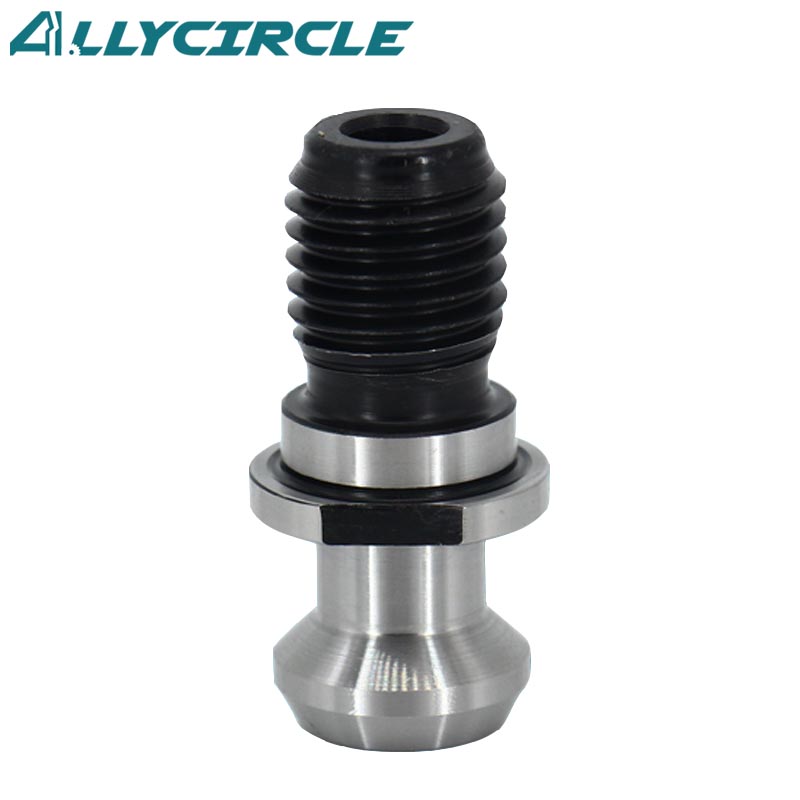

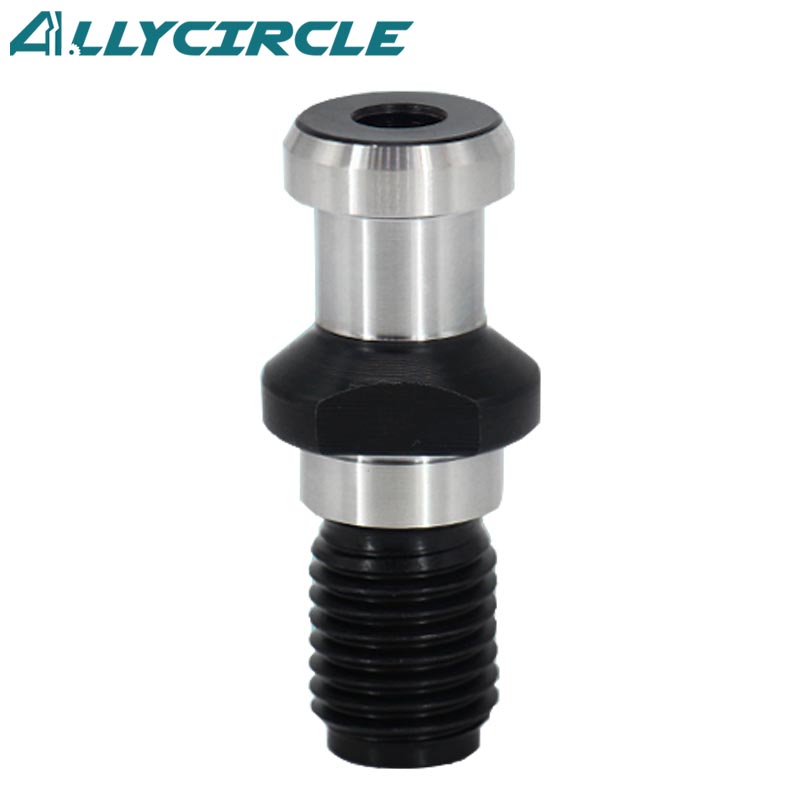

Pull Stud



HOME > PRODUCTS > Tool Holder and Clamp > Pull Stud > Pull Stud

Pull Stud

PRODUCT DESCRIPTION

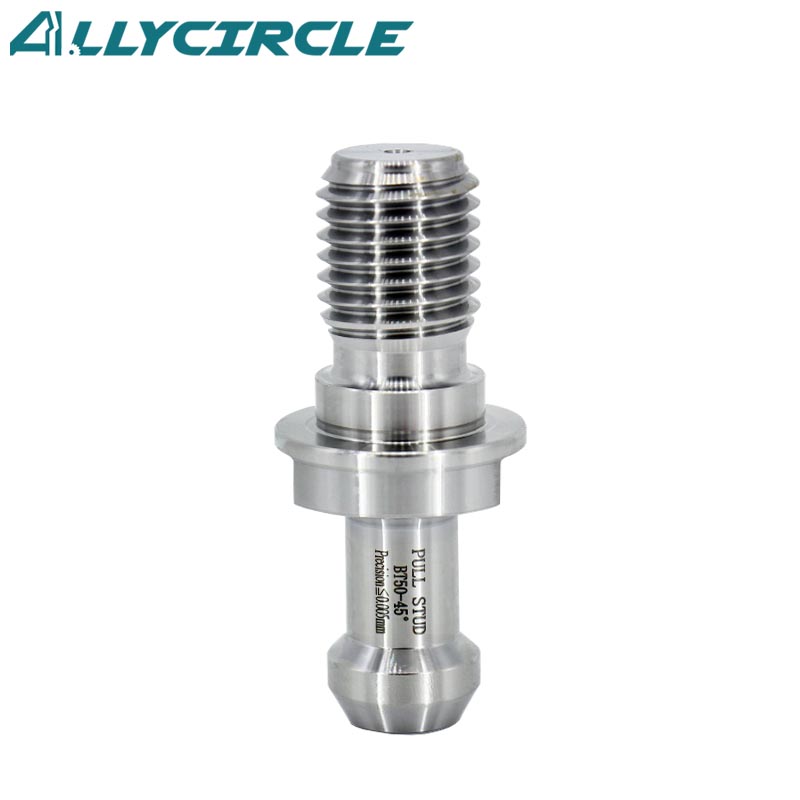

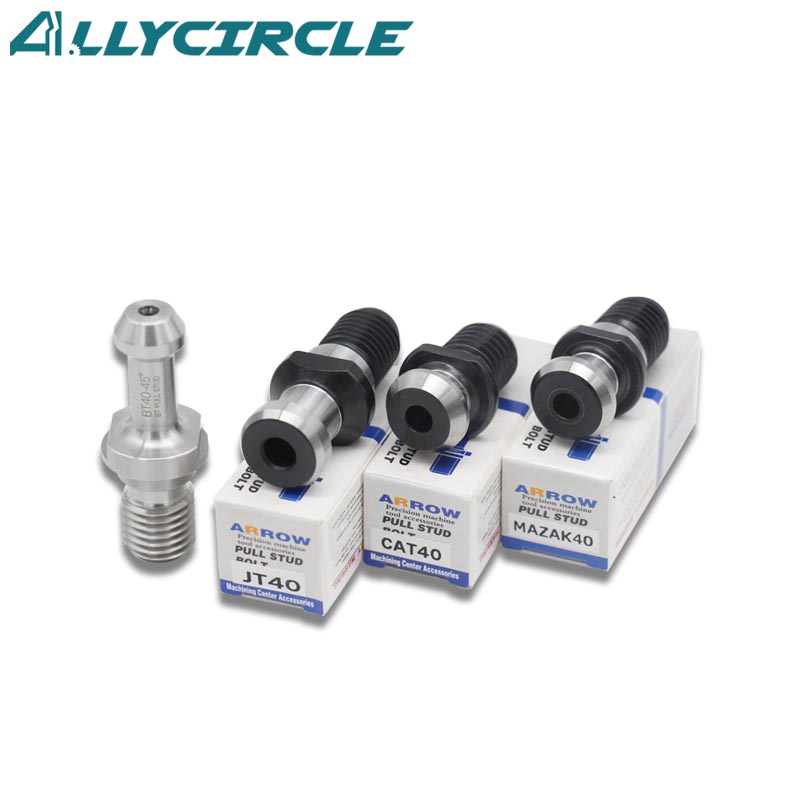

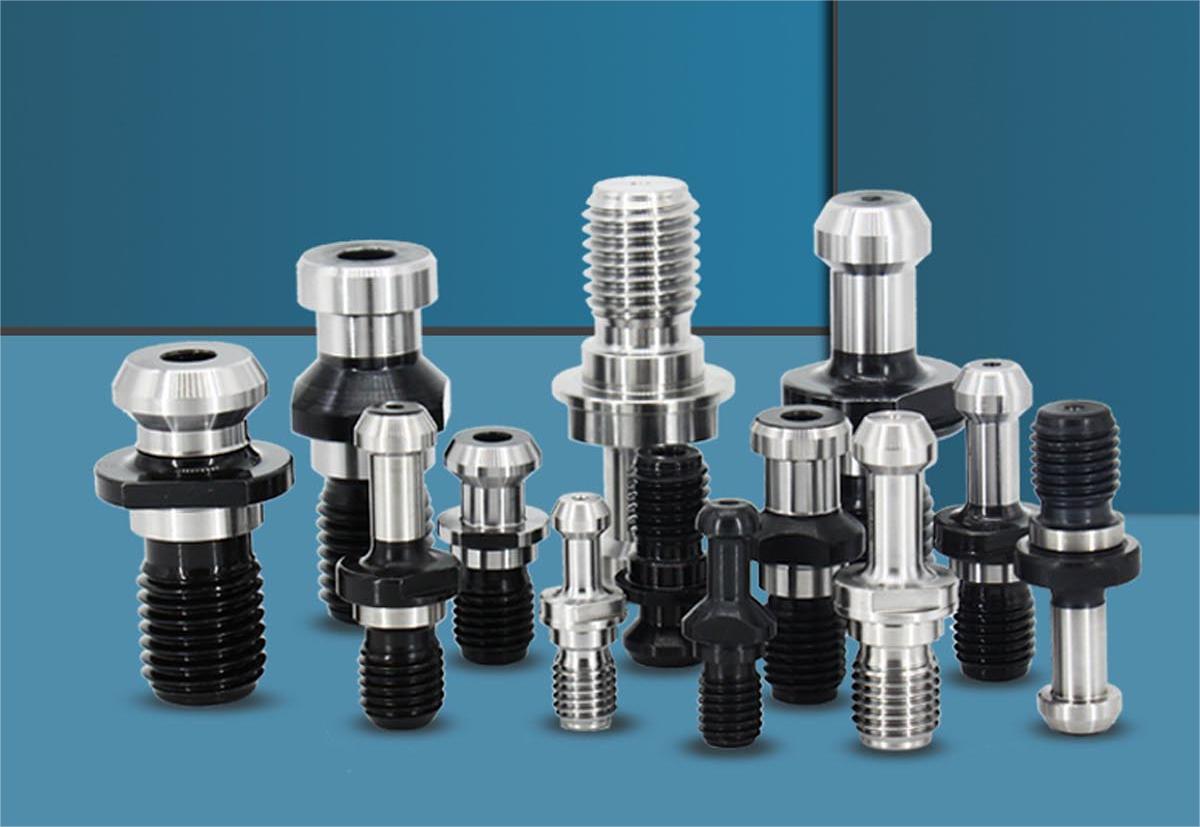

CNC Tool Holder Pull Stud

BT30/BT40/BT50

20CrMnTi material

Product Parameter

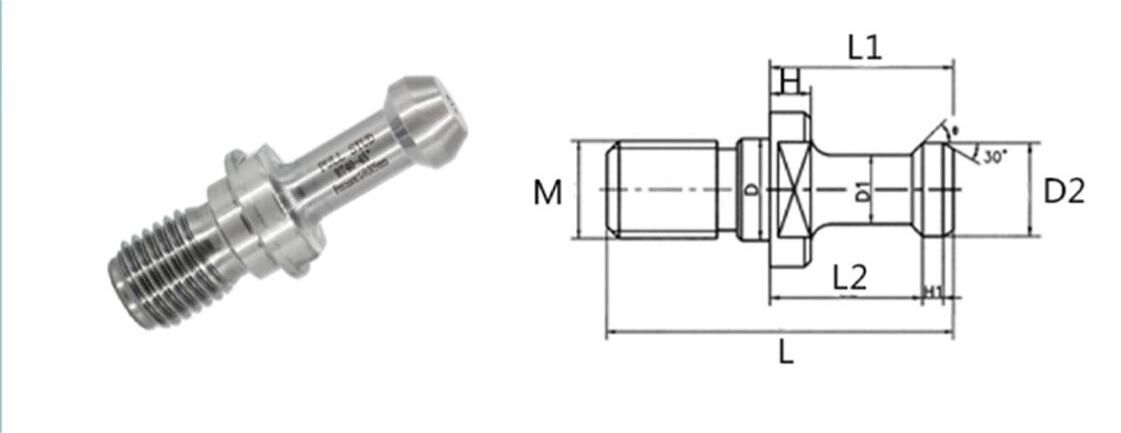

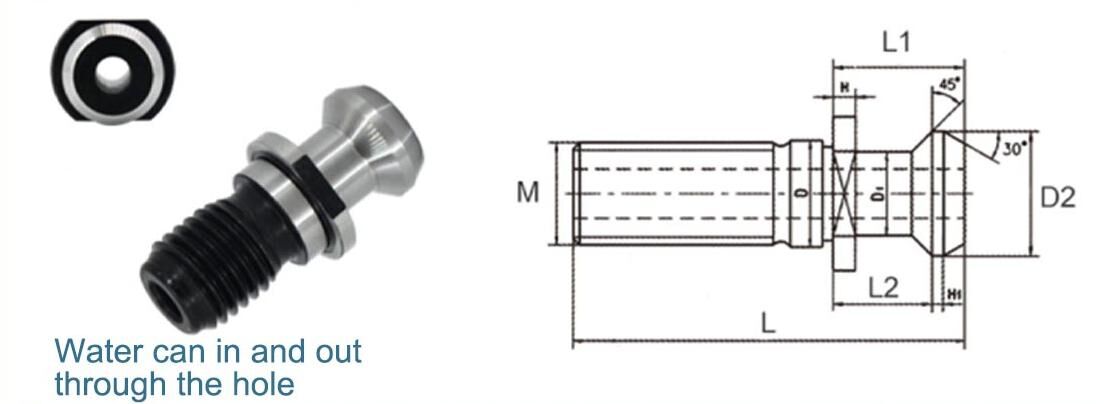

BT Pull Stud（With Hole/without Hole）

-

Model	L	L1	L2	D	D1	D2	H	H1	M	θ
BT30θ	43	23	18	12.5	7	11	5	2.5	M12	45°	60°	90°
BT40θ	60	35	28	17	100	15	6	3	M16	45°	60°	90°
BT50θ	85	45	35	25	17	23	10	5	M24	45°	60°	90°

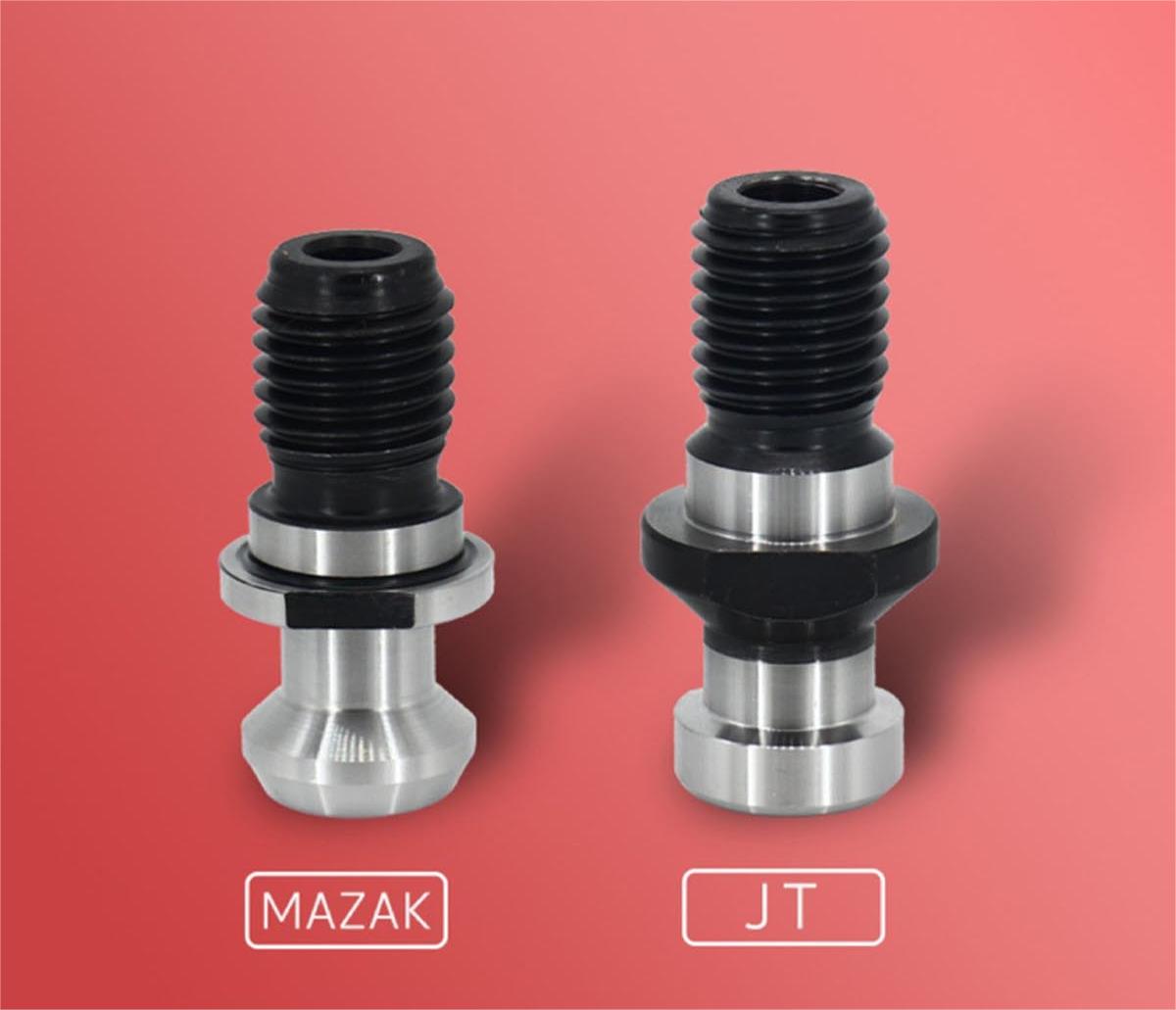

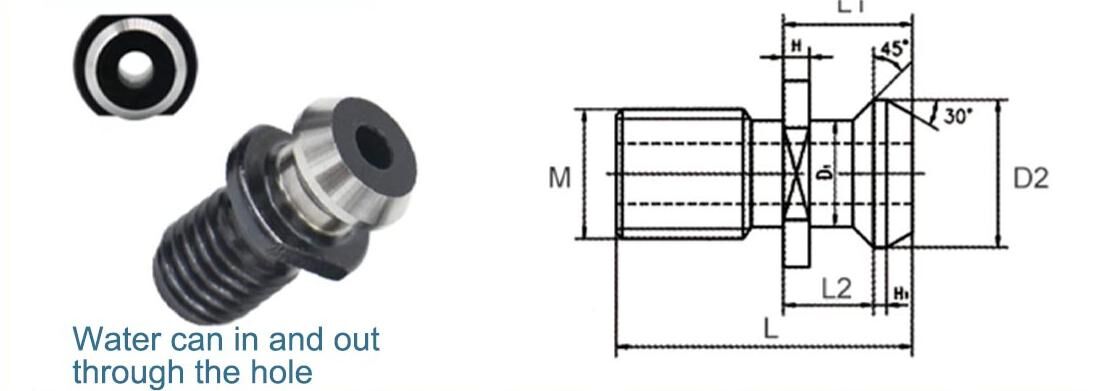

Mazak Pull Stud

Model	L	L1	L2	D	D1	D2	H	H1	M
MAZAK-BT40	44.1	19.1	14.02	17	12.45	18.8	3.05	1.52	M16
MAZAK-CT40	41.25	16.25	11.17	17	12.45	18.8	3.05	1.52	M16
MAZAK-BT50	65.2	25.2	17.7	25	20.83	28.96	5.05	2.54	M24

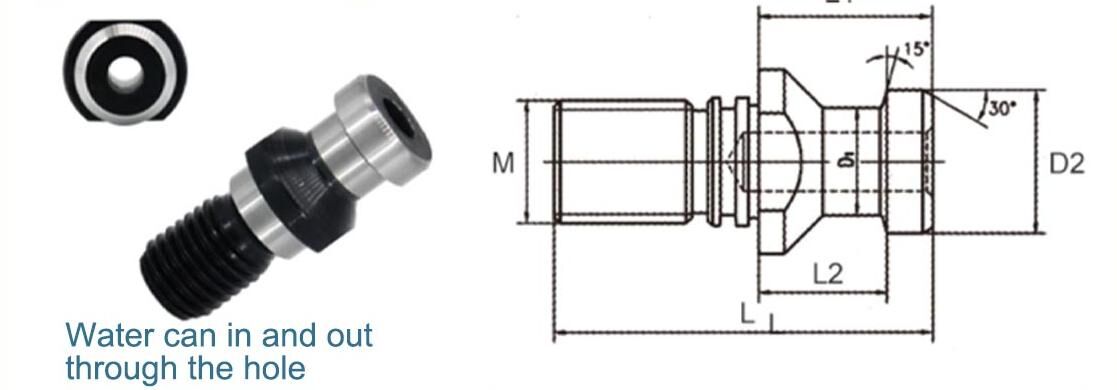

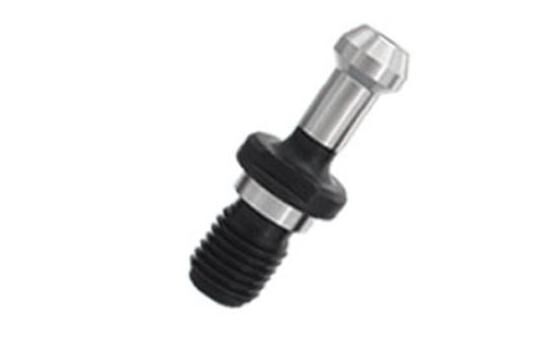

CAT Pull Stud（DIN69872-1988 Standard）

Model	L	L1	L2	D	D1	D2	M
CAT30	44	24	19	13	9	13	M16
CAT40	54	26	20	17	14	19	M16
CAT50	74	34	25	25	21	28	M24

CAT Pull Stud（ANSI/ASME B5.50-1985 Standard）

Model	L	L1	L2	D	D1	D2	M
CAT30	44	24	19	13	9	13	M16
CAT40	54	26	20	17	14	19	M16
CAT50	74	34	25	25	21	28	M24

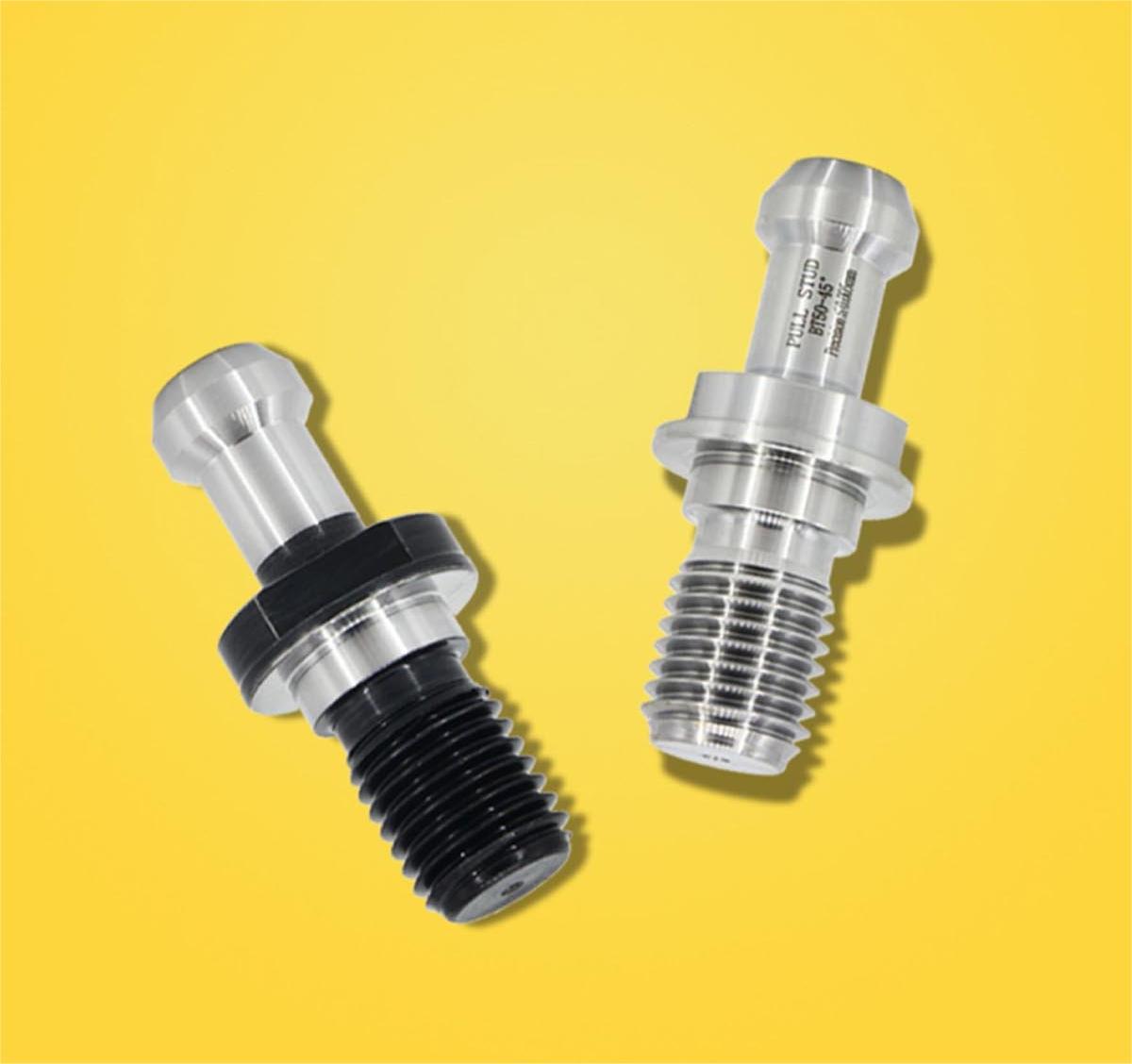

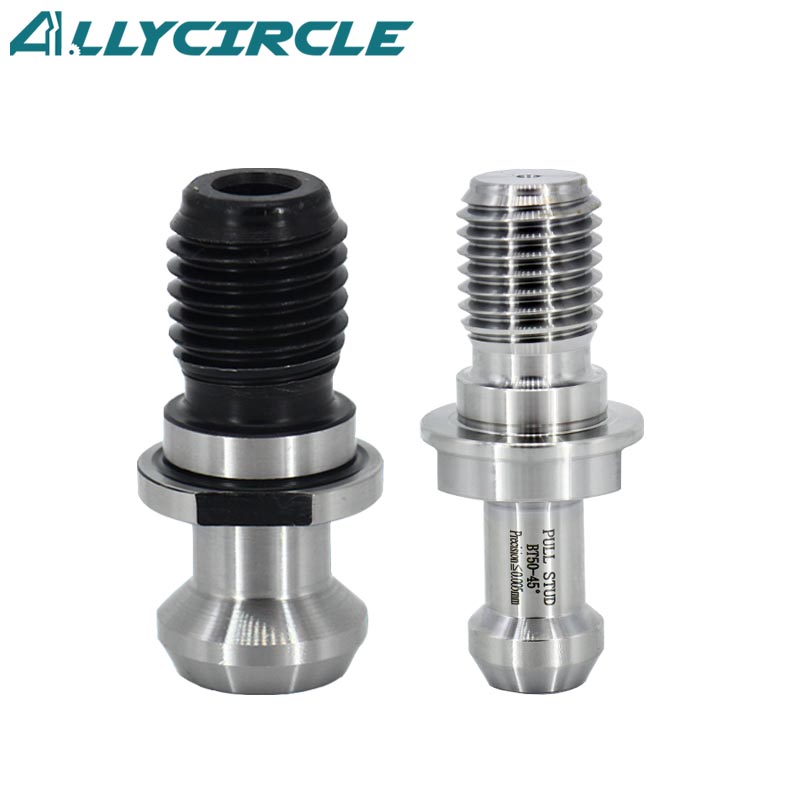

BT High Accuracy Silver	BT 45°60°90° Black

Quenching procedure

strengthened the hardness

Quality 20CrMnTi

Solid forging stable quality

high concentricity
