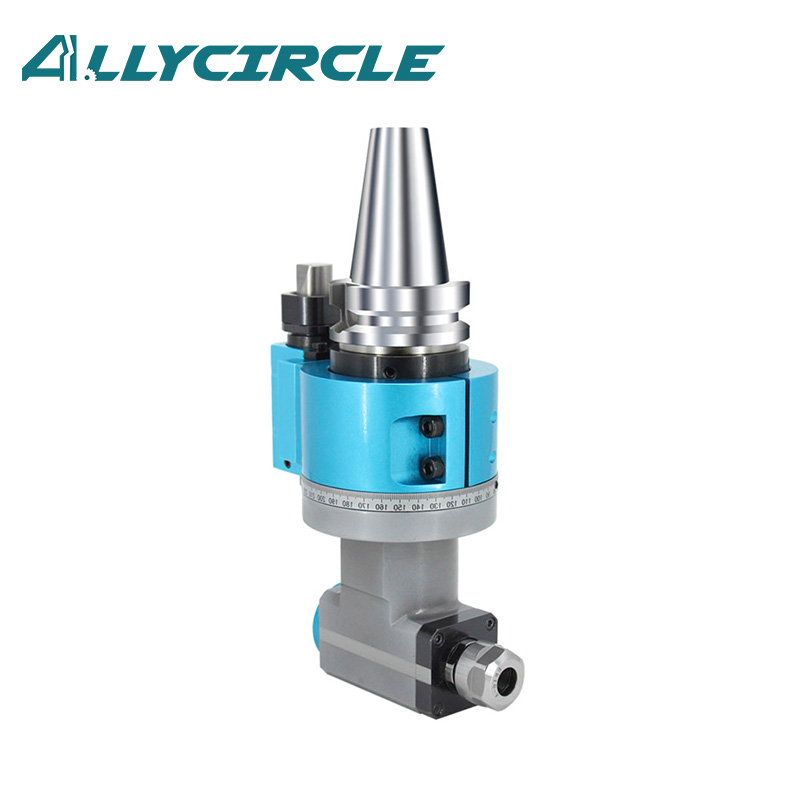

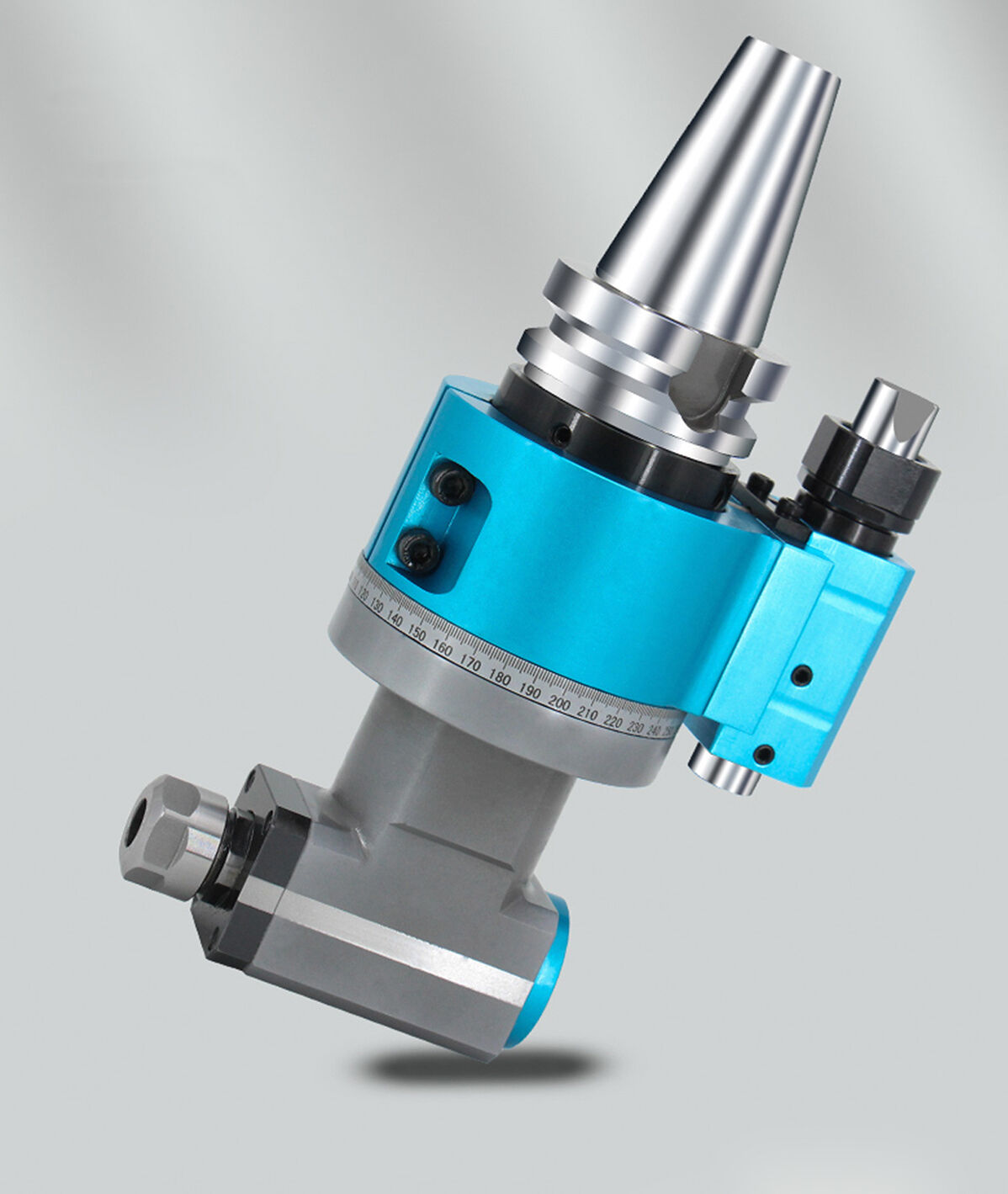

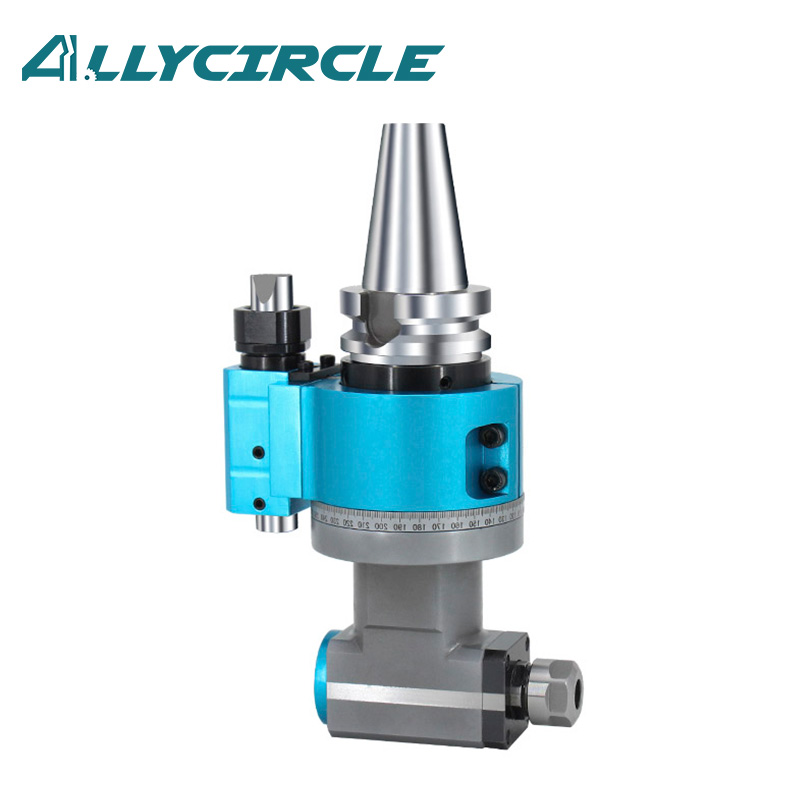

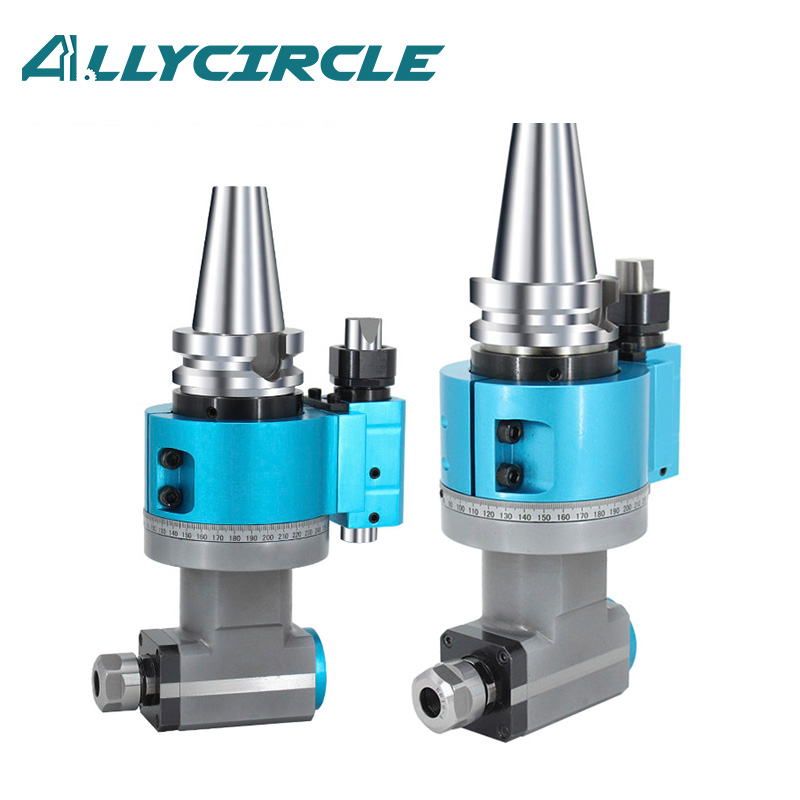

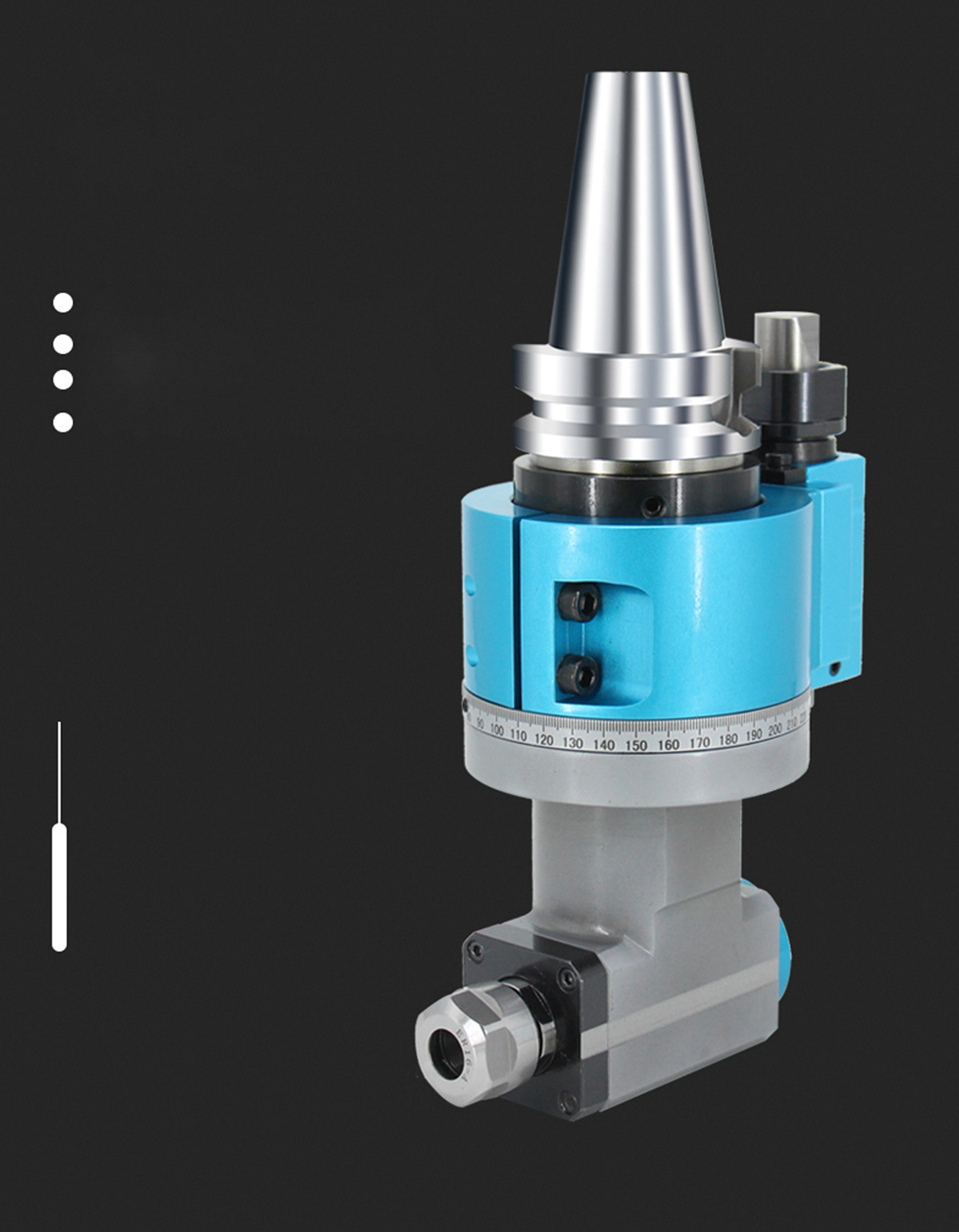

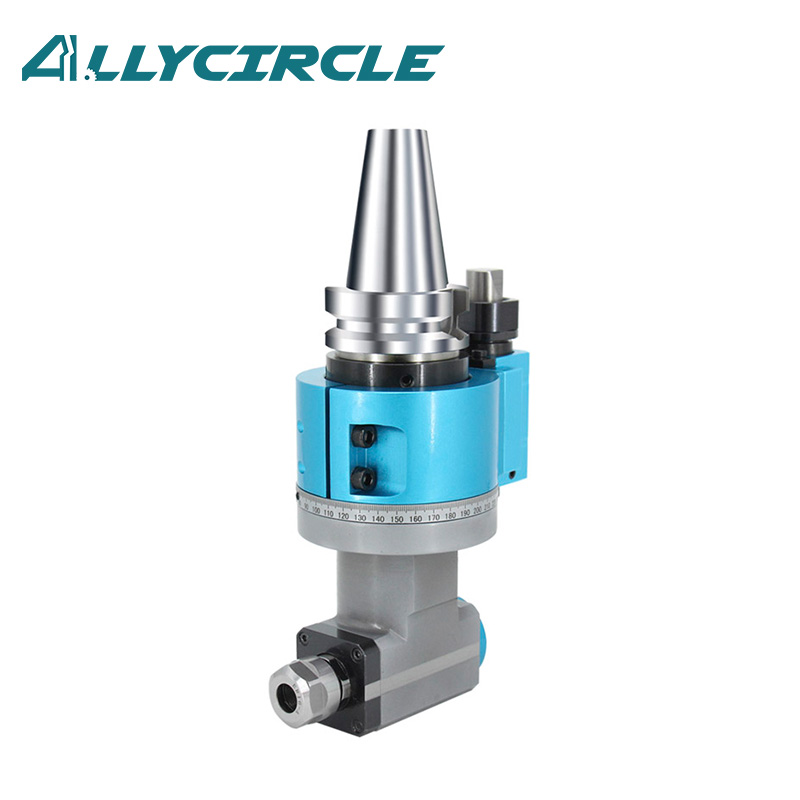

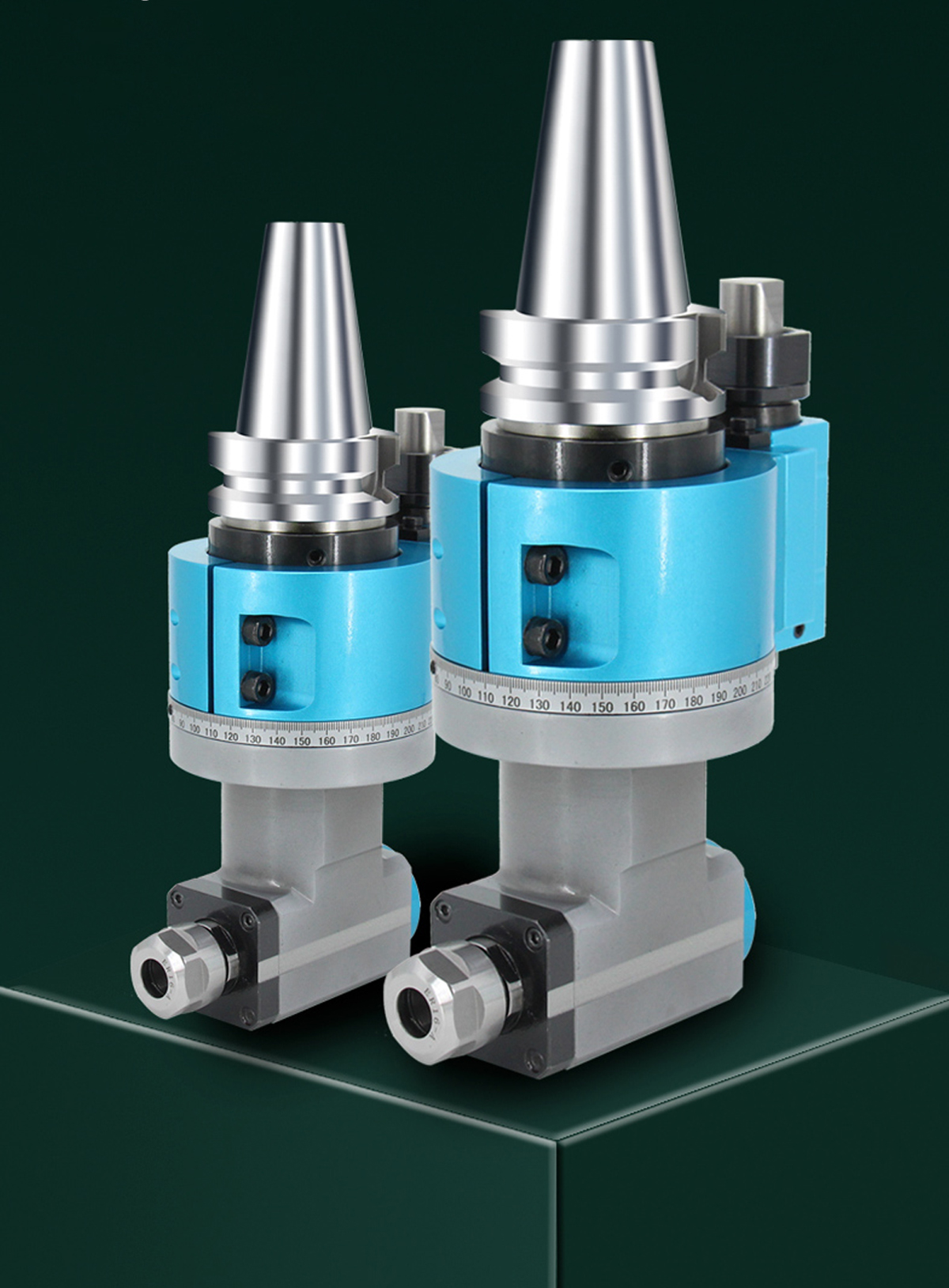

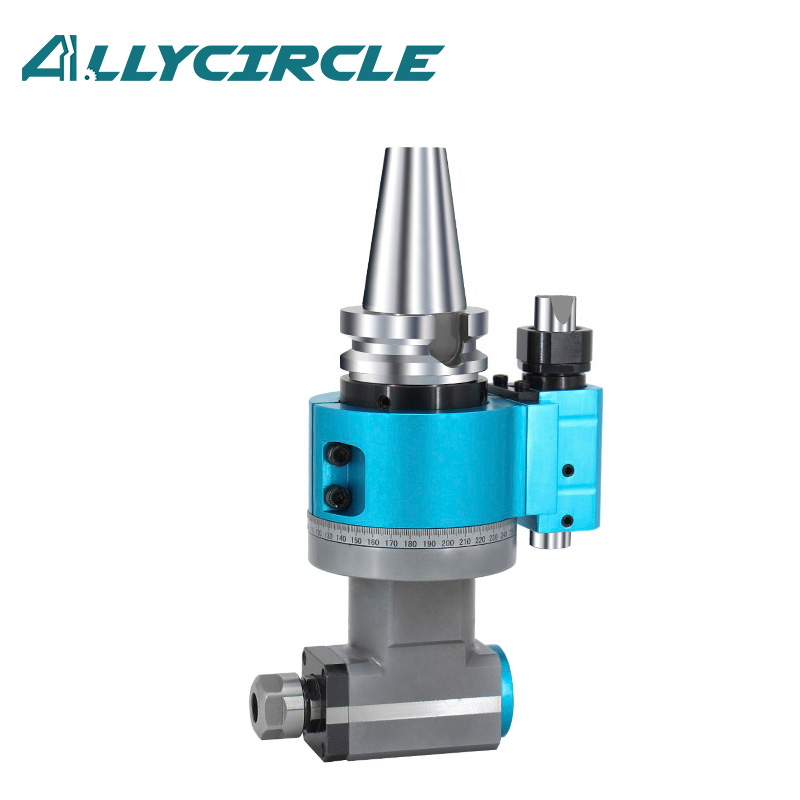

CNC Angle Milling Head

ANGLE HEAD

Lightweight 90 degrees

COREFUNCTIONS

Drilling

milling and tapping

Side processing tool

Do what regular spindles can't

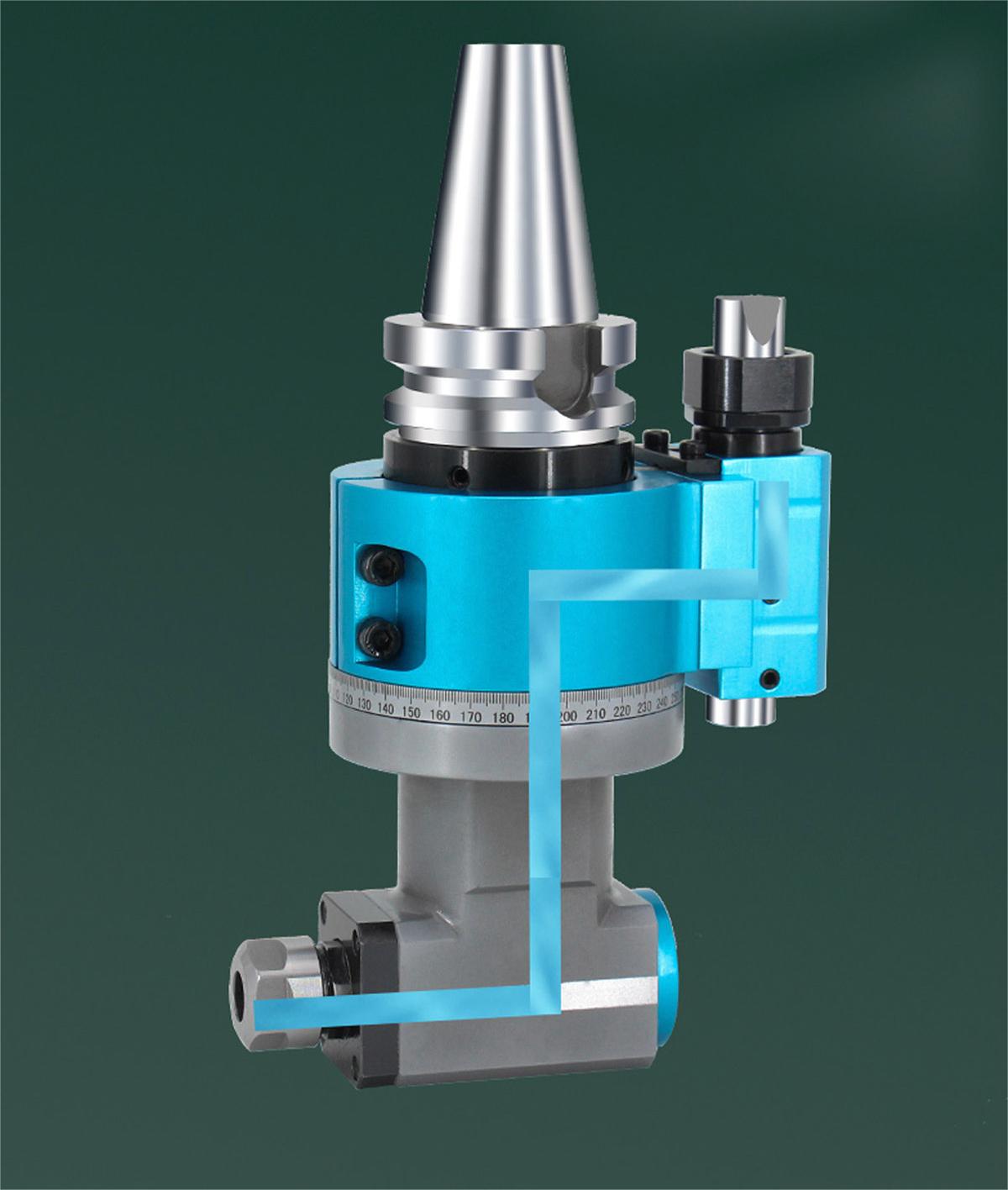

Corresponding to the tip of the oil

Angle head body tool tip cooling

  Max.1Mpa  Positioning block supply cutting fluid

Coolable body

Vertical and Horizontal dual use

Side Drilling Cutting

Be applicable

Vertical/Horizontal CNC

CNC gantry milling machine

• The body design is simple and the structure is sturdy

• Imported high precision angular contact ball bearings

• High ground gear

• Easy to install

Quality Assurance

Four advantages

【Japanese high-precision angular contact ball bearings】

【German high precision sector gear】

【Unique sealing structureDustproof and waterproof effect is more significant】

【Corresponding to the tip of the oil Angle body tip cooling】

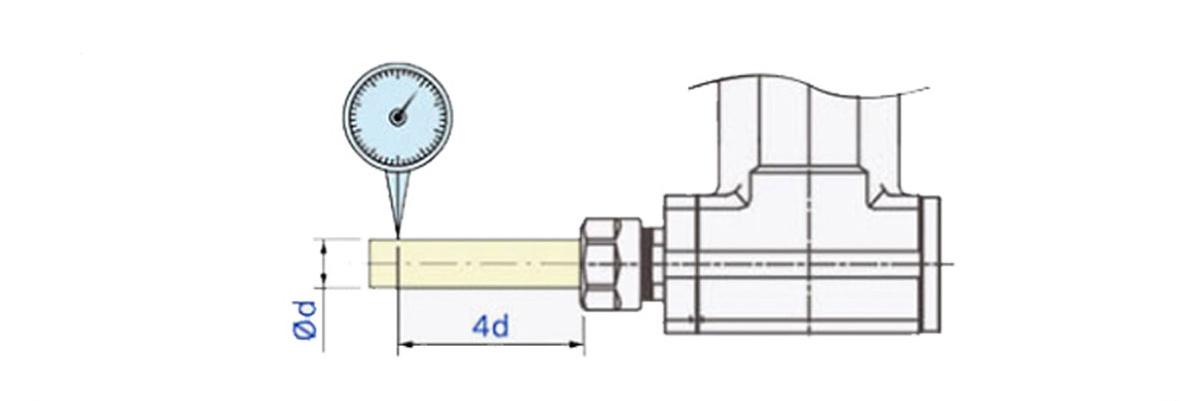

All angle heads have passed precision test androtation test.

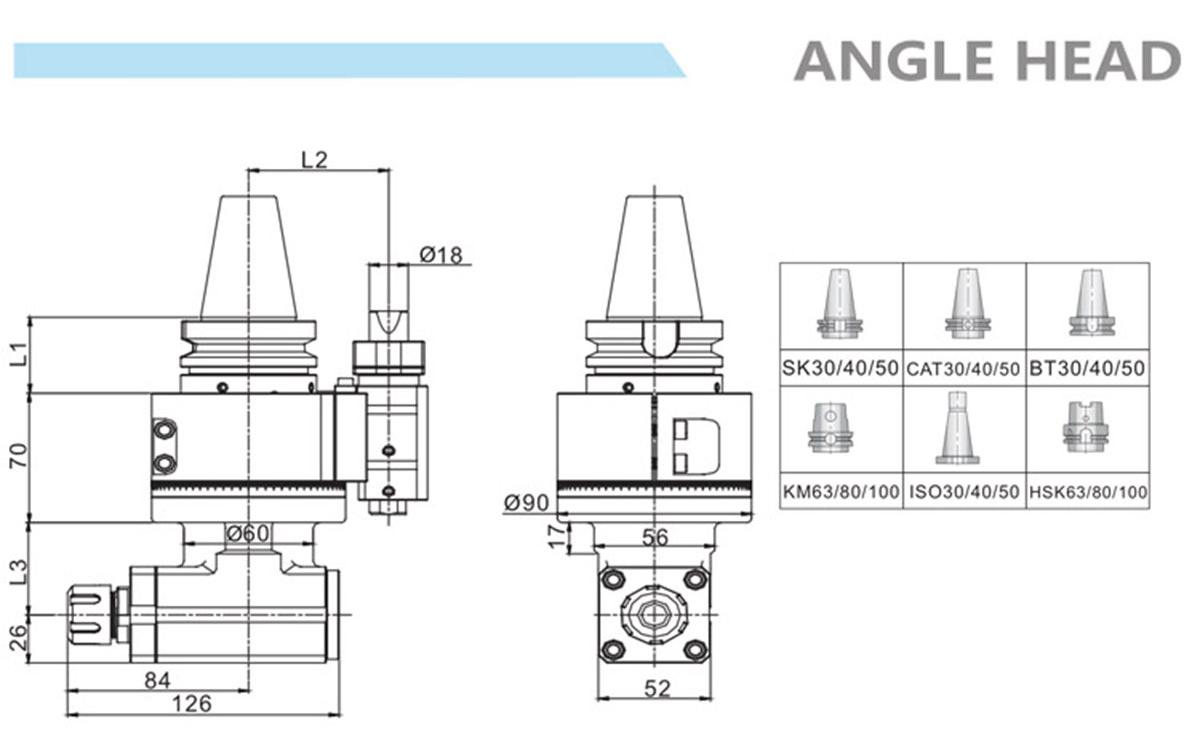

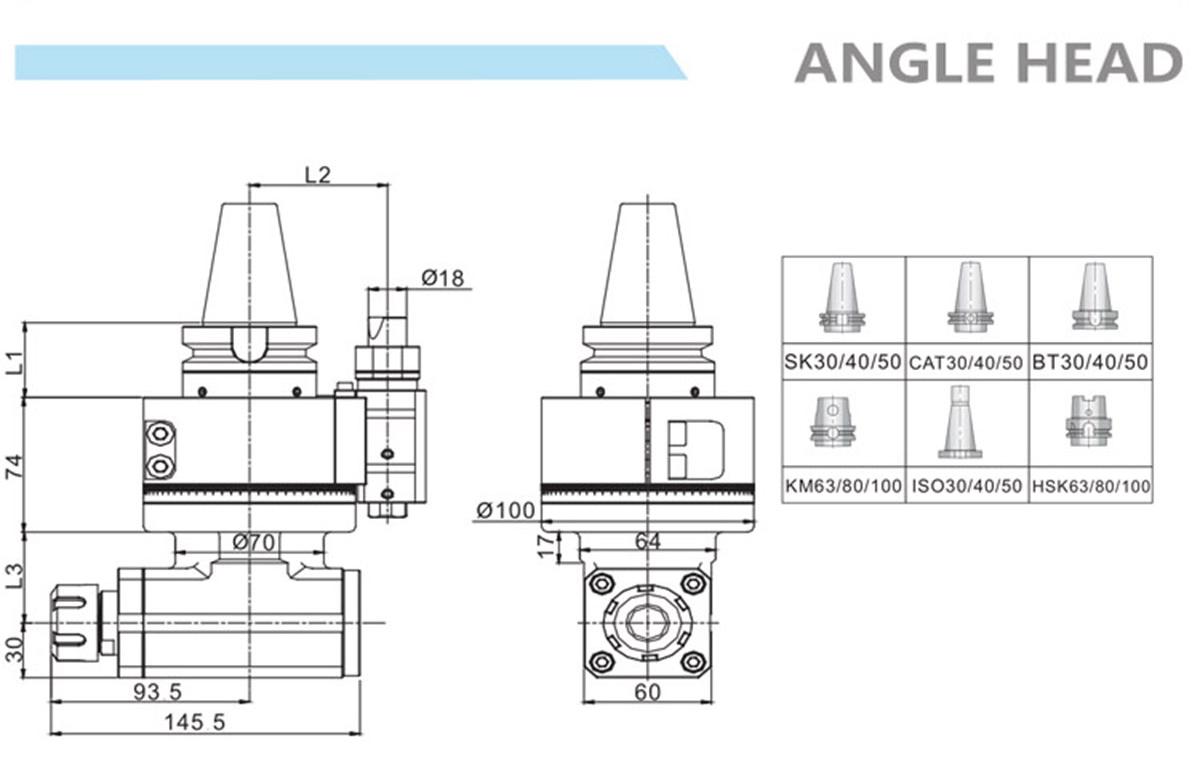

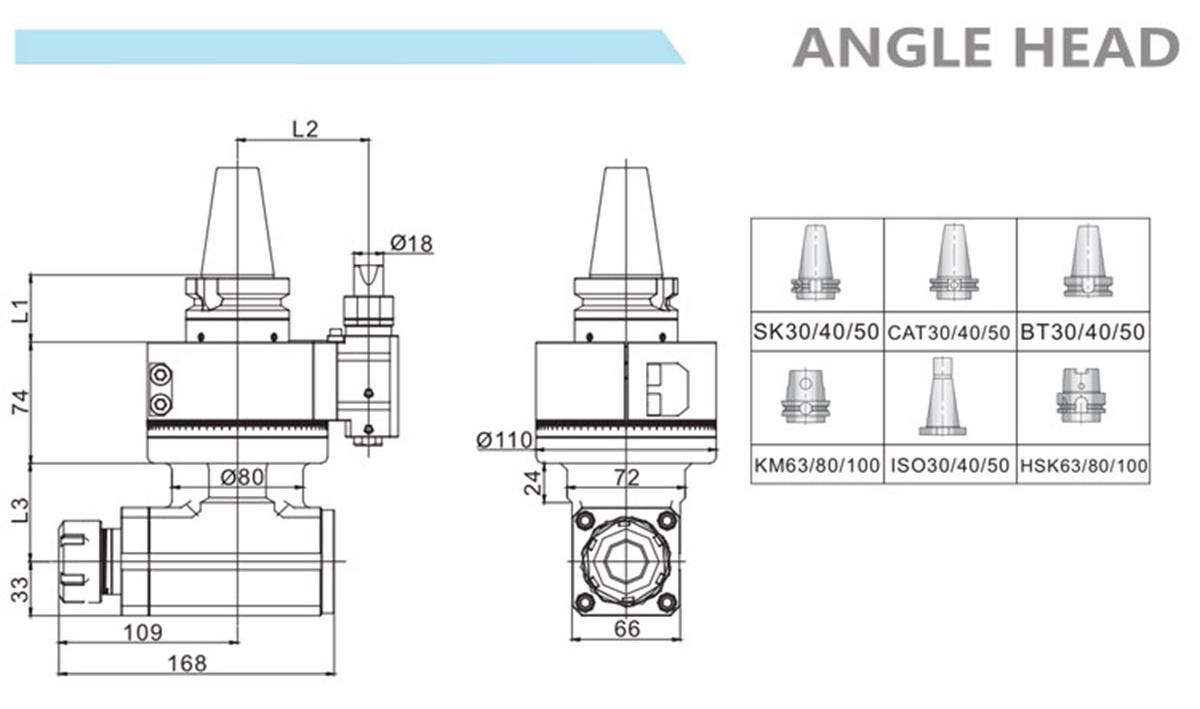

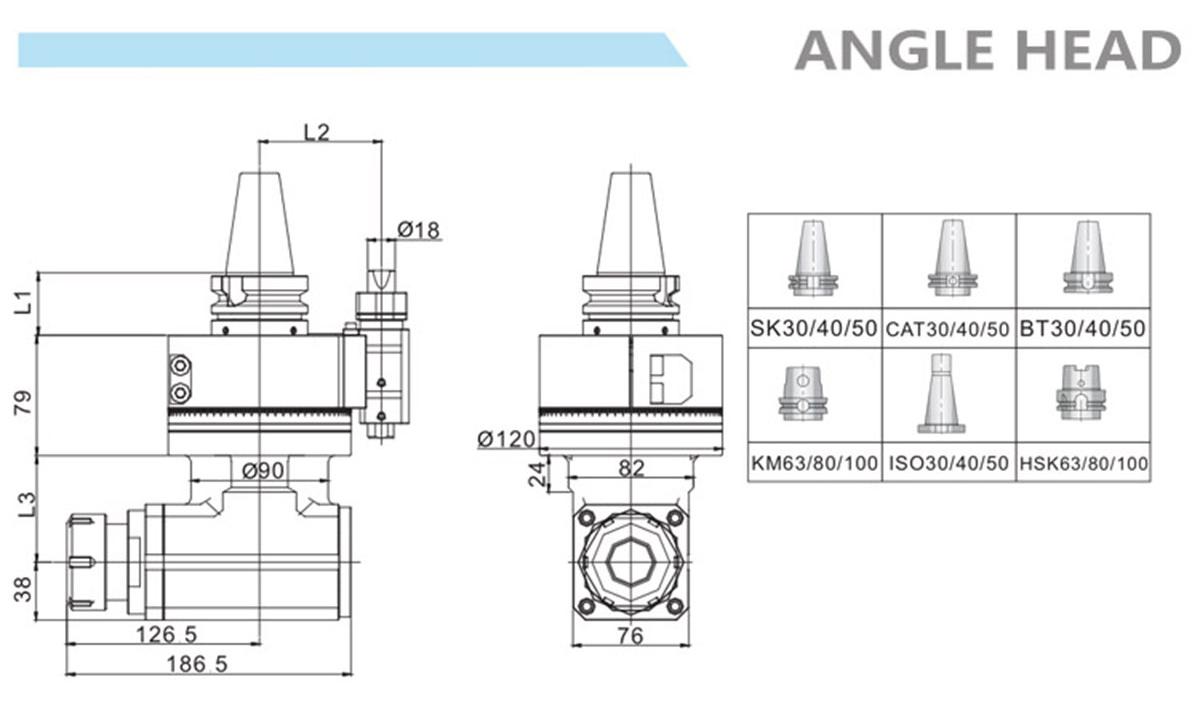

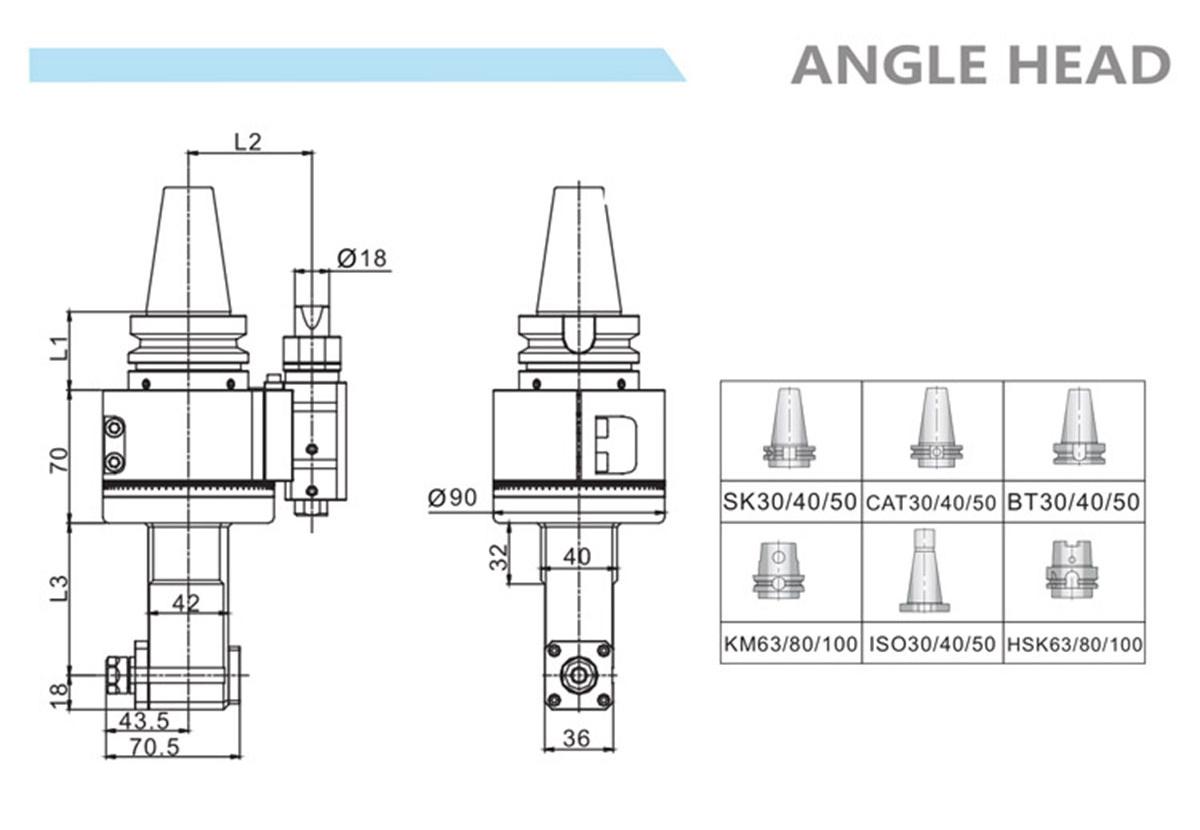

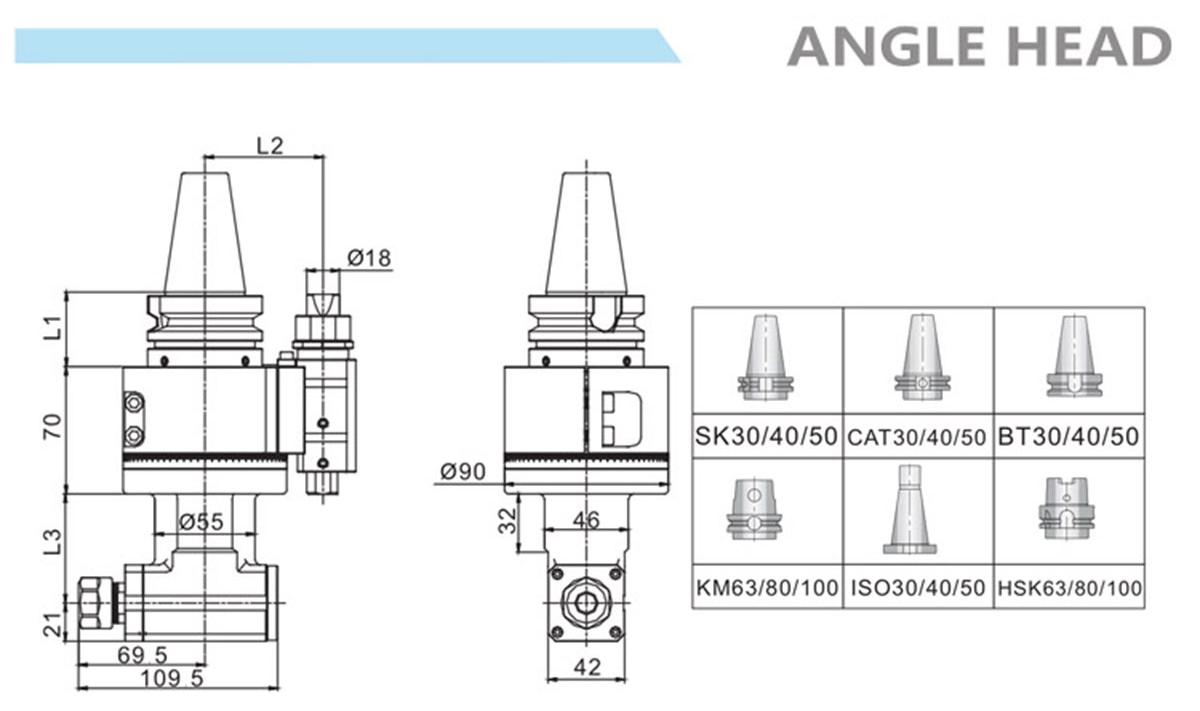

AG90-ER 11

AG90-ER16

AG90-ER20

AG90-ER25

AG90-ER32

AG90-ER40
