Complete list of spindle motor plugs

Spindle motor original factory aviation plug

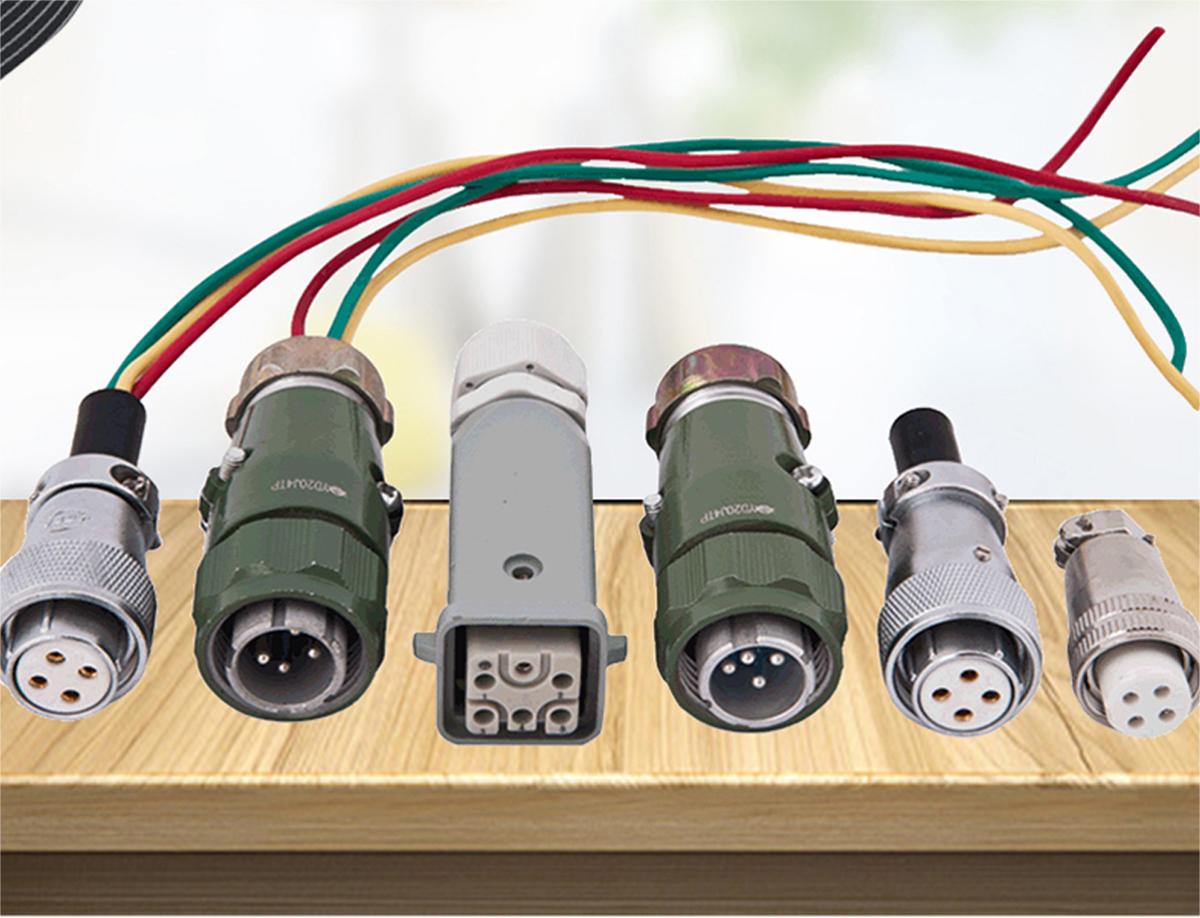

Full range of aviation plugs

Diagram of the corresponding socket for the cable

Silver plugSmall silver plug/Large silver plug/Square plug	Cable color	Corresponding socket
	Red	1
	Green	2
	Yellow	3
	No welding	4

Green plug Small silver plug/Large silver plug/Square plug	Cable color	Corresponding socket
	Red	1
	Green	2
	Yellow	3
	No welding	4

Spindle motor model standard configuration

Aviation plug

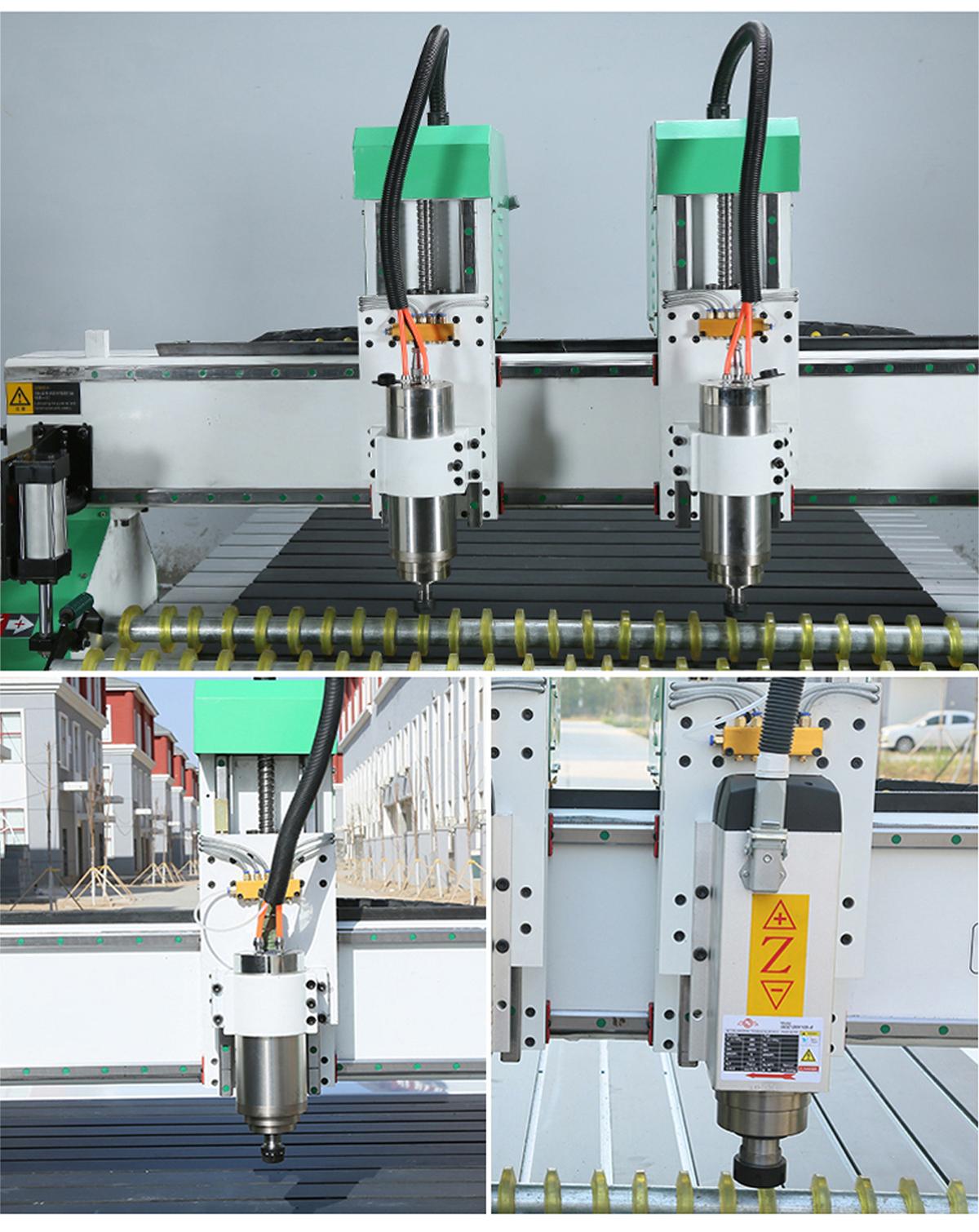

Suitable for woodworking, advertising and stone engraving machines

Engraving machine special aviation plug

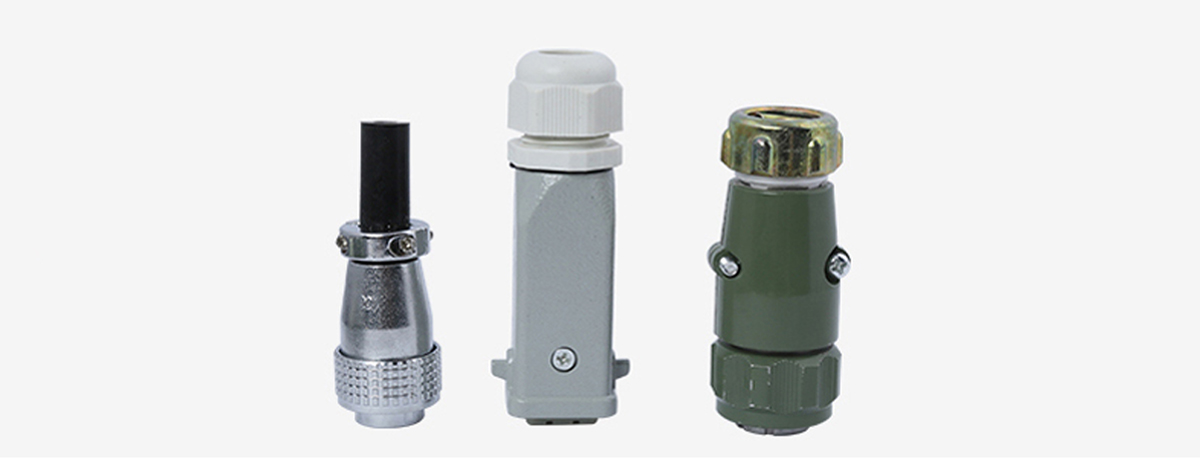

Product display

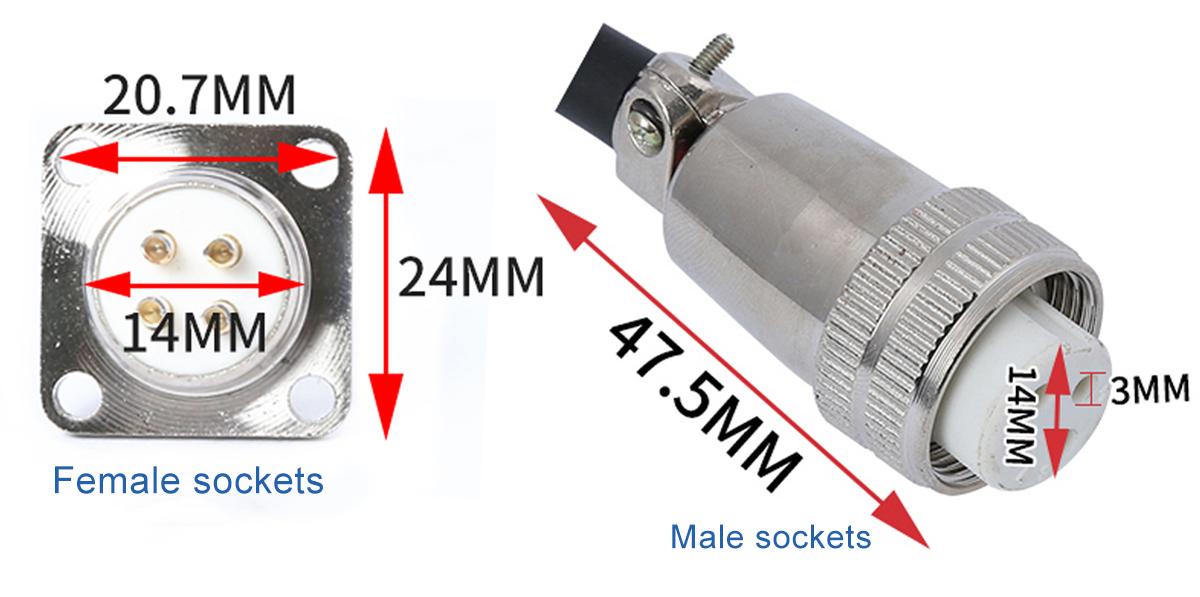

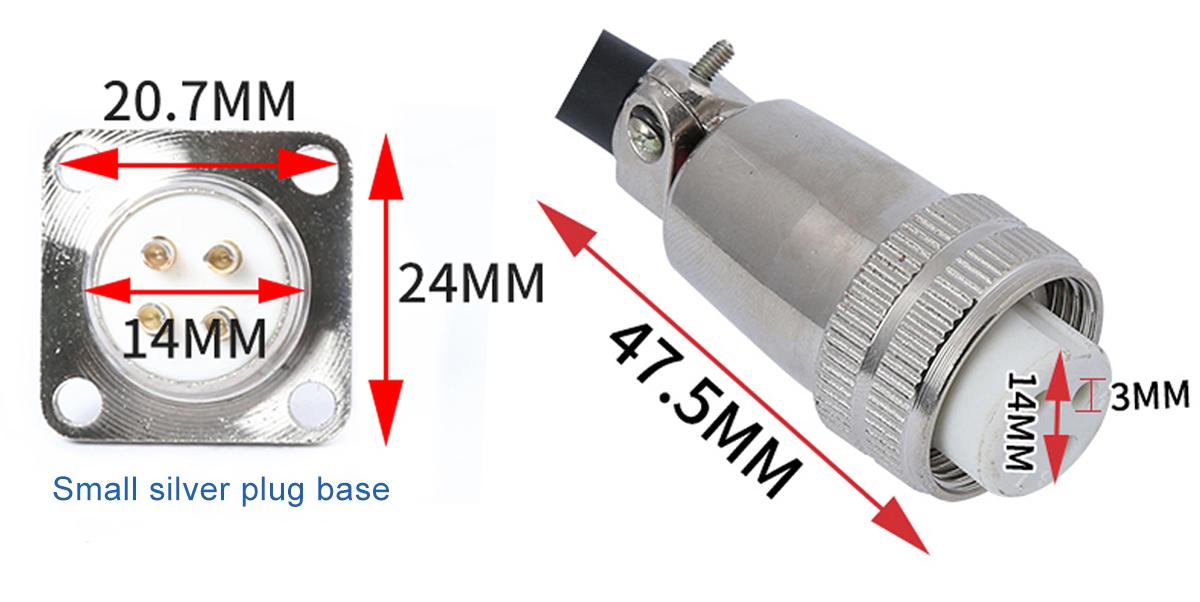

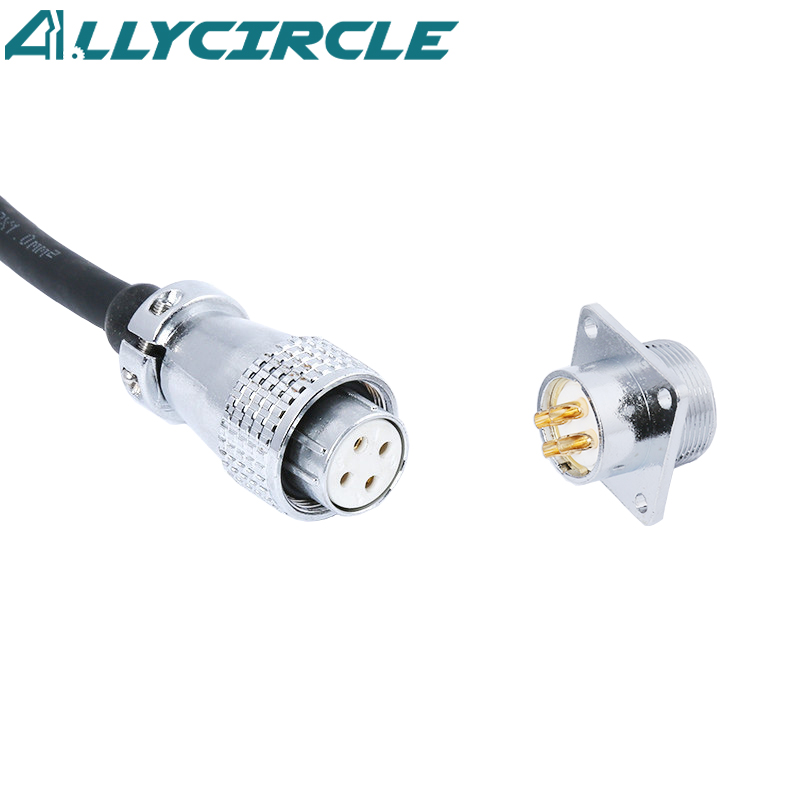

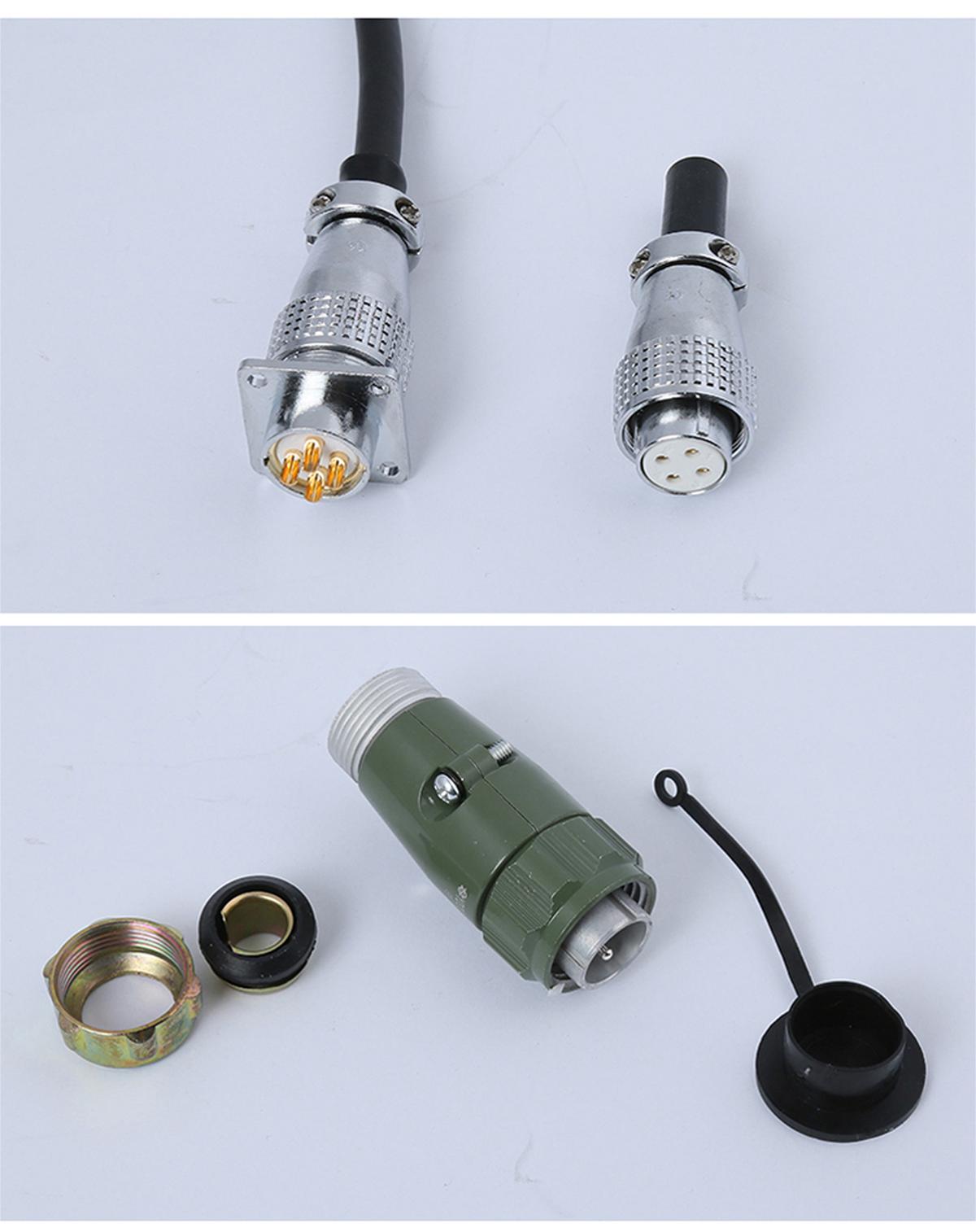

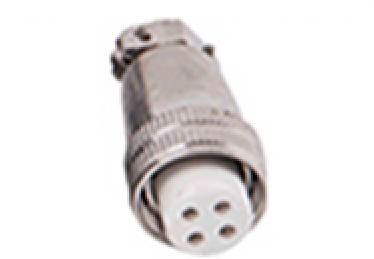

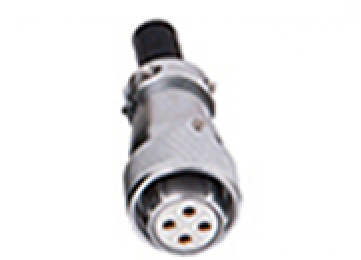

Small silver plug

Large silver plug

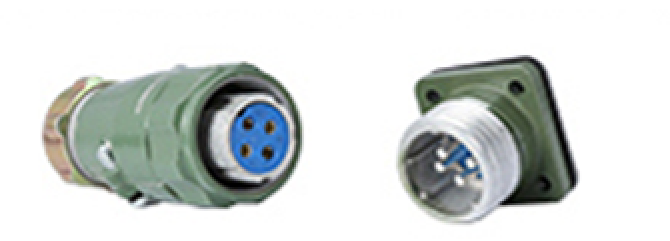

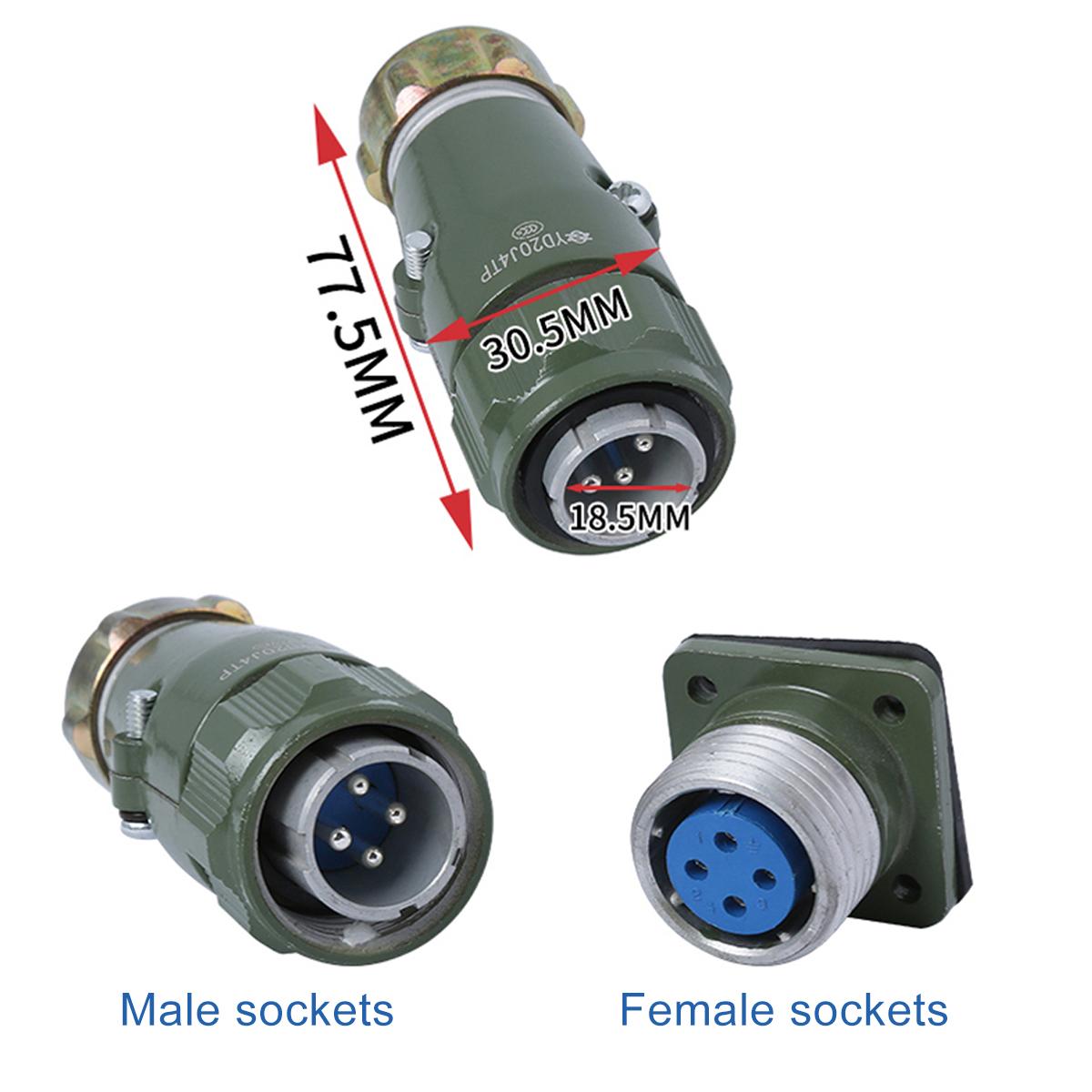

Green silver plug

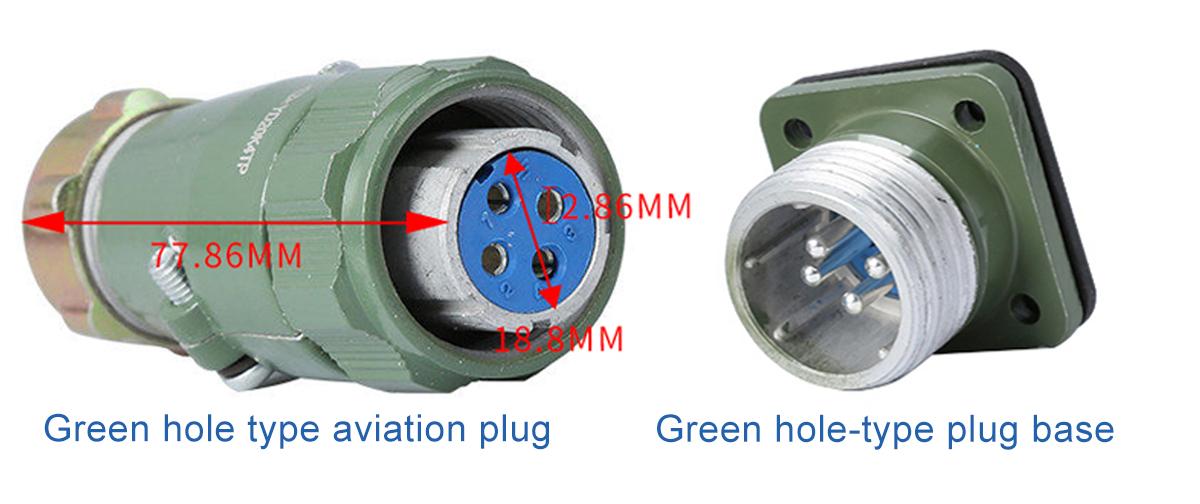

Green silver plug

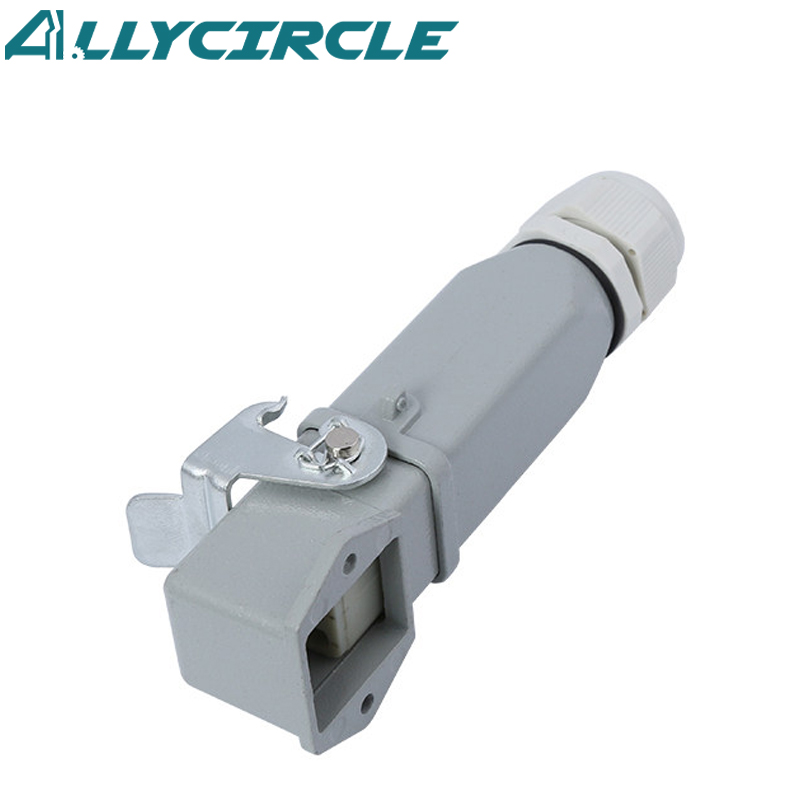

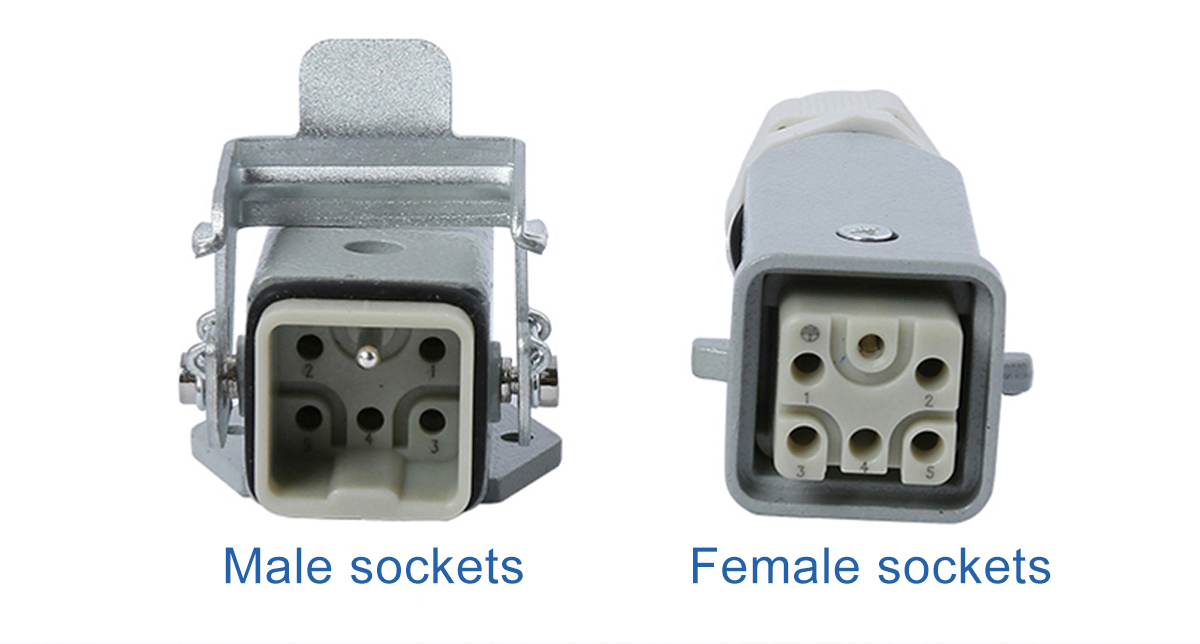

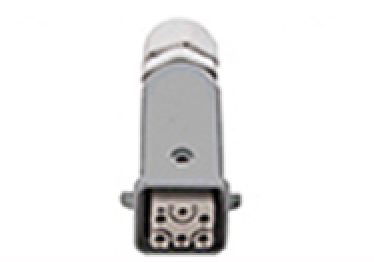

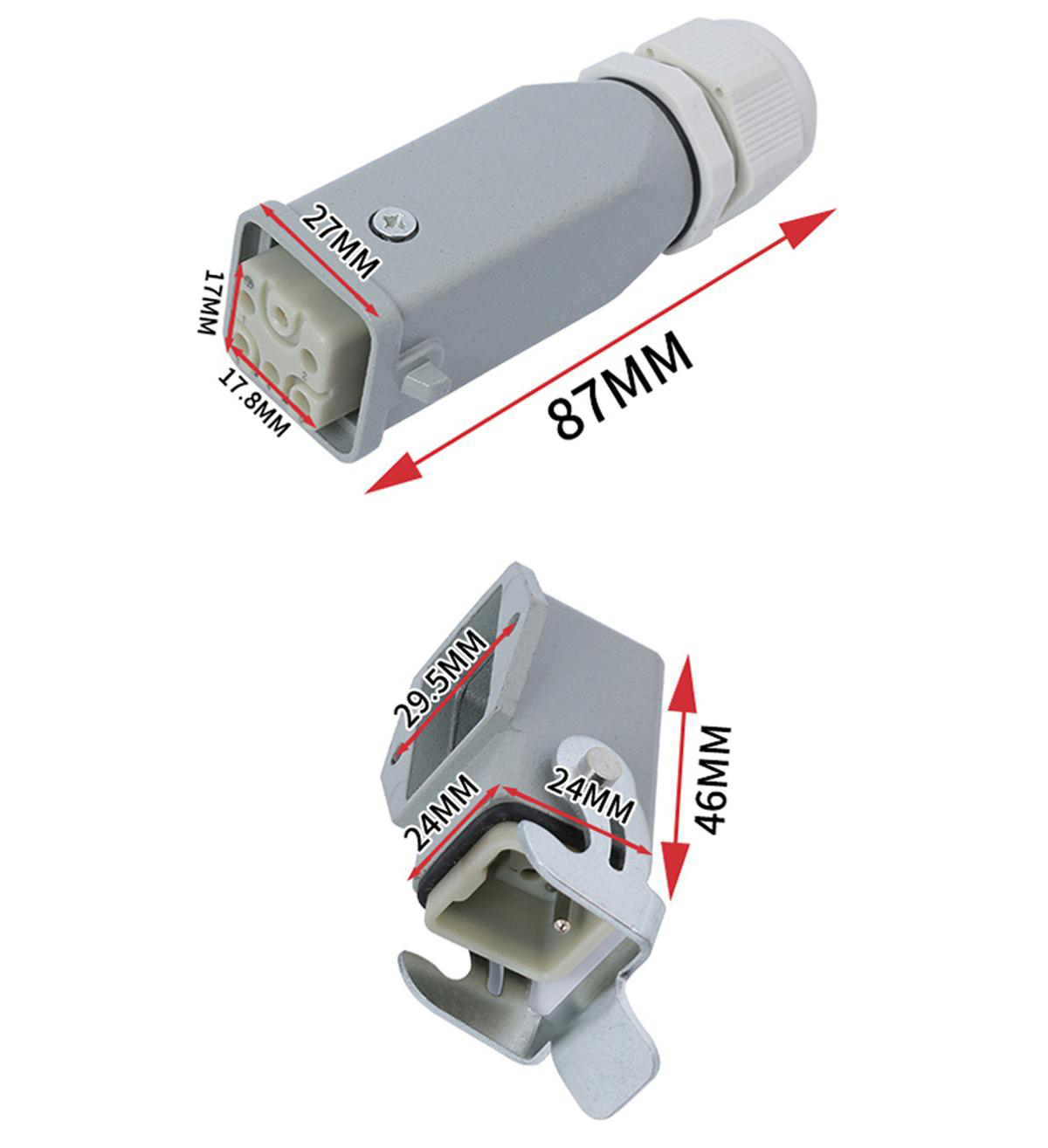

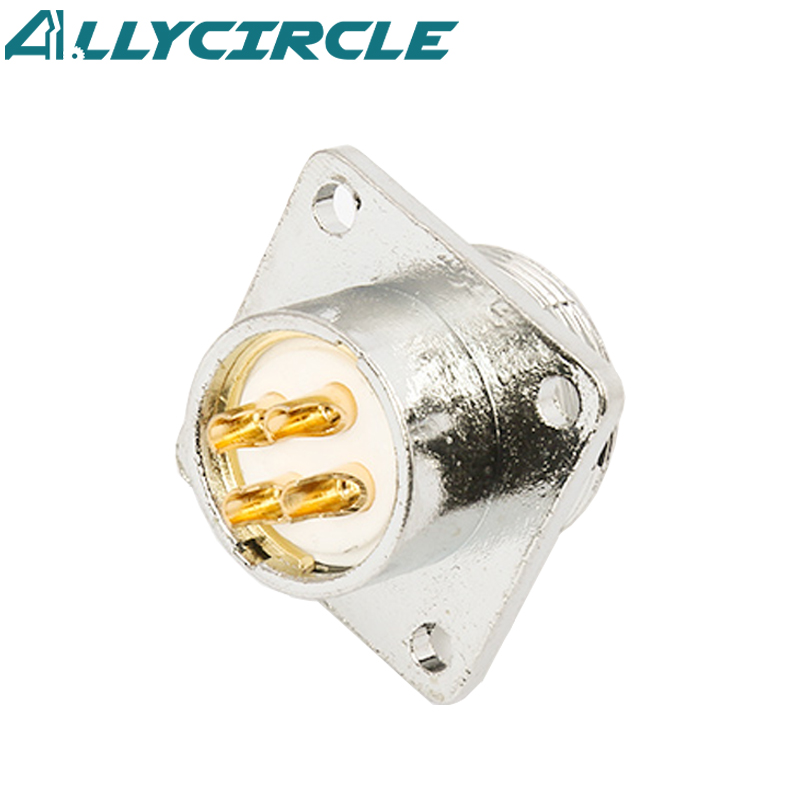

Square air cooling aviation plug

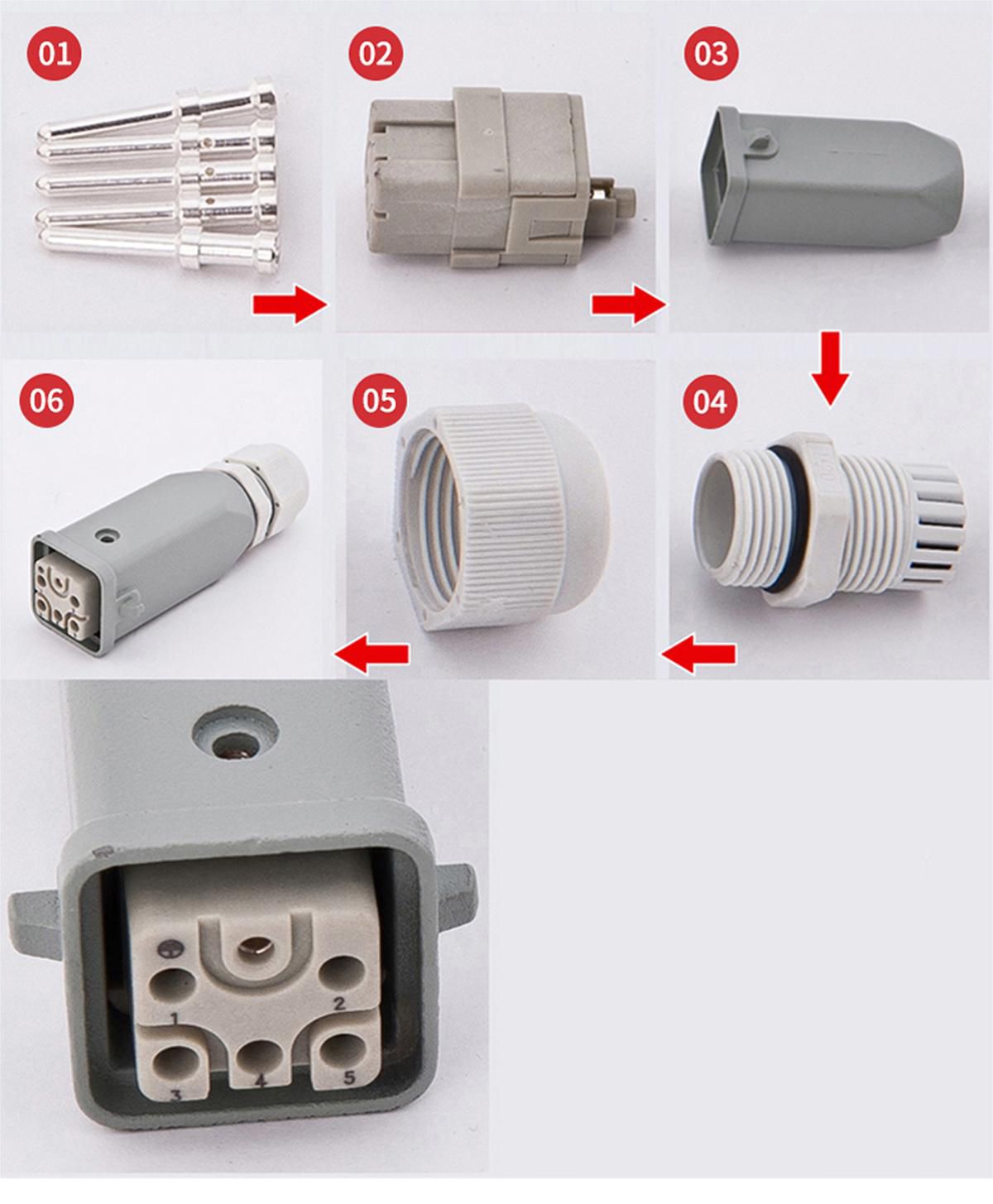

Diagram of the spindle motor mounting interface

The interface is marked with 123456, 123 is connected to the inverter outputs (U, V , W) respectively,

45 is connected to the thermal protection and 6 is the ground wire

Product details
