PRODUCT DESCRIPTION

Spindle Motor Extend Rod

1 - 副本.jpg

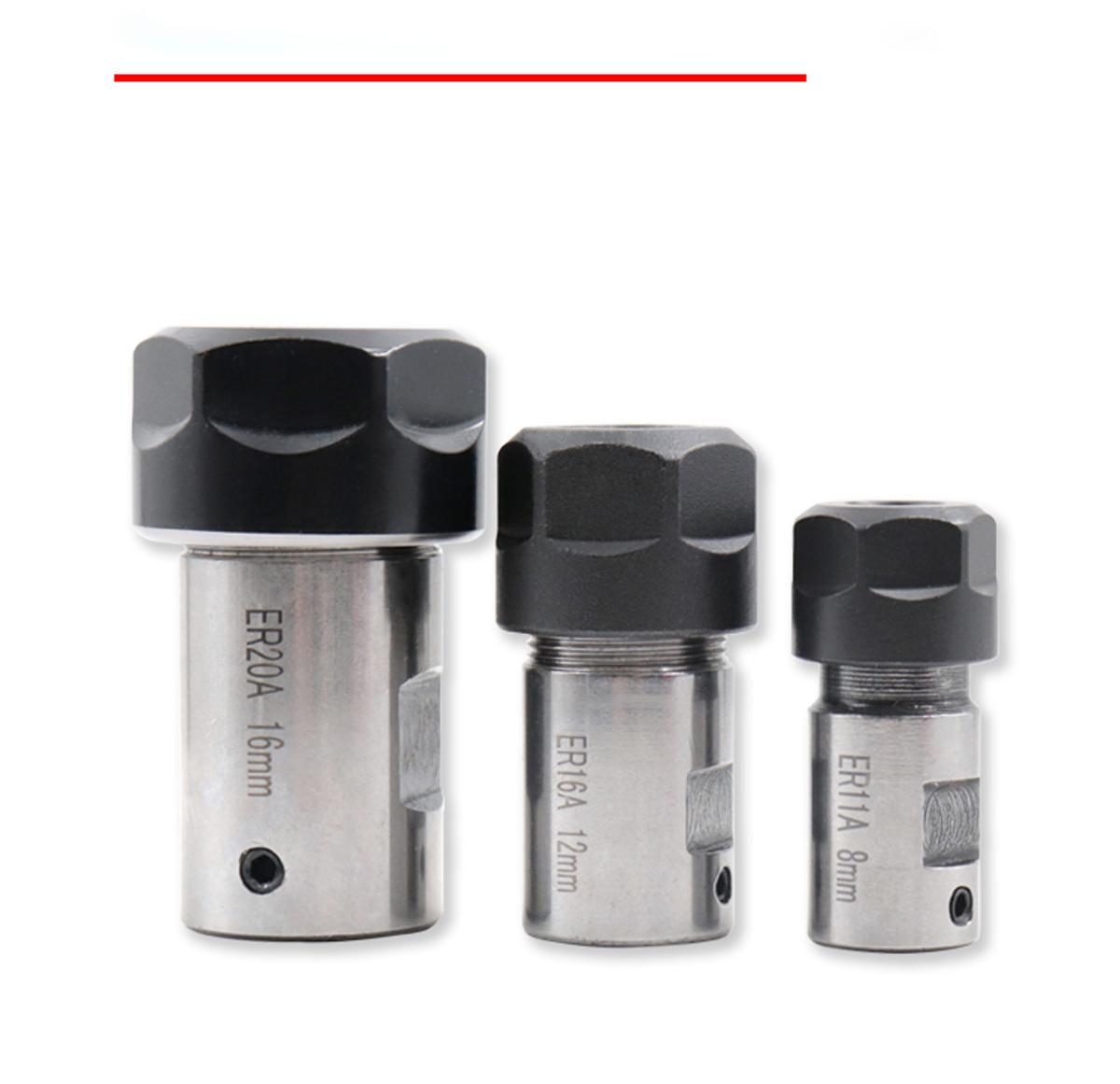

40Cr Material, long lifetime

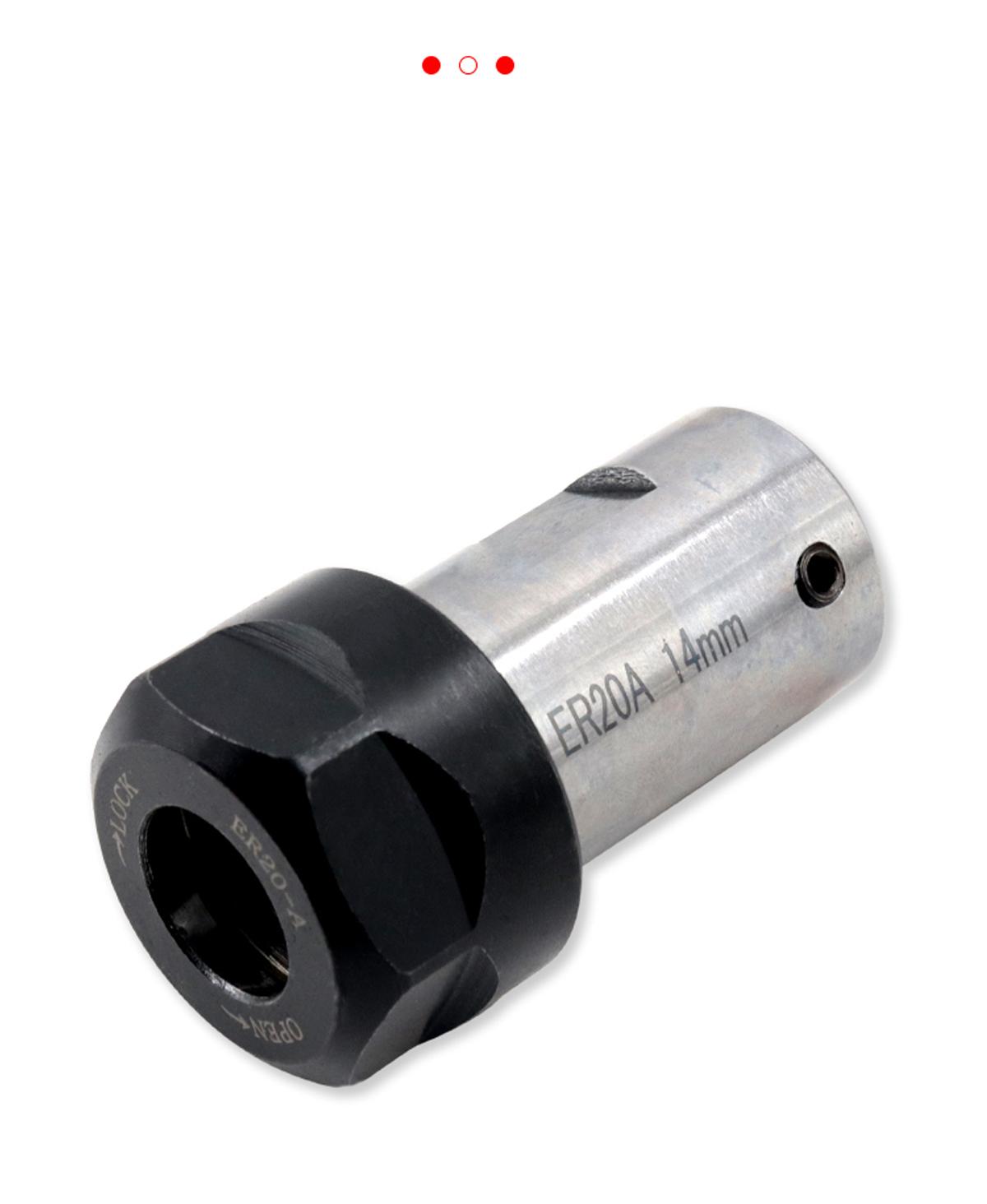

3 - 副本.jpg


High Precision, Good Hardness

4 - 副本.jpg

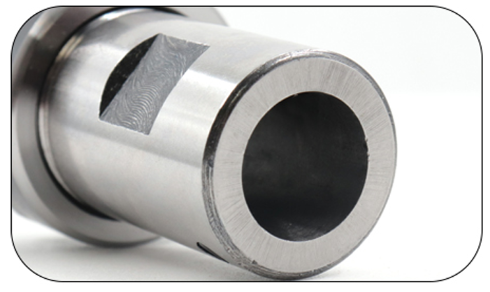

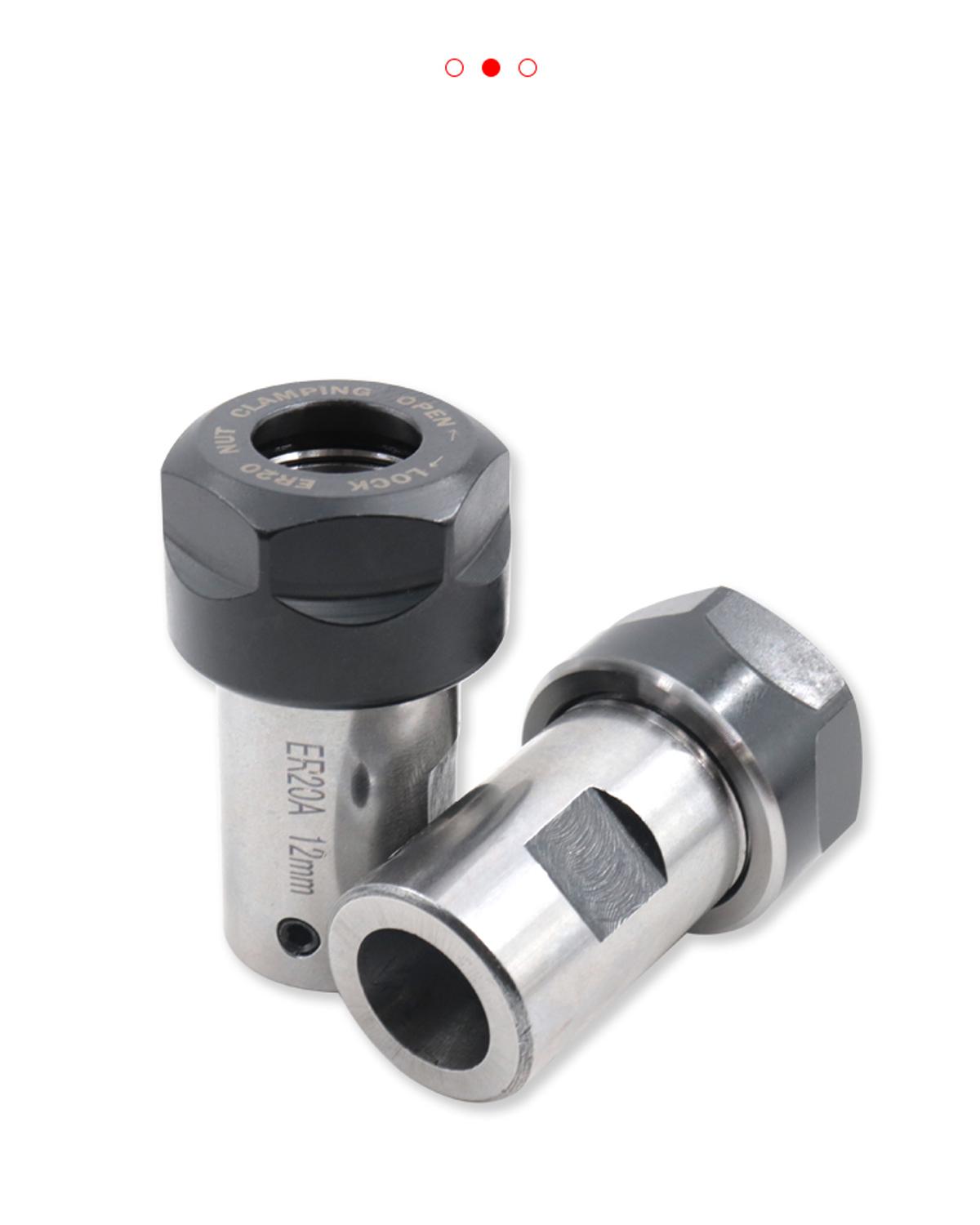

Spindle motor hole

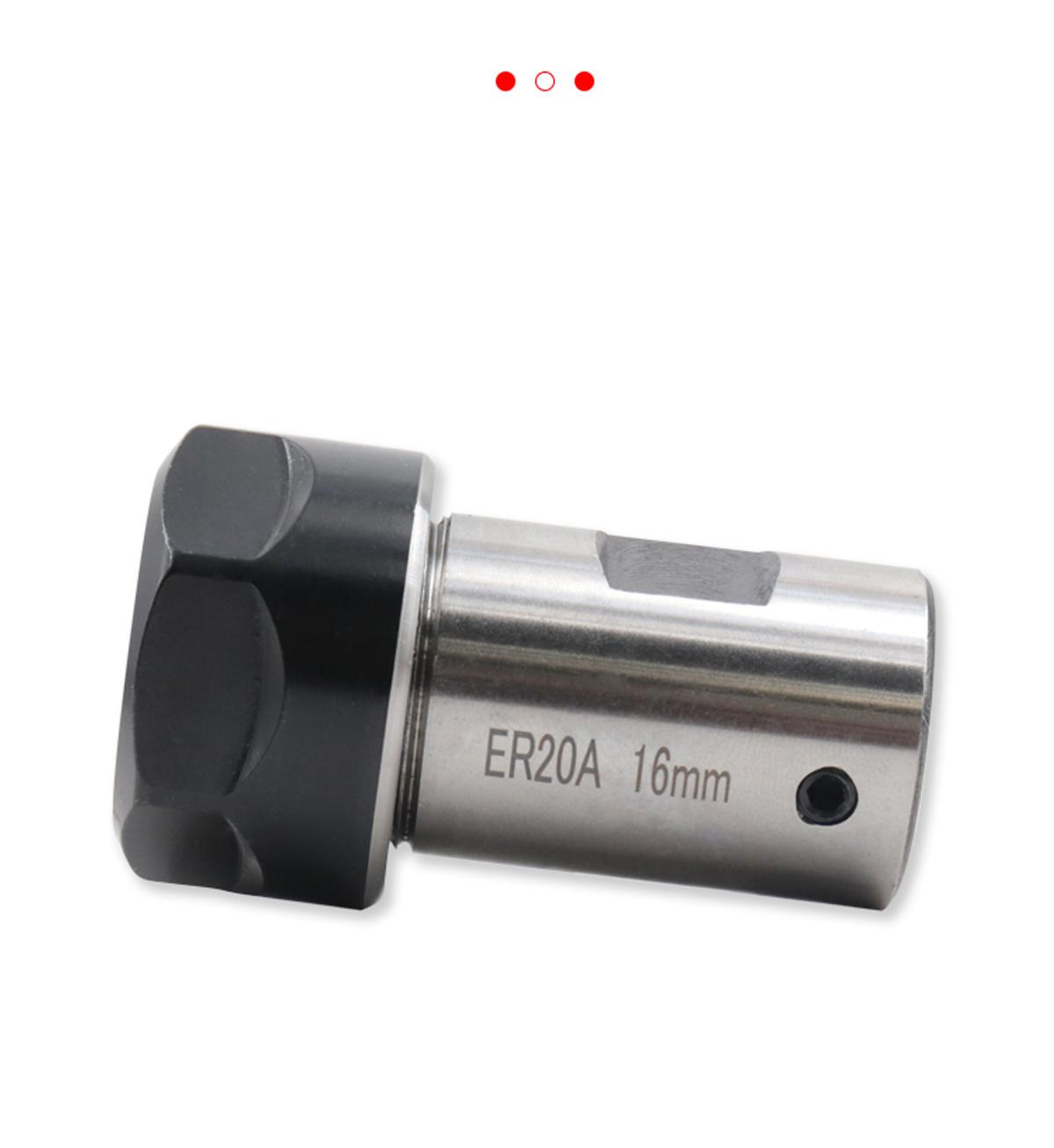

5 - 副本.jpg

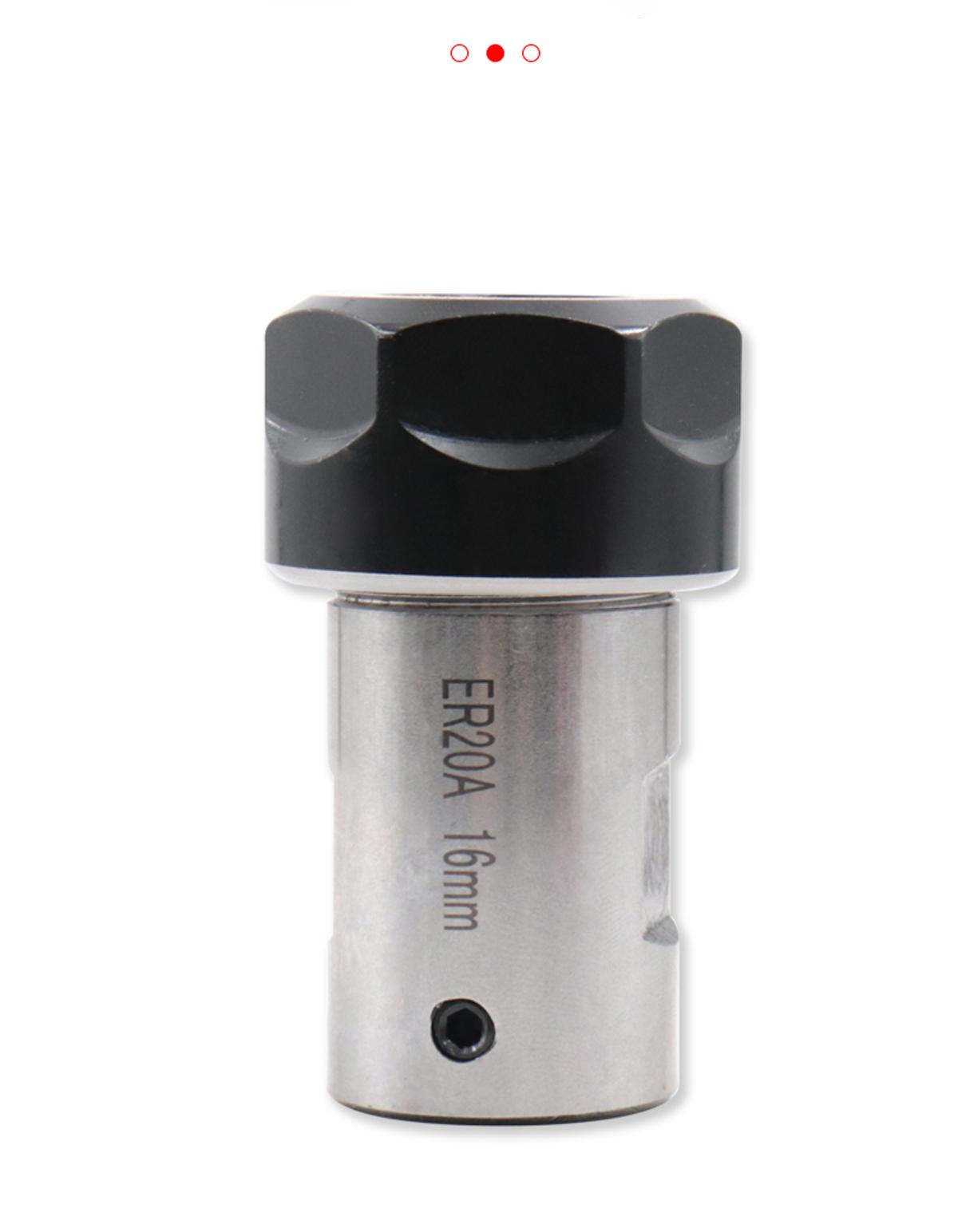

It is hardened by quenching


6 - 副本.jpg


Details



Hardened by QuenchingFine MakingHigh Anti-seismicStable & Wear-resistance



Parameter

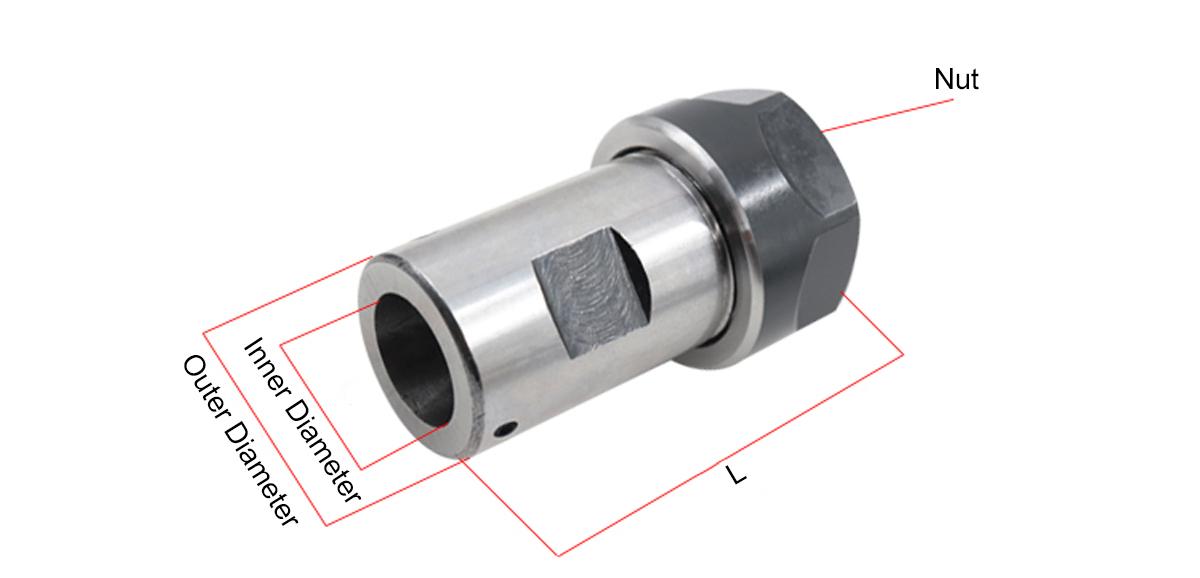

9 - 副本.jpg


ModelLOuter DiameterInner DiameterNut
C16-ER11A-3MM40163MMER11A
C16-ER11A-1/8”(3.175MM)40161/8”(3.175MM)ER11A
C16-ER11A-4MM40164MMER11A
C16-ER11A-5MM40165MMER11A
C16-ER11A-6MM40166MMER11A
C16-ER11A-1/4”(6.35MM)40161/4”(6.35MM)ER11A
C16-ER11A-8MM40168MMER11A
C16-ER11A-10MM401610MMER11A
C20-ER16A-5MM45205MMER16A
C20-ER16A-6MM45206MMER16A
C20-ER16A-8MM45208MMER16A
C20-ER16A-10MM452010MMER16A
C20-ER16A-12MM452012MMER16A
C20-ER16A-16MM452016MMER16A
C25-ER20A-8MM60258MMER20A
C25-ER20A-10MM602510MMER20A
C25-ER20A-12MM602512MMER20A
C25-ER20A-14MM602514MMER20A
C25-ER20A-16MM602516MMER20A

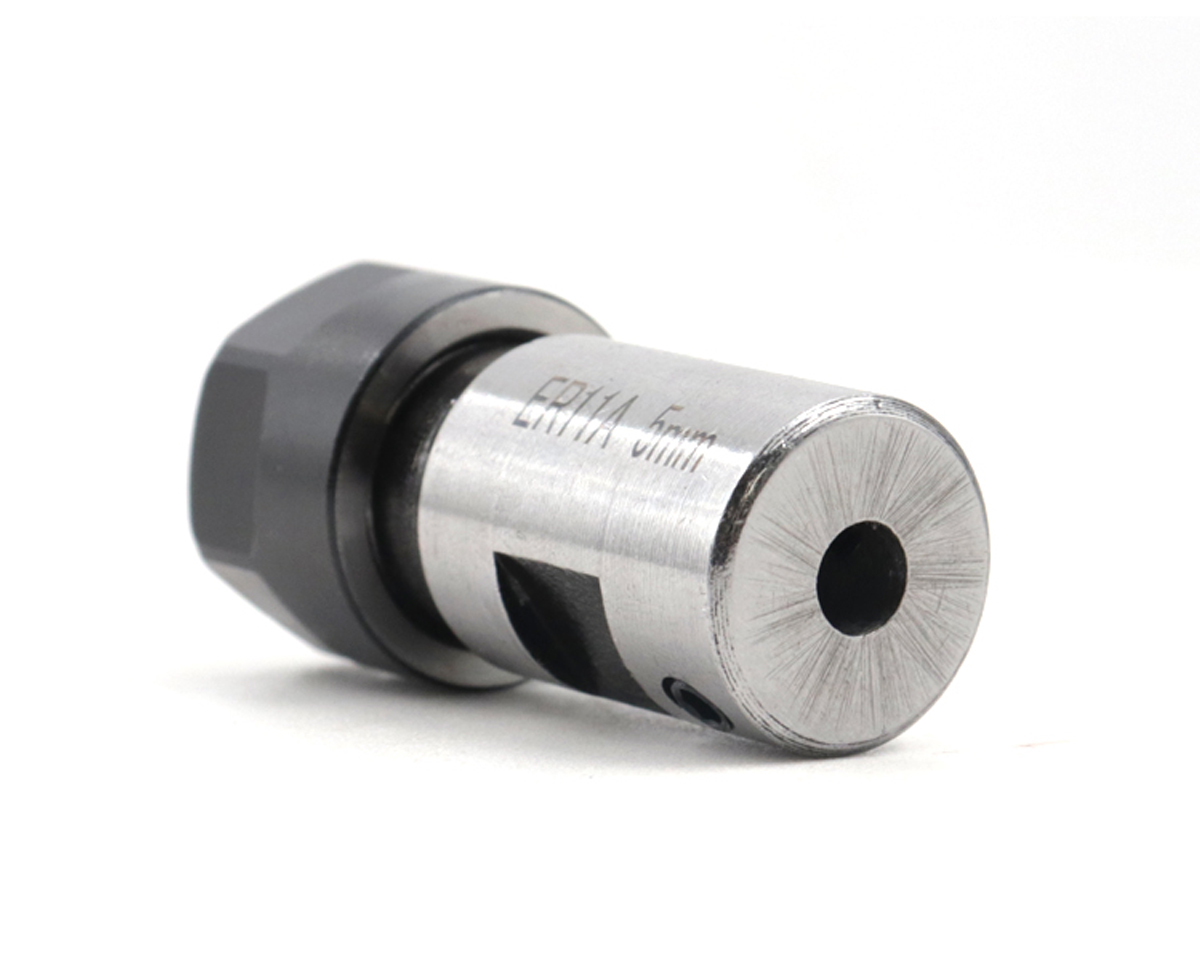

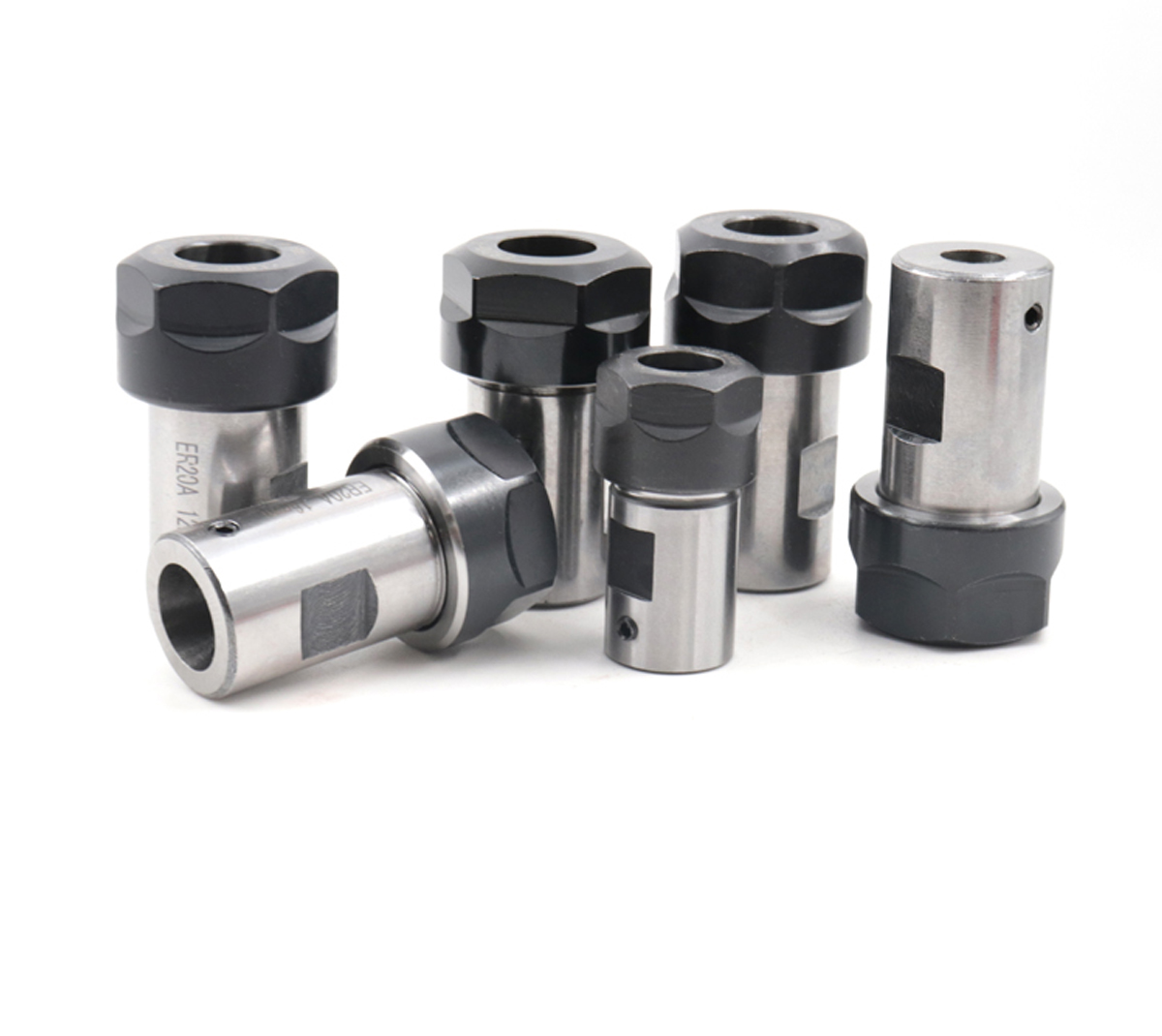

Real Photos

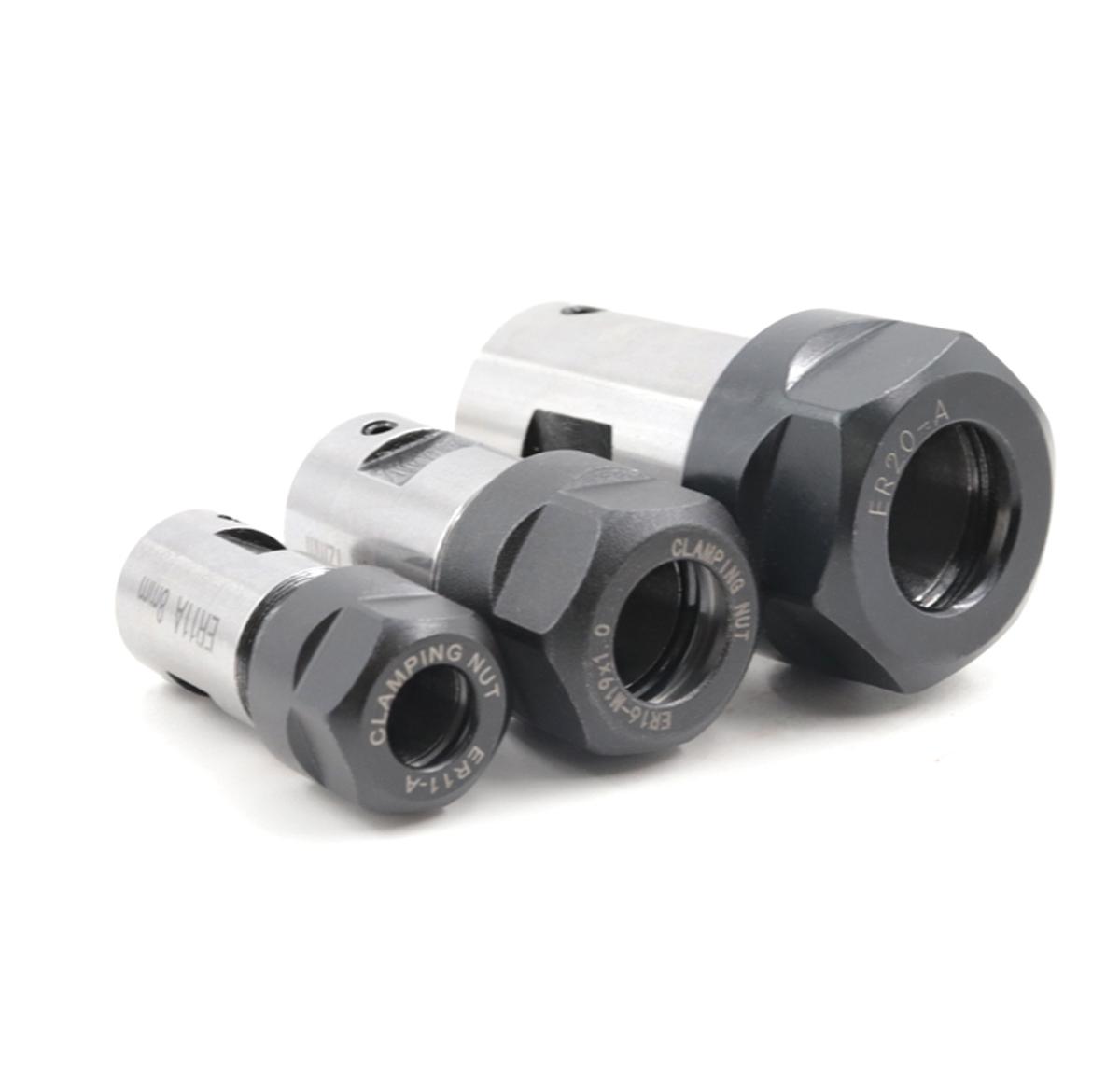

10 - 副本.jpg11.jpg
