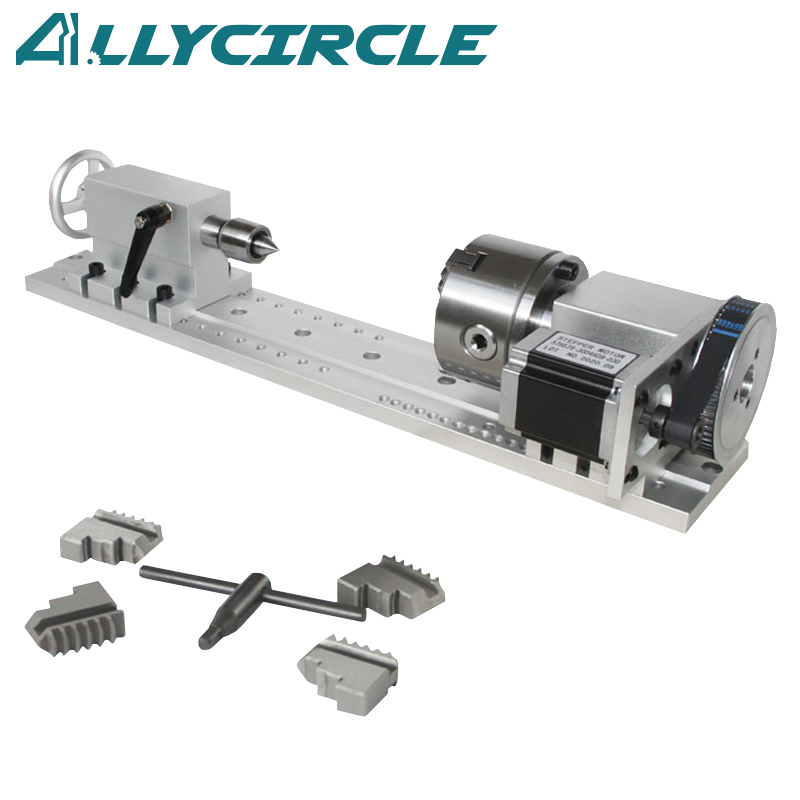

4 Axis Rotary Device

‹

›

‹

  • CNC
  • CNC
  • CNC
  • CNC
  • CNC
  • CNC

›

CNC
INQUIRY
CONTACT
PRODUCT DESCRIPTION

Feature

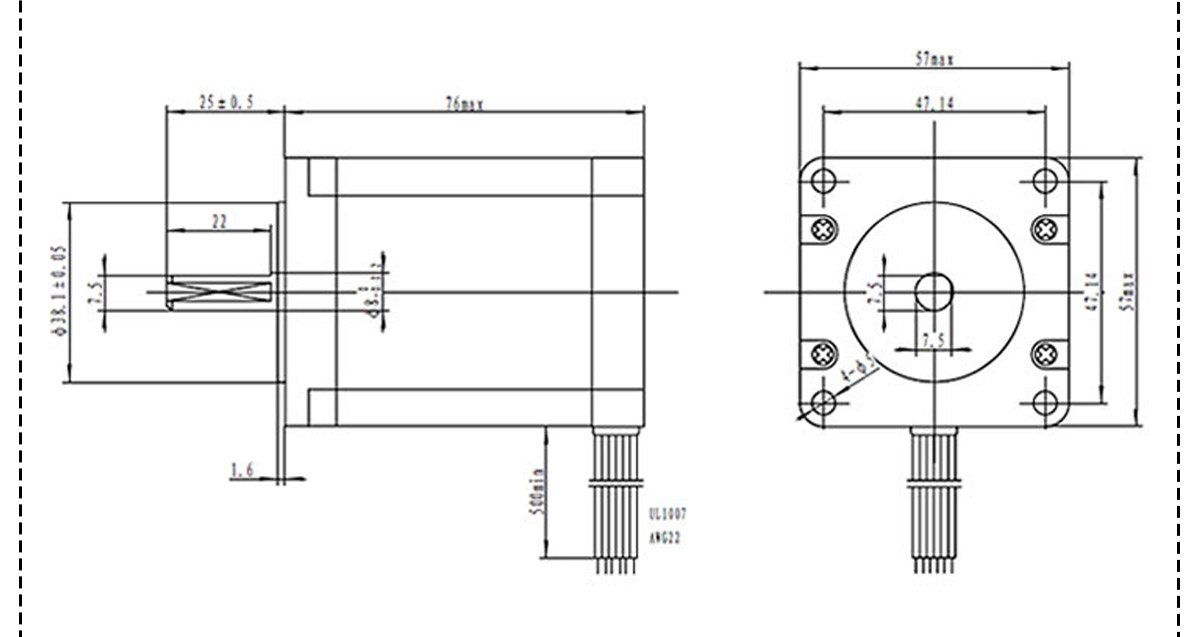

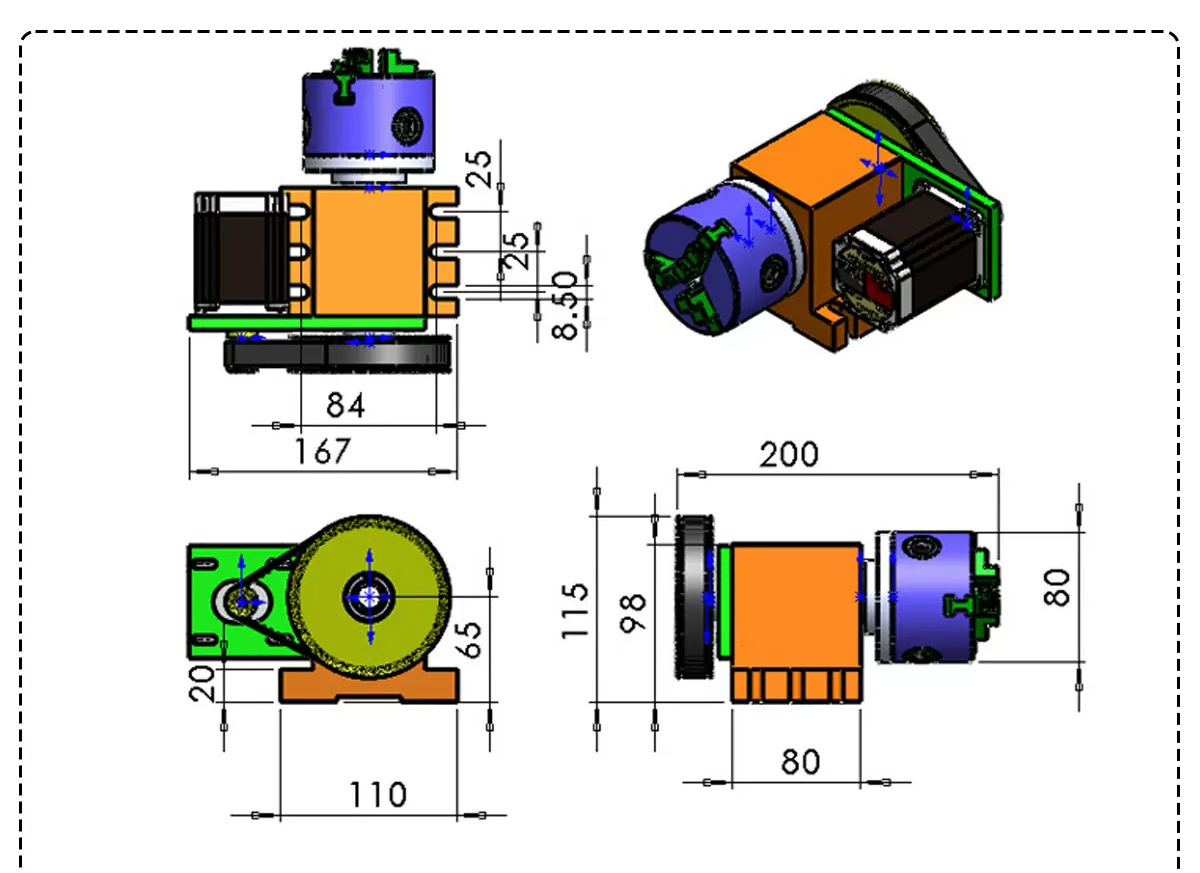

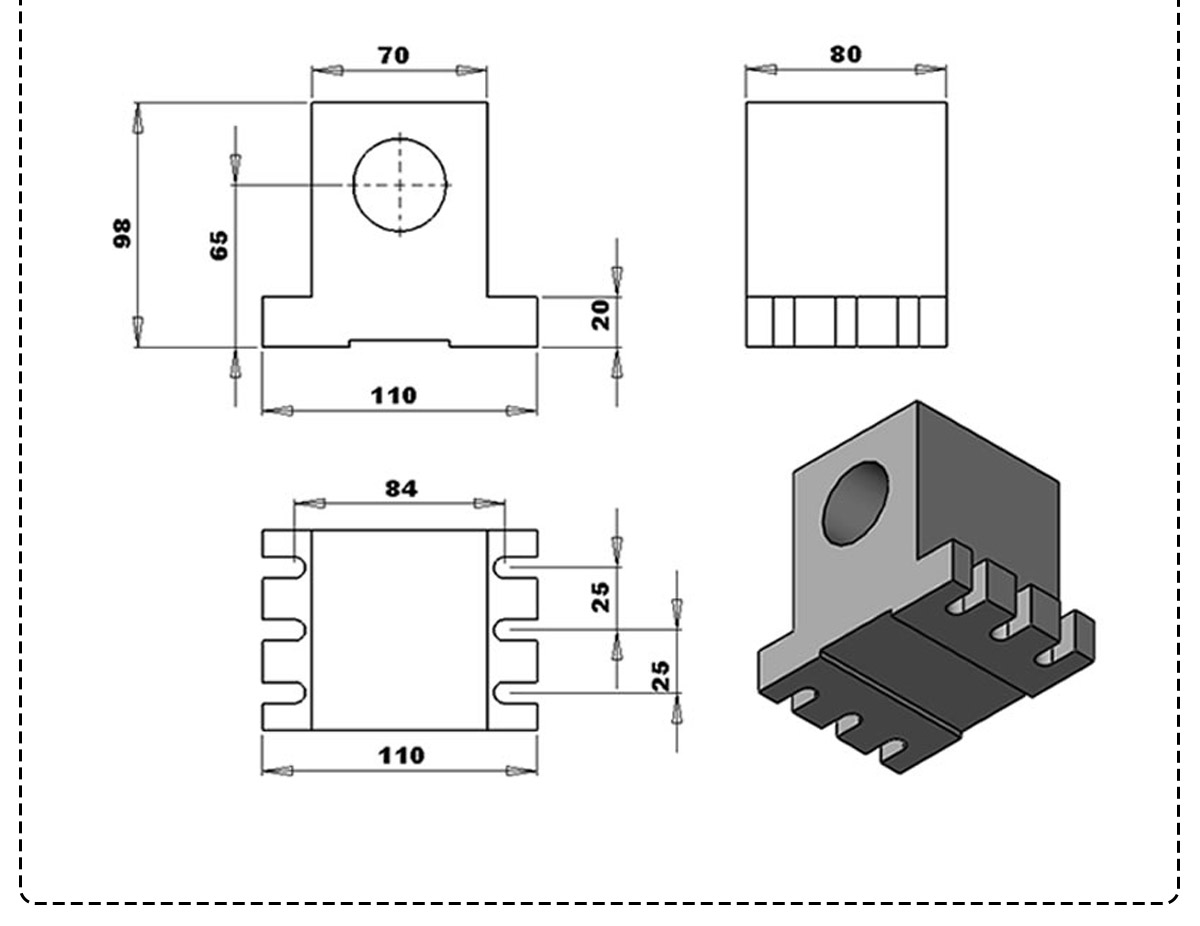

Demision

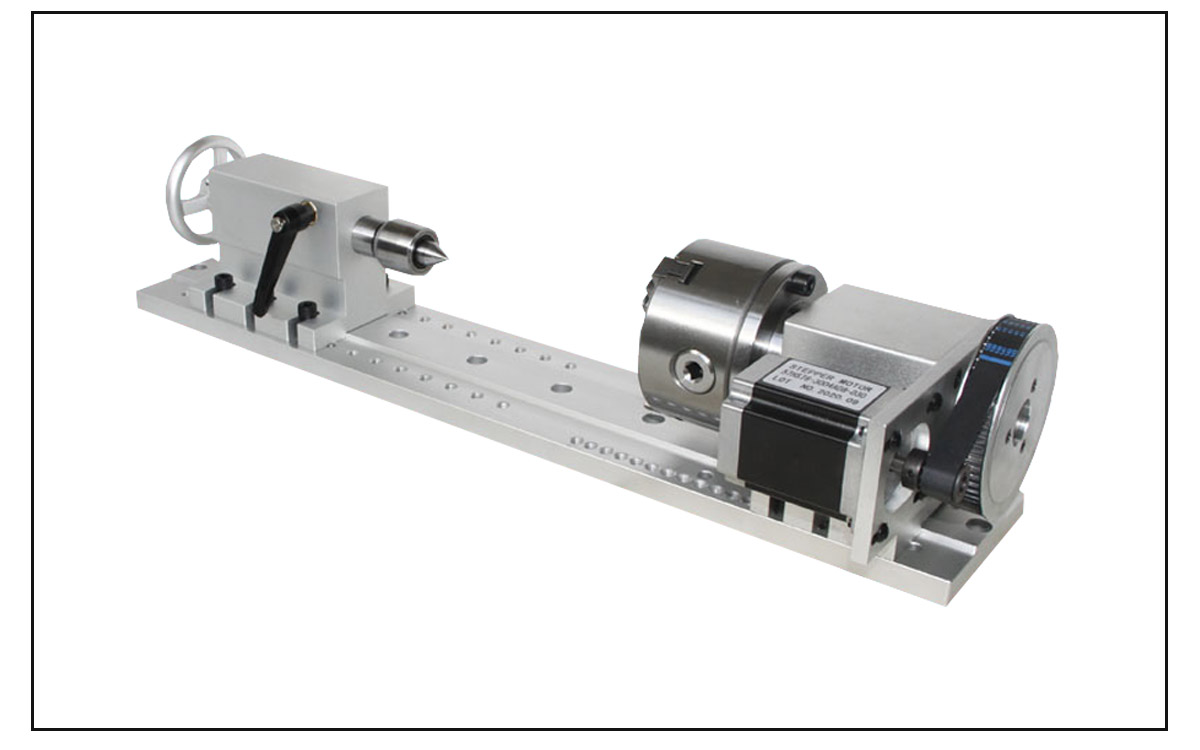

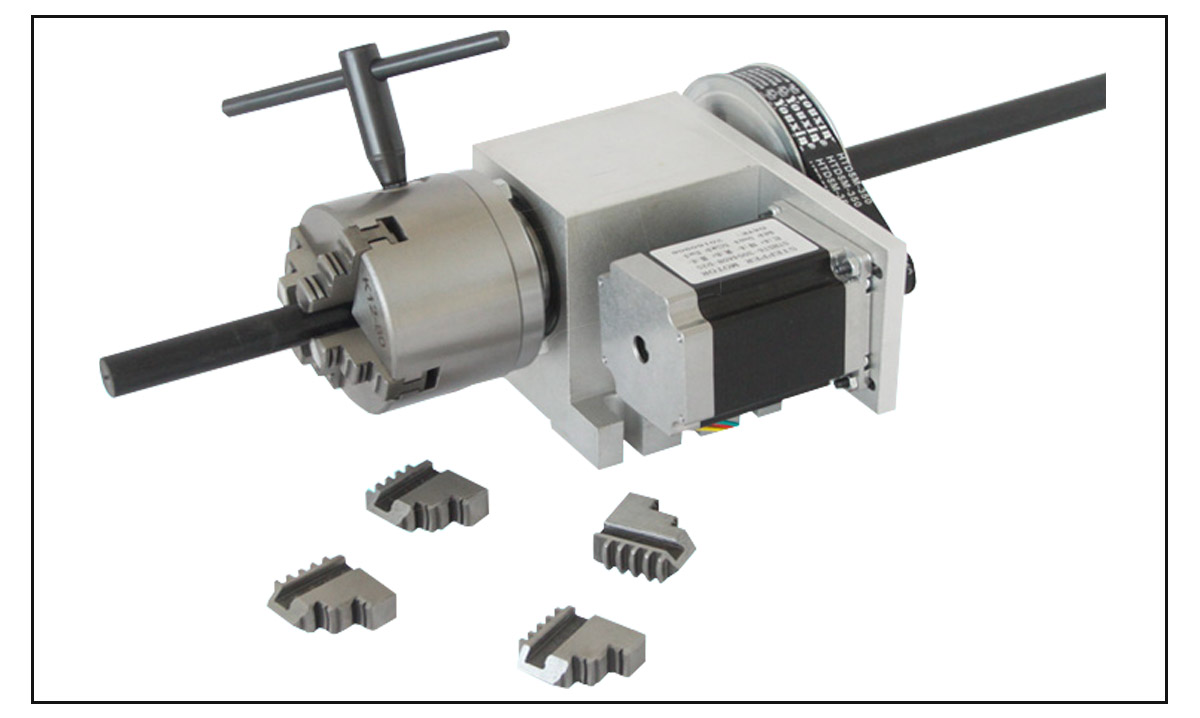

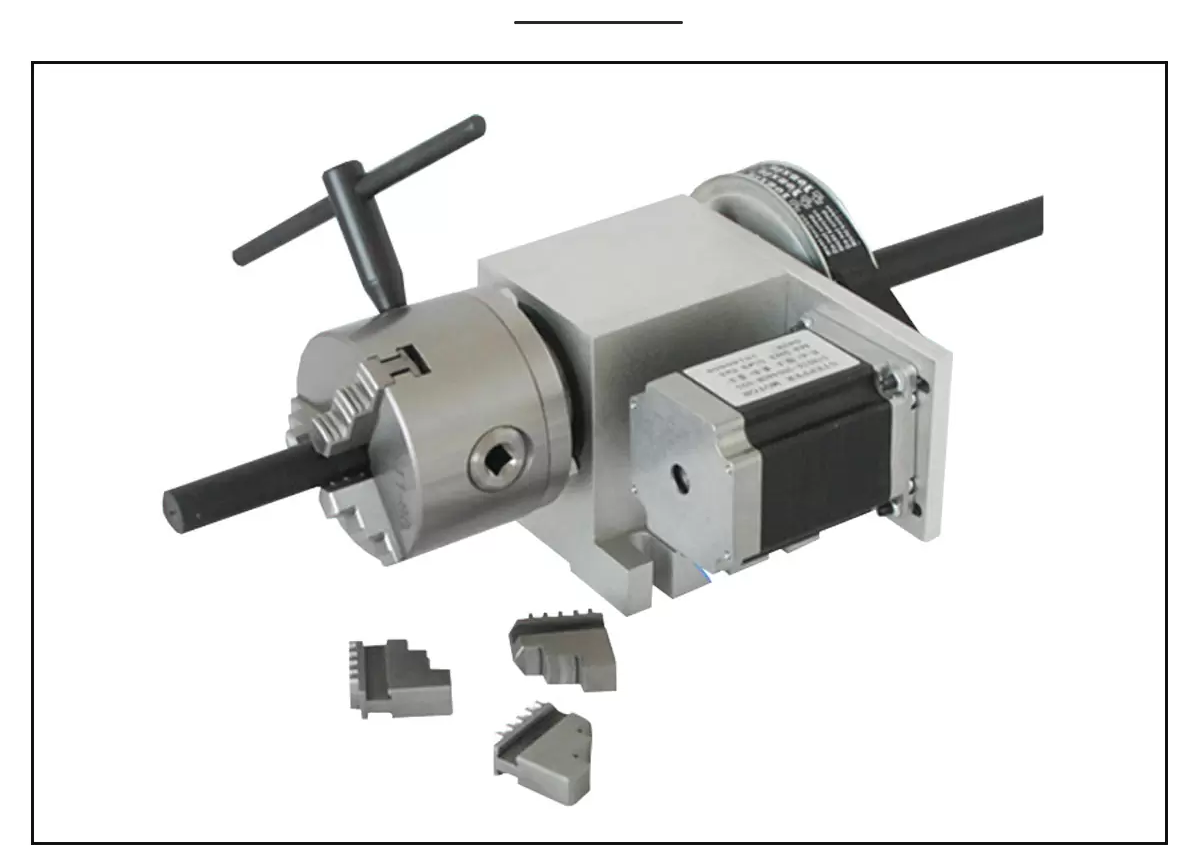

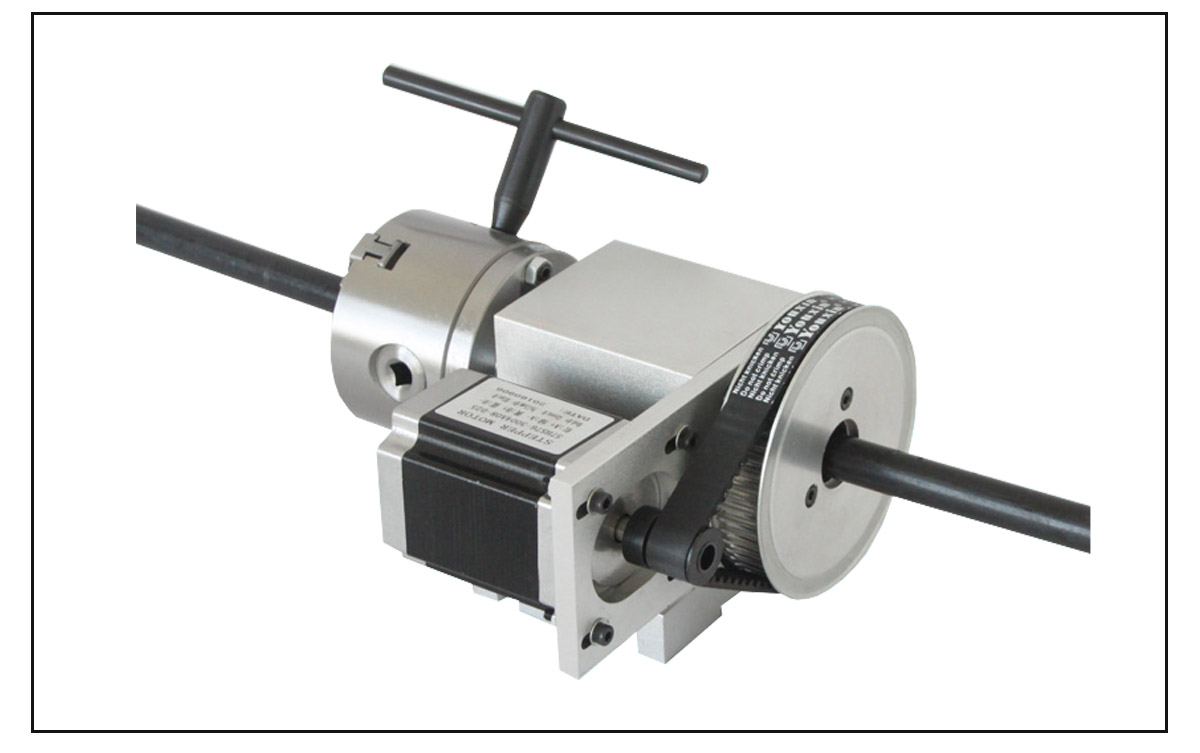

Products Real Shot






Parameter


Body


Reducer Ratio6:1 ( Synchronous Belt Transmission)
Angle0.3’/step
Output Shaft Diameter20MM
Diameter for 3-Jaw Chuck100
Diameter for 4-Jaw Chuck100
Whole Height115MM
Base MaterialAluminum Alloy
Synchronous Belt3M.336(Width 15MM)
Measurement210*168*110MM
Model of Stepper2PH,57
Weight11KG(excludes motors)
