PRODUCT DESCRIPTION

Low Noise


Fine Finished long lifetime




Quality Materials


Stable transmission function long lifetime


High Quality Workmanship


High Accuracy


Various Models are in Stock



Product Parameter

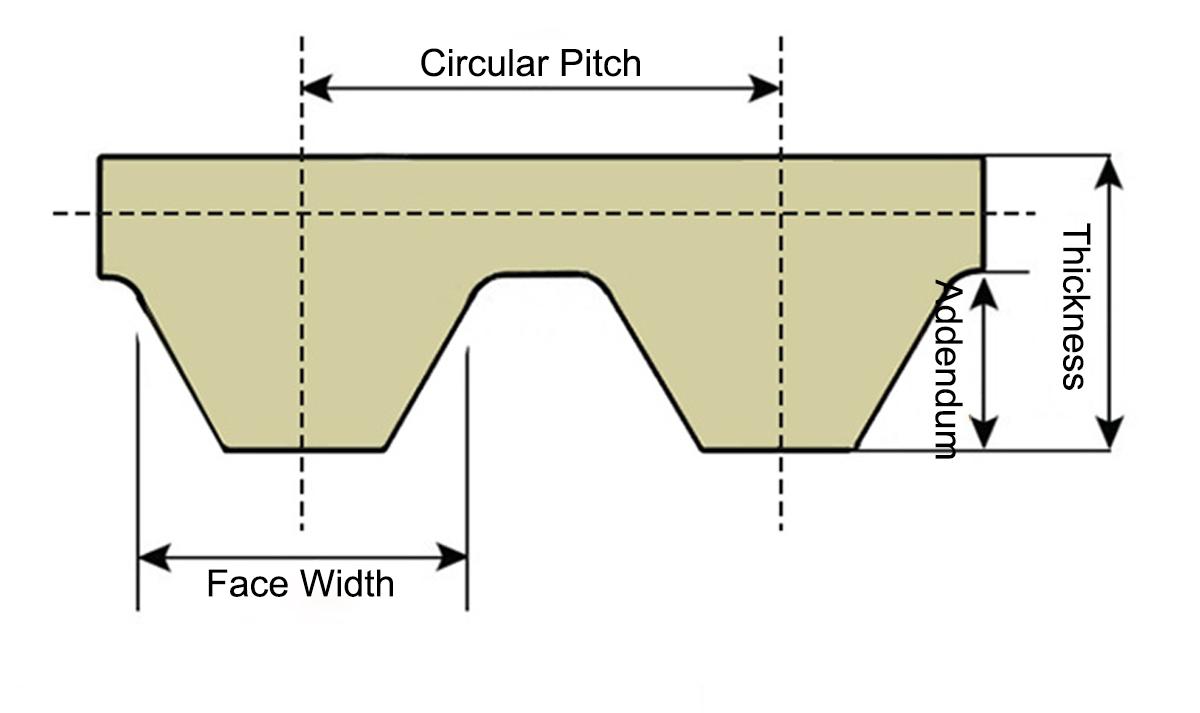

XL Trapezoid Synchronous pulley



6 - 副本.jpg

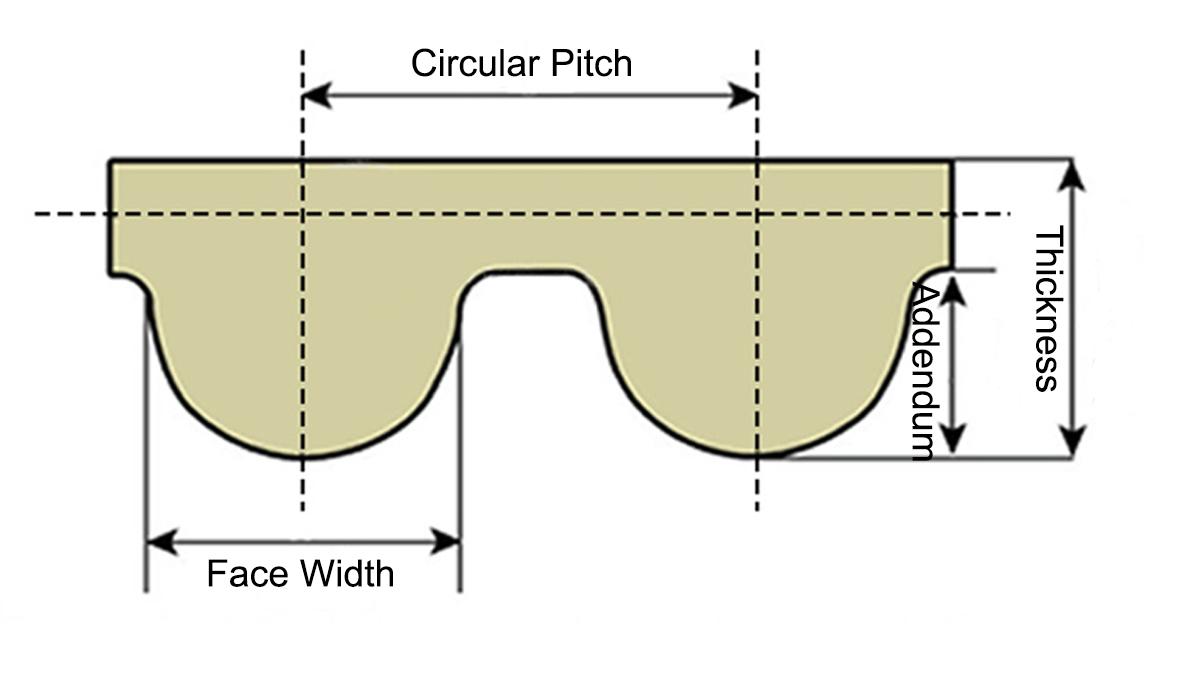

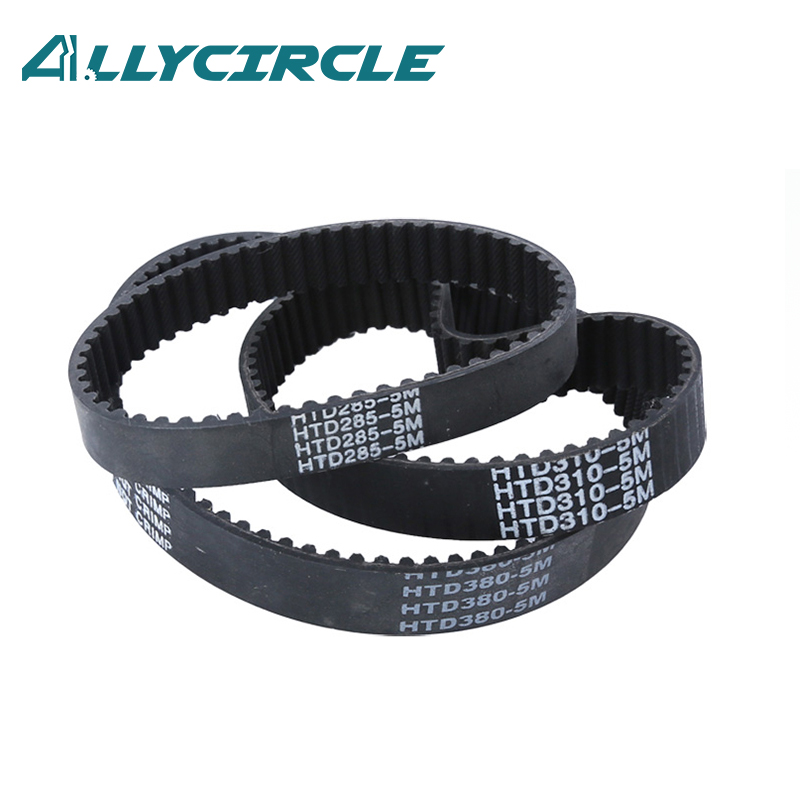

HTD Arc Synchronous pulley



7 - 副本.jpg


Model:HTD310-5M

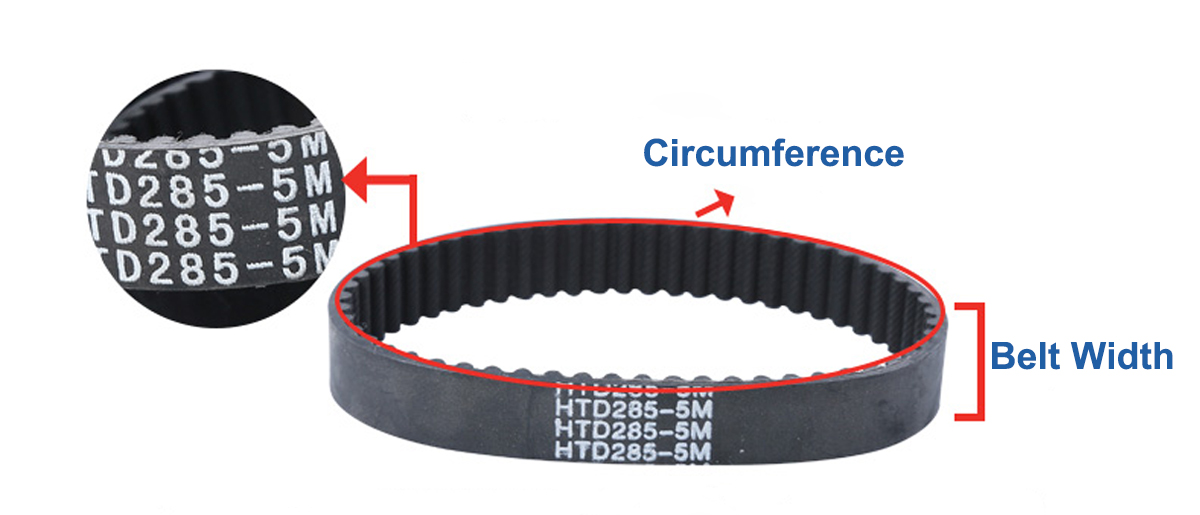

Explanation: HTD310-5M, Synchronous belt Circular Pitch is 5MM, 62 teeth, circumference is 310mm,belt width is 18mm.


 Model  Parameter


ModelCircularPitch(mm)FaceWidth(mm)BeltWidth(mm)Addendum(mm)Thickness(mm)numberof teeth(mm)circumference
(mm)
110XL53.3181.32.355280
220XL53.3111.32.3110560
HTD285-5m-18mm531823.857285
HTD285-5m-15mm531523.857285
HTD310-5m-12mm531223.862310
HTD310-5m-15mm531523.862310
HTD310-5m-18mm531823.862310
HTD380-5m-18mm531823.876380
HTD430-5m-11mm531123.886430
HTD550-5m-12mm531223.8110550
HTD550-5m-15mm531523.8110550
HTD550-5m-18mm531823.8110550
HTD560-5m-12mm531223.8
560

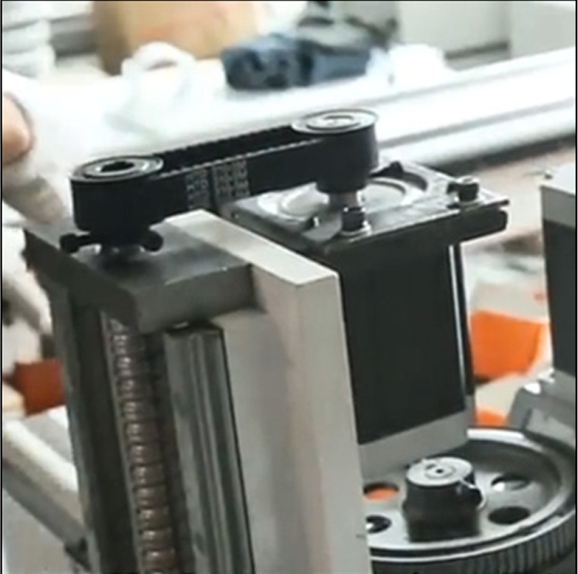

Applicable

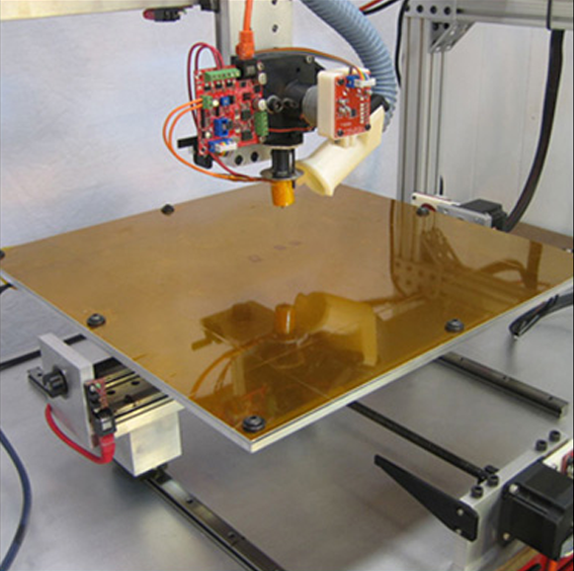

3D printerLaser Cutting Machine

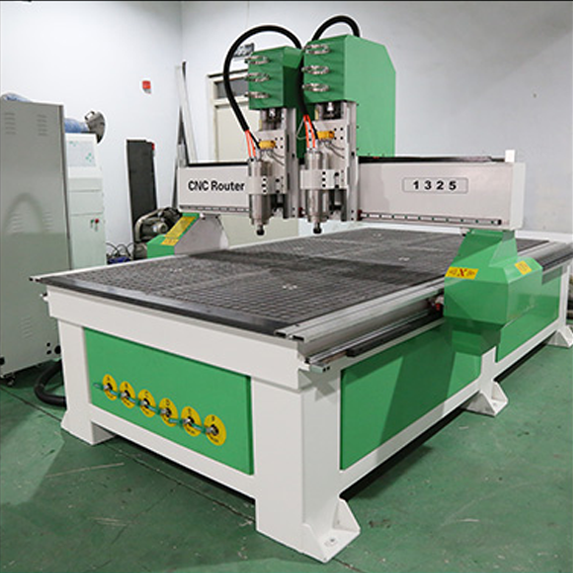

CNC RouterStepper Motors

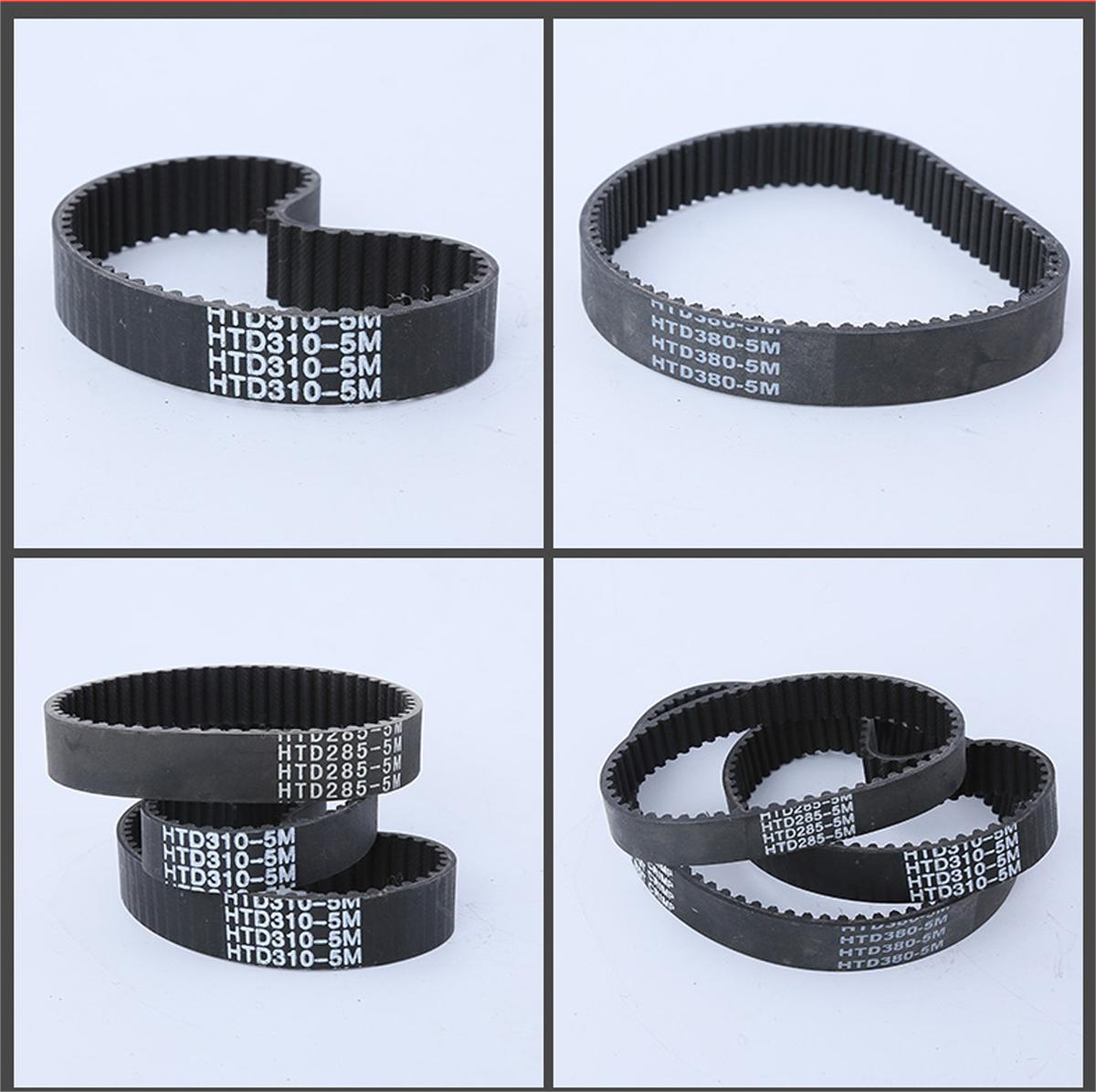

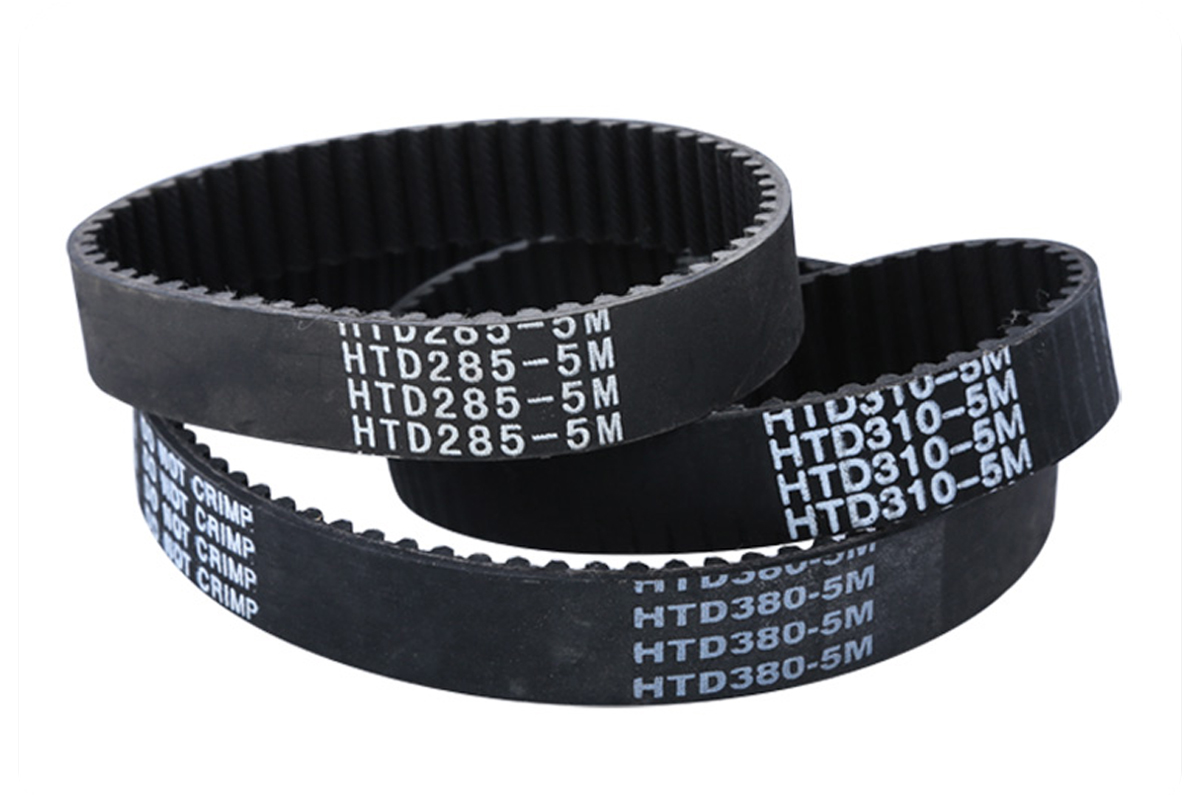

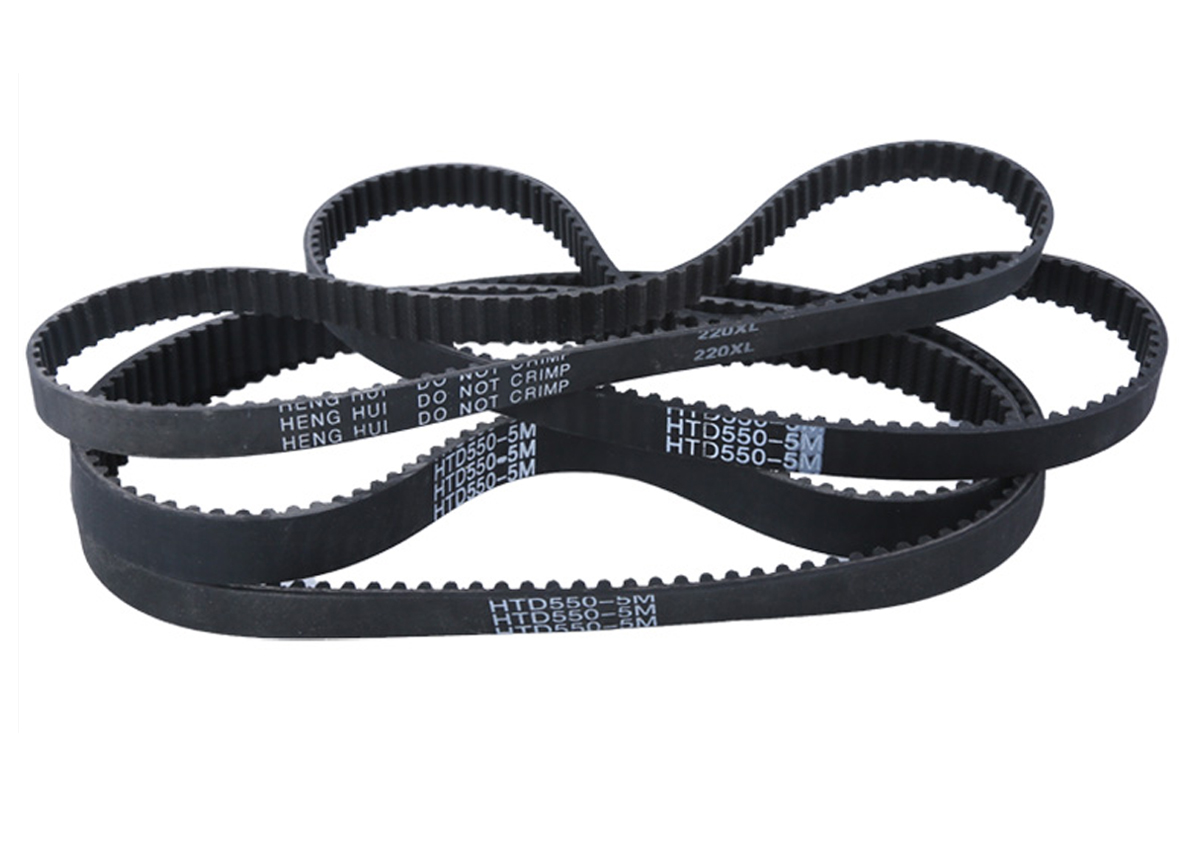

Real Photos


11 - 副本.jpg
