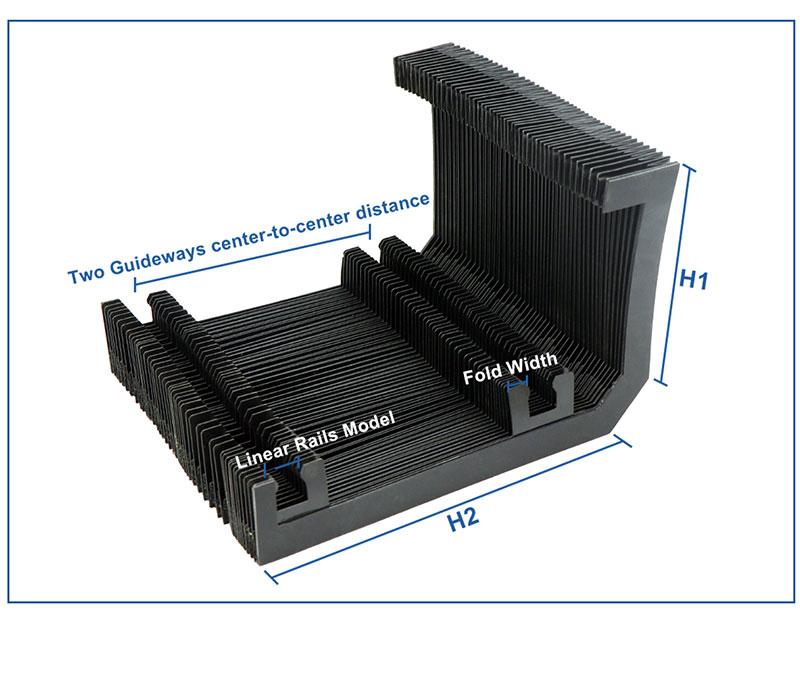

Customize Bellow Covers According to User's Drawing

Water-proof, Oil-proof and Fire-proof etc. CNC Bellows for User's choice

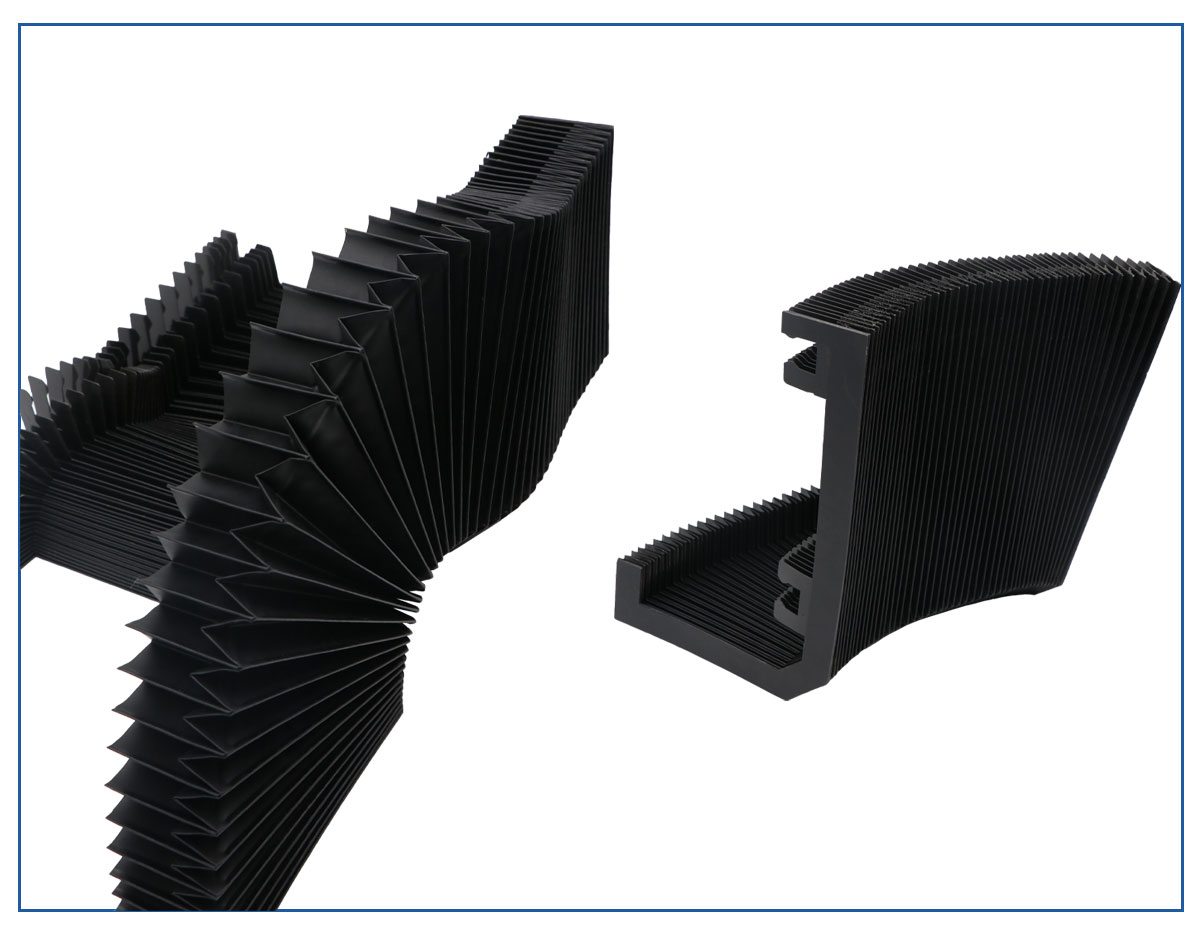

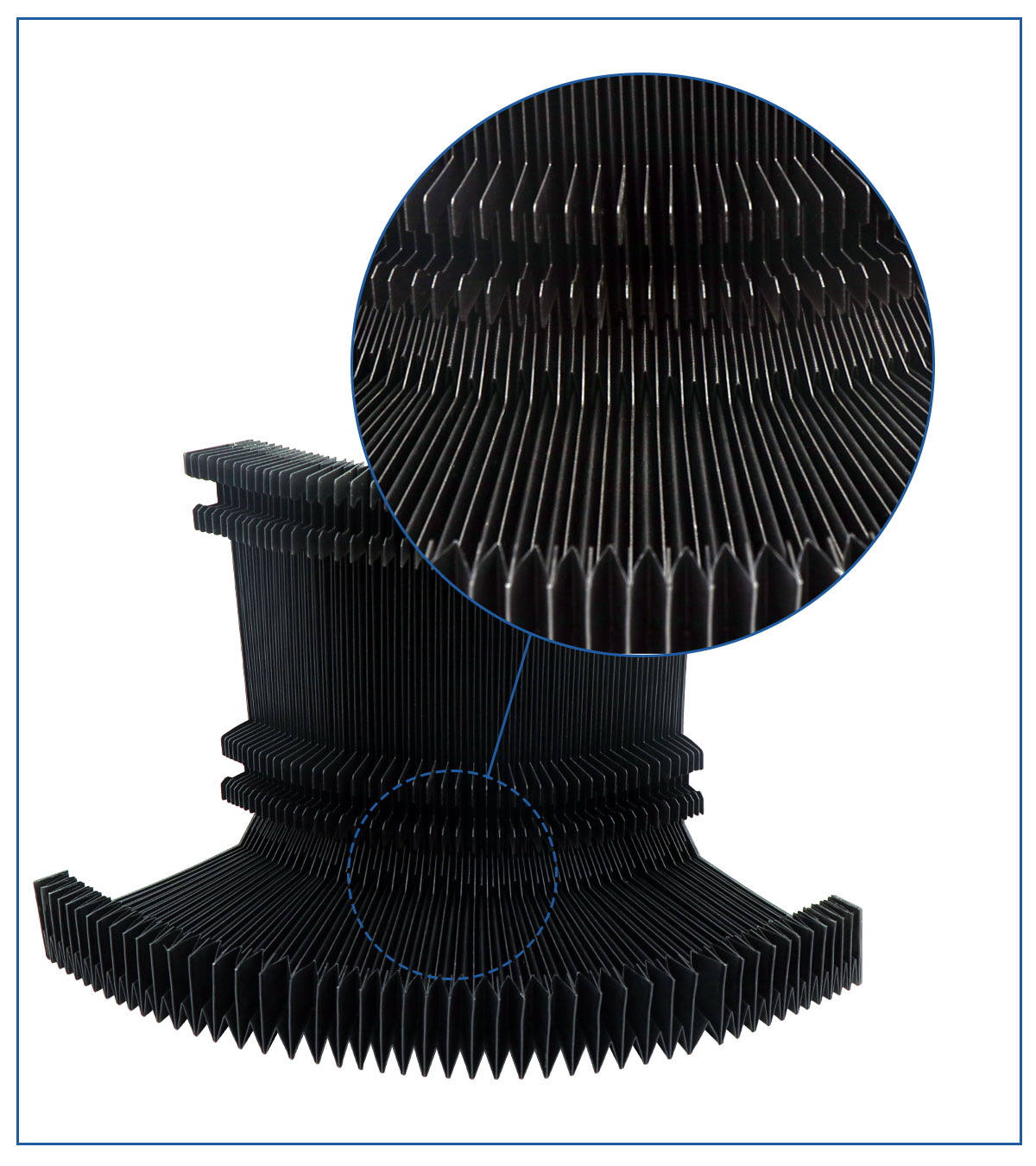

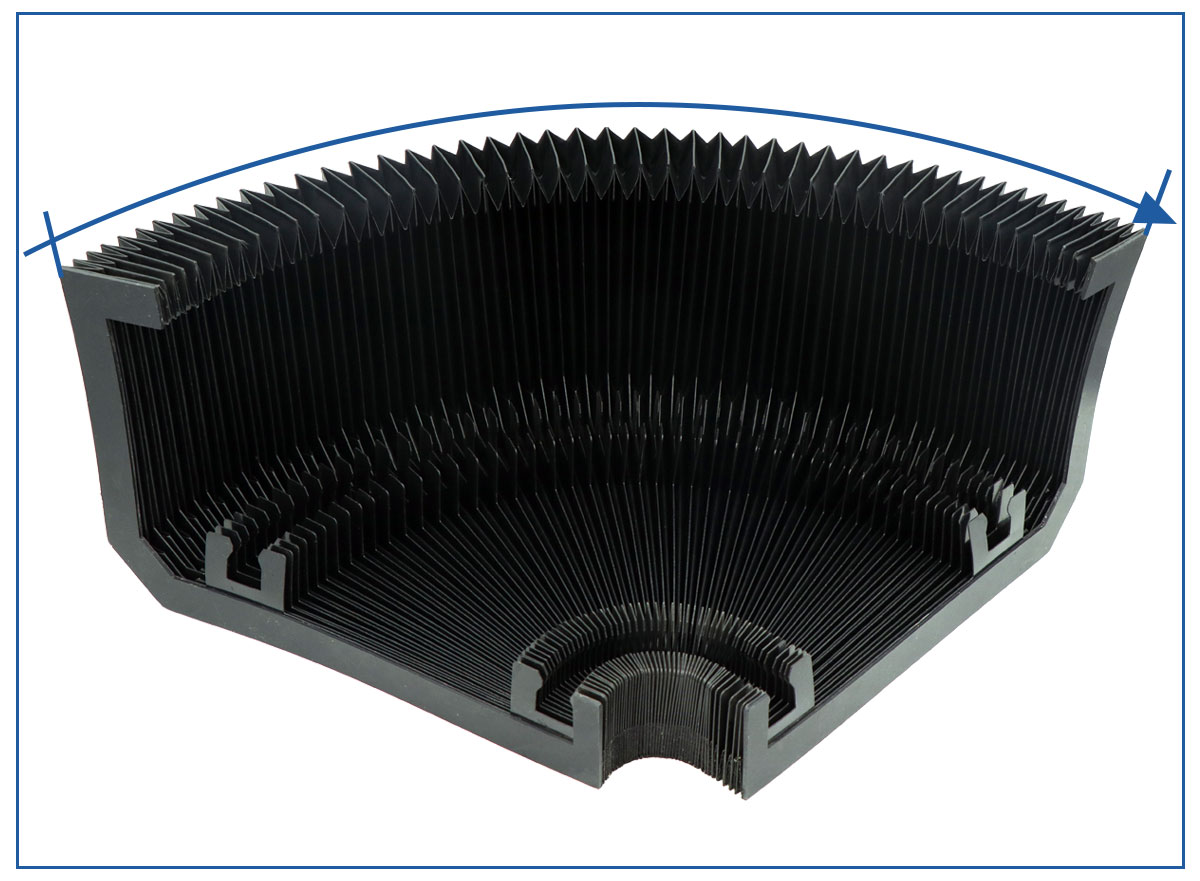

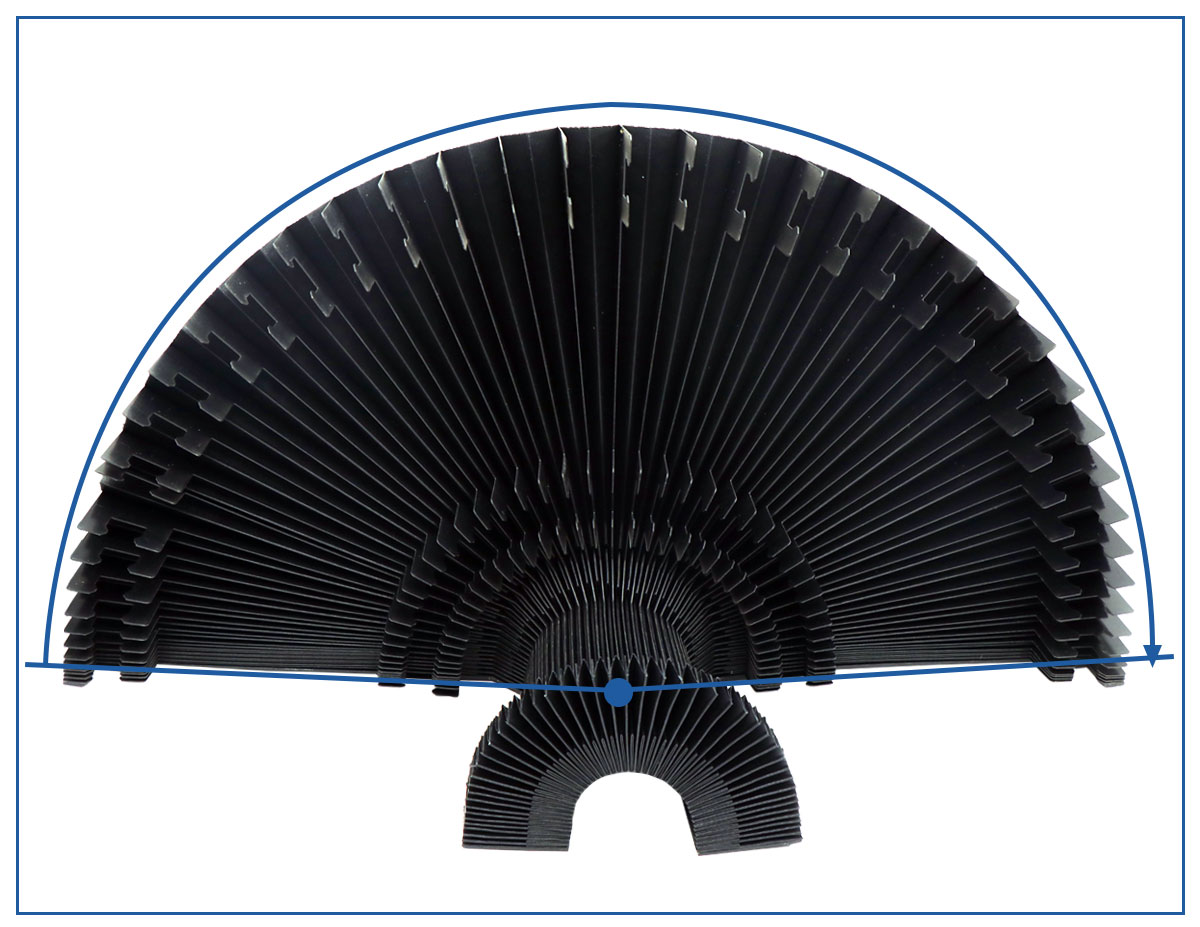

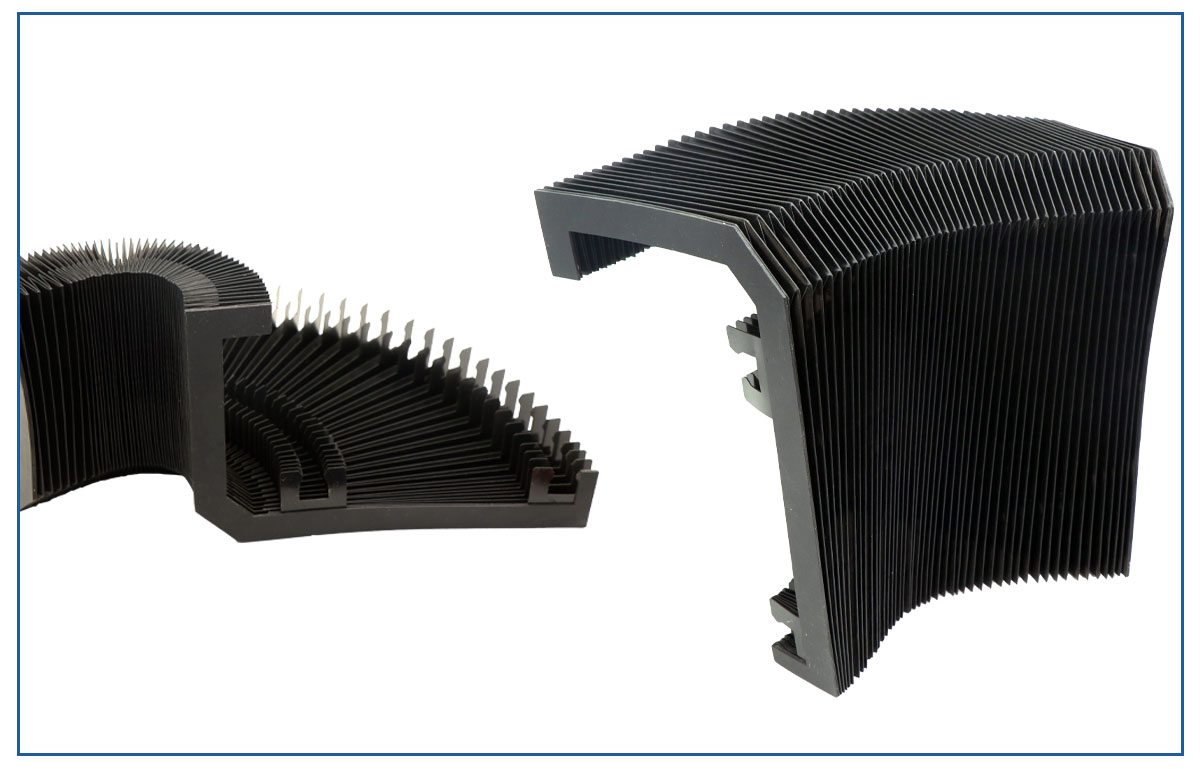

CNC Machine Bellow Cover.

o High Temperature Tolerance

o Longer Service Life

o Easily Removed And Mounted

o Optimum Strength

o Good Temperature Resistance

o Tough Construction

o Less Maintenance

o Flawless Finish

o High Tensile Strength

o Rugged In Construction

o High Resistance To Temperature

Materials : Our Bellows Are Manufactured From Superior Quality Synthetic Materials And Are Long Lasting And It Can Withstand Temperatures Up To 250 C And Are Resistant To All Cutting Oils And Coolants Etc.
Material Used : Nylon Fabric Coated With Polyurethane, High Tensile Polyamide Fabric, Canvas, Leathered
Mounting : Bellows Are Mounted And Removed Easily. Split Type Designs Ensure The Same. No Costly Down Time For Maintenance. Fixing Options To Suit Individual Machine Are Available
Different Shapes:

1. End Frames
End frames, mostly made from steel or aluminum, connect the bellows with the machine. Hennig offers various fastening solutions for the adaptation to different bellows and machine interfaces.

2. Intermediate Frames
Intermediate steel frames are used to connect the various elements, especially when extension limit systems are required. The intermediate frames are fastened to the bellows with a clamping rail. The intermediate frames can be guided by either plastic or brass rollers or gliders.

3. Guide Frames
The guide frames provide the bellows with the necessary stability and enable a precise operation, even at high speeds. They are made from PVC and are directly welded to the cover. The shape of the frame is adapted by Hennig to the design required.

4. Rollers
Rollers are used in large and heavy bellows. They minimize friction and ensure excellent running properties.

5. Coupling Rail
Necessary for medium and large bellows with a high number of folds in order to connect the single bellow elements together. Connected inside and outside.

6. Lamellas
Fixed or hinged, stainless steel lamellas can be added to protect the bellows against hot, sharp-edged swarf, or mechanical strain.

7. Scissors
Scissors are used for high traversing speeds. This allows an even extension of all elements across the whole extension length. As a result, the folds are less strained and the durability of the bellows is prolonged.

8. Half Scissors
With half-scissors, the individual elements can be extended successively depending on the necessary extension length. Since the folds are not loaded up to the theoretically possible extension limit, it also has better durability.
