PRODUCT DESCRIPTION

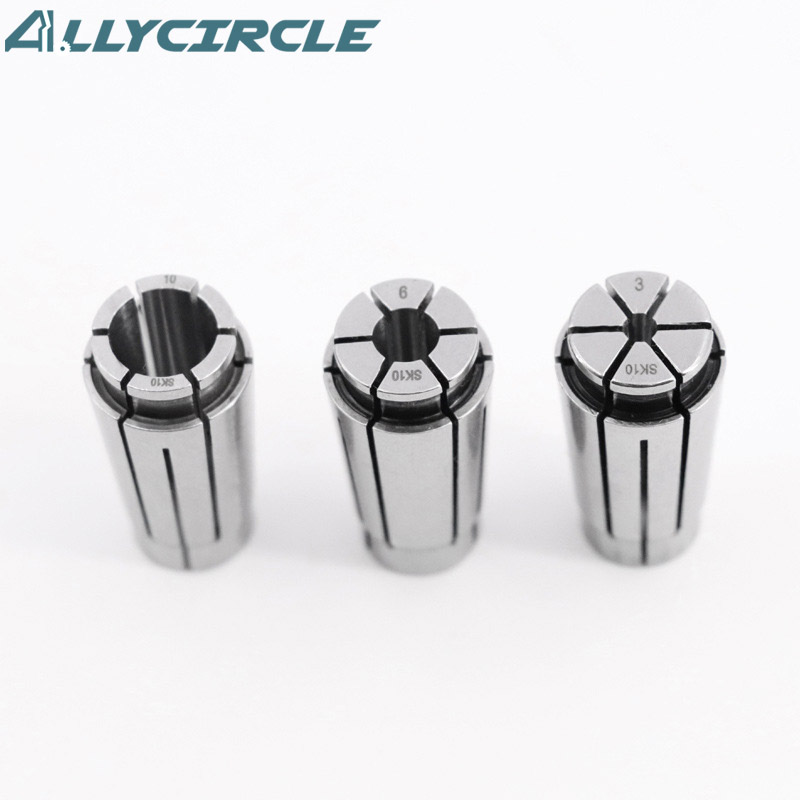

Common SK Collet

Name: SK Collets
SKU: 0

High precision and hardness / Quenching treatment

High precision / Sturdy and durable

Product information

Product : Common SK Collet

Specification:SK06(2-6)/SK10(2-10)/SK13(3-13)/SK16(3-1 6)/SK20(4-20)/SK25(6-25)

Material :65Mn

Precision:≤0.008

Quenching and hardening,longer life

After hot processing and high temperature treatment,

the strength is relatively high, with a certain flexibility and plasticity

65mm spring steel, high clamping force

High quality spring steel elastic design,

high elasticity, large clamping force

Less deformation with repeated use

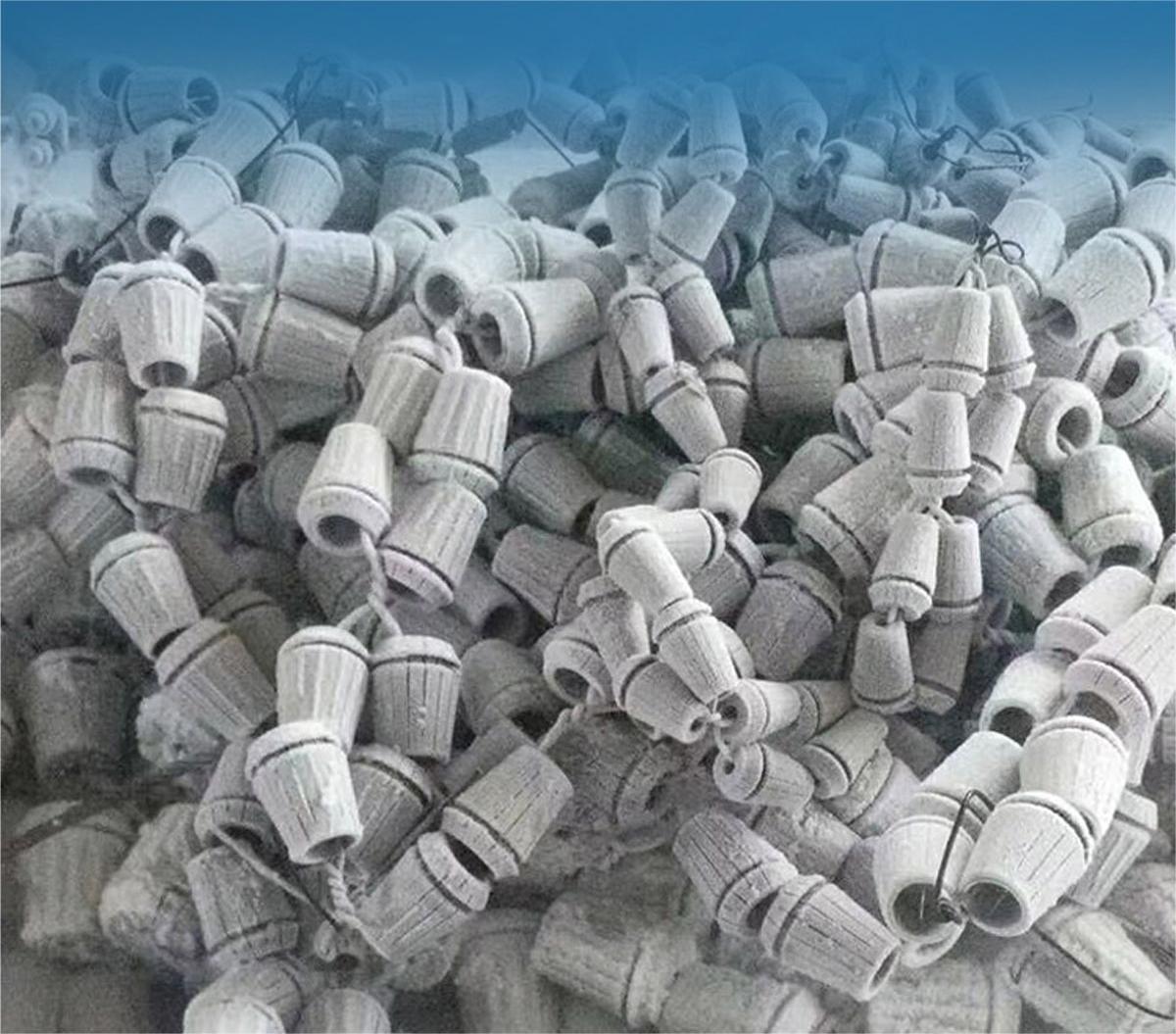

-187℃ ultra-long subzero treatment

* Subzero treatment transforms residual austenite into martensite

* Precipitated nano-scale carbide particles increase hardness and toughness

* Reduce residual stress and enhance abrasion resistance

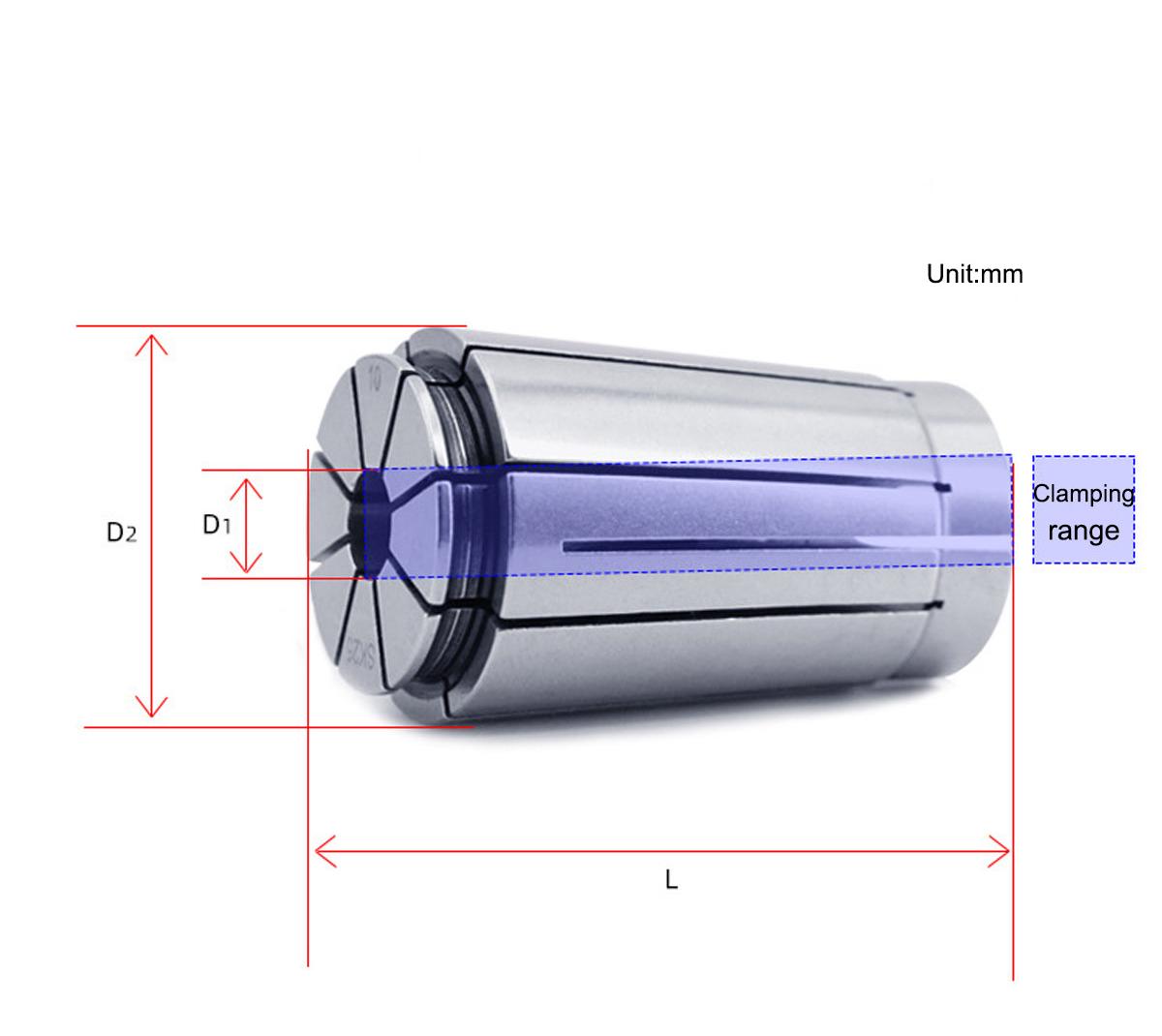

Product parameter

SK06

Model	Inner Diameter(D1)	ClampRange	OuterDiameter(D2)	L
SK06	2	2-1.75	8.9(8.6)	25
	2.5	2.5-2.25
	3	3-2.75
	3.5	3.5-3
	4	4-3.5
	4.5	4.5-4
	5	5-4.5
	5.5	5.5-5
	6	6-5.5

SK10

Model	Inner Diameter(D1)	ClampRange	OuterDiameter(D2)	L
SK06	2	2-1.75	13.4 (13)	30.5
	2.5	2.5-2.25
	3	3-2.75
	3.175	3.175-2.7
	3.5	3.5-3
	4	4-.3.5
	4.5	4.5-4
	5	5-4.5
	5.5	5.5-5
	6	6-5.5
	6.5	6.5-6
	7	7-6.5
	7.5	7.5-7
	8	8-7.5
	8.5	8.5-8
	9	9-8.5
	9.5	9.5-9
	10	10-9.5

SK13

Model	Inner Diameter(D1)	ClampRange	OuterDiameter(D2)	L
SK13	3	3-2.75	17.05	39
	3.5	3.5-3
	4	4-3.5
	4.5	4.5-4
	5	5-45
	5.5	5.5-5
	6	6-5.5
	6.5	6.5-5
	7	7-6.5
	7.5	7.5-7
	8	8-7.5
	8.5	8.5-7
	9	9-85
	9.5	9.5-9
	10	10-9.5
	10.5	10.5-9
	11	11-10.5
	11.5	11.5-10
	12	12-11.5
	12.5	12.5-11
	13	13-12.5

SK16

Model	Inner Diameter(D1)	ClampRange	OuterDiameter(D2)	L
SK13	2	3-2.75	20.85	45
	2.5	3.175-2.7
	3	Mar-35
	3.175	4-3.5
	3.5	4.5-4
	4	5-4.5
	4.5	5.5-5
	5	6-5.5
	5.5	6.5-5
	6	7-6.5
	6.5	7.5-7
	7	8-7.5
	7.5	8.5-7
	8	9-8.5
	8.5	9.5-9
	9	10-9.5
	9.5	10.5-9
	10	11-10.5
	10.5	11.5-10
	11	12-11.5
	11.5	12.5-11
	12	13-12.5
	12.5	13.5-13
	13	14-13.5
	14.5	14.5-14
	15	15-14.5
	15.5	15.5-15
	16	16-15.5

SK20

Model	Inner Diameter(D1)	ClampRange	OuterDiameter(D2)	L
SK20	4	4-3.5	24.95	54
	4.5	4.5-4
	5	5-45
	5.5	5.5-5
	6	6-5.5
	6.5	6.5-5
	7	7-6.5
	7.5	7.5-7
	8	8-7.5
	8.5	8.5-7
	9	9-8.5
	9.5	9.5-9
	10	10-9.5
	10.5	10.5-9
	11	11-10.5
	11.5	11.5-10
	12	12-11.5
	12.5	12.5-11
	13	13-12.5
	13.5	13.5-13
	14	14-13.5
	14.5	14.5-14
	15	15-14.5
	15.5	15.5-15
	16	16-15.5
	16.5	16.5-16
	17	17-16.5
	17.5	17.5-17
	18	18-17.5
	18.5	18.5-18
	19	19-18.5
	19.5	19.5-19
	20	20-19.5

SK25

Model	Inner Diameter(D1)	ClampRange	OuterDiameter(D2)	L
SK25	6	6-6.5	24.95	54
	8	8-7.5
	10	10-.95
	12	12-11.5
	14	14-13.5
	16	16-15.5
	16.5	16.5-16
	17	17-16.5
	17.5	17.5-17
	18	18-17.5
	18.5	18.5-18
	19	19-18.5
	19.5	19.5-19
	20	20-19.5
	20.5	20.5-20
	21	21-20.5
	21.5	21.5-21
	22	22-21.5
	22.5	22.5-22
	23	23-22.5
	23.5	23.5-23
	24	24-23.5
	24.5	24.5-24
	25	25-24.5

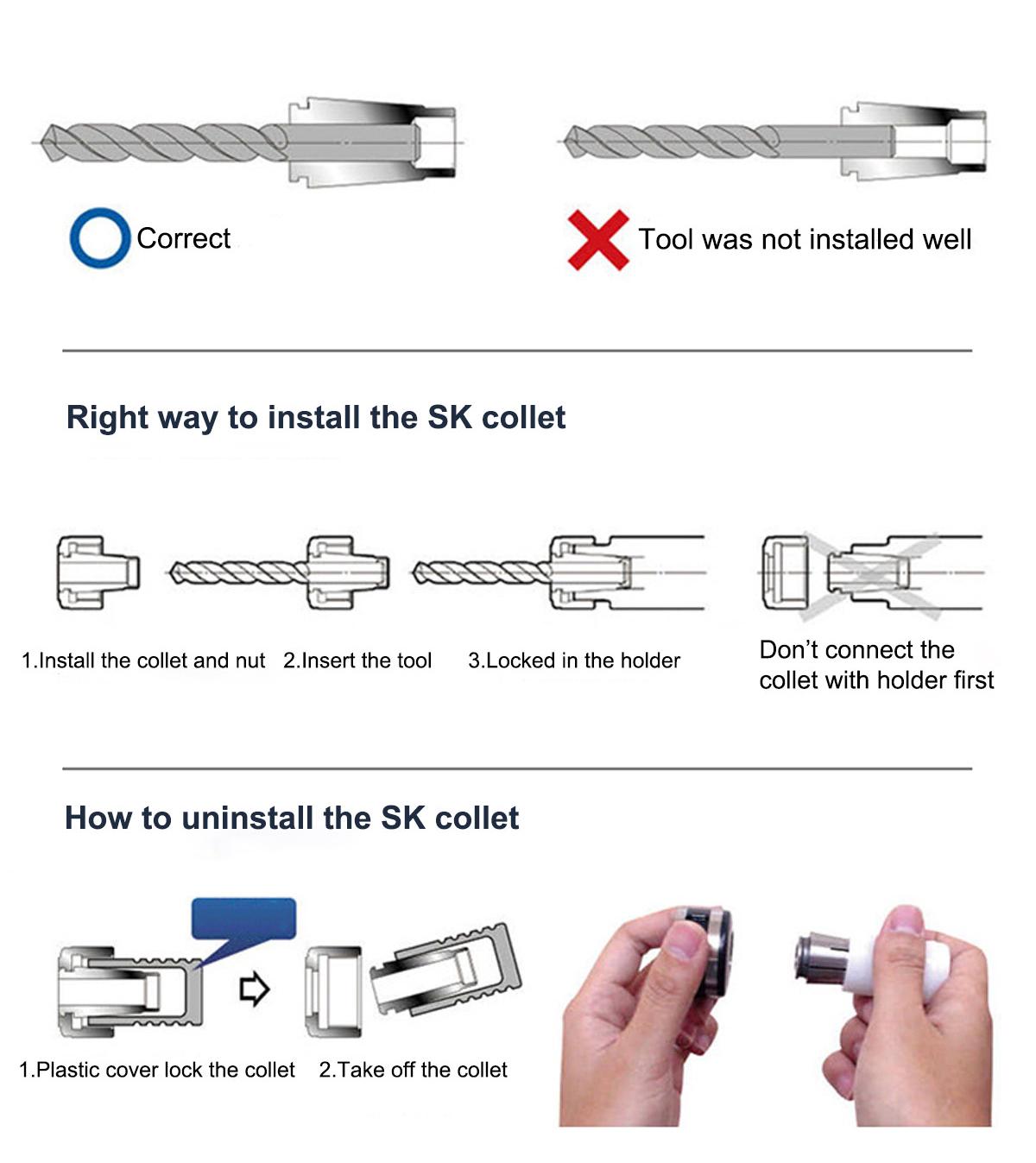

Installation instructions

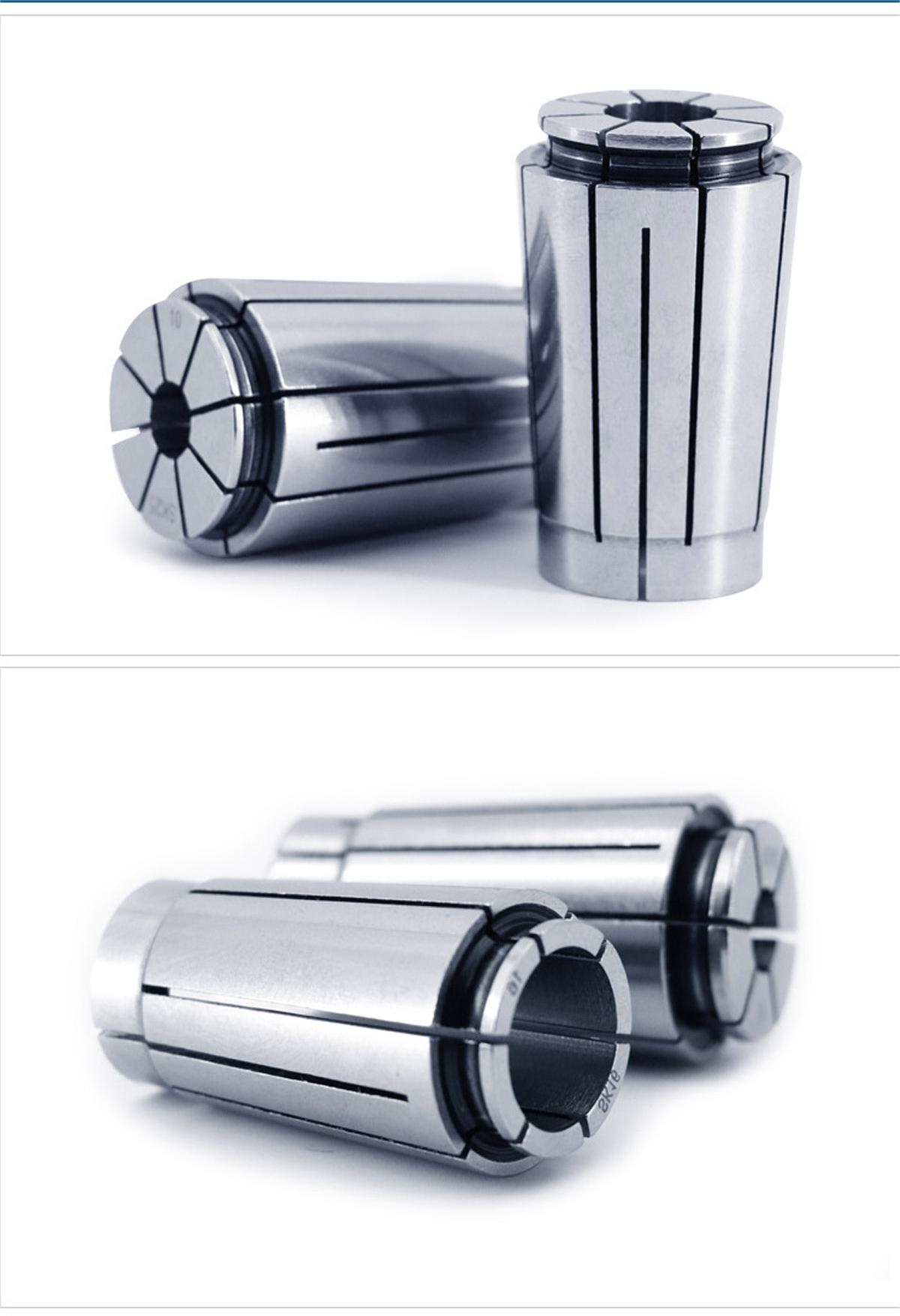

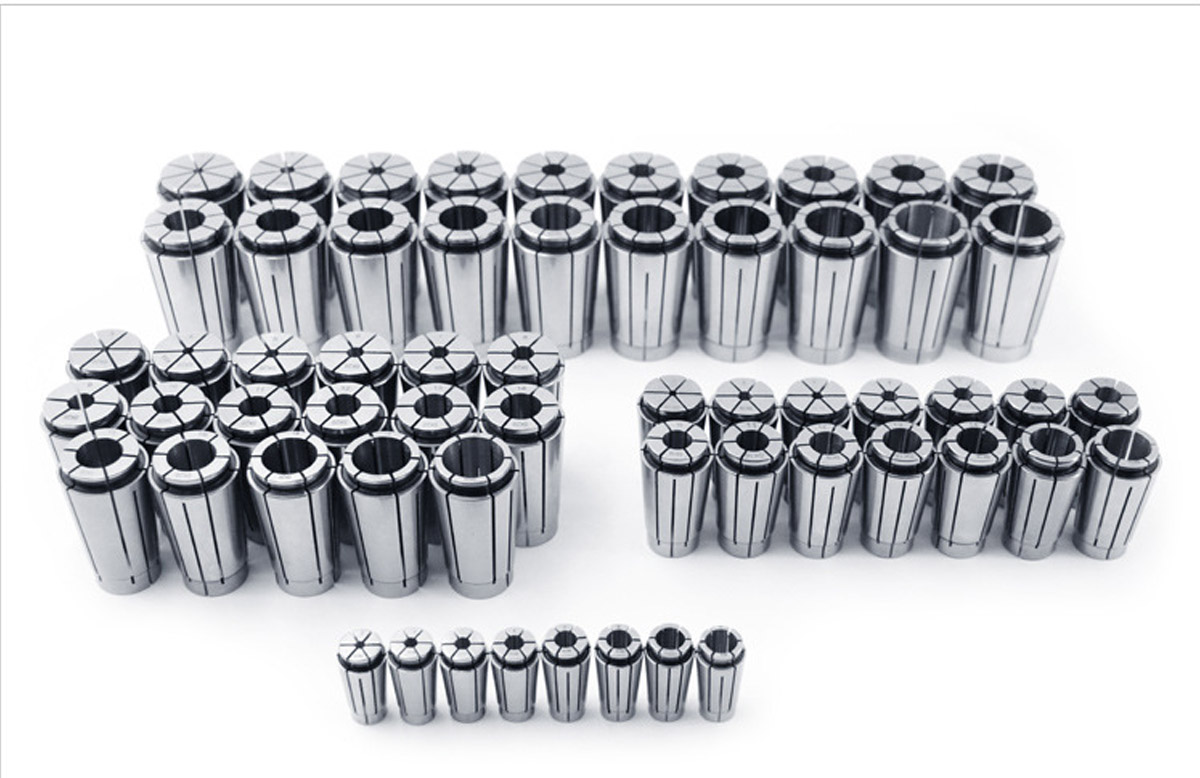

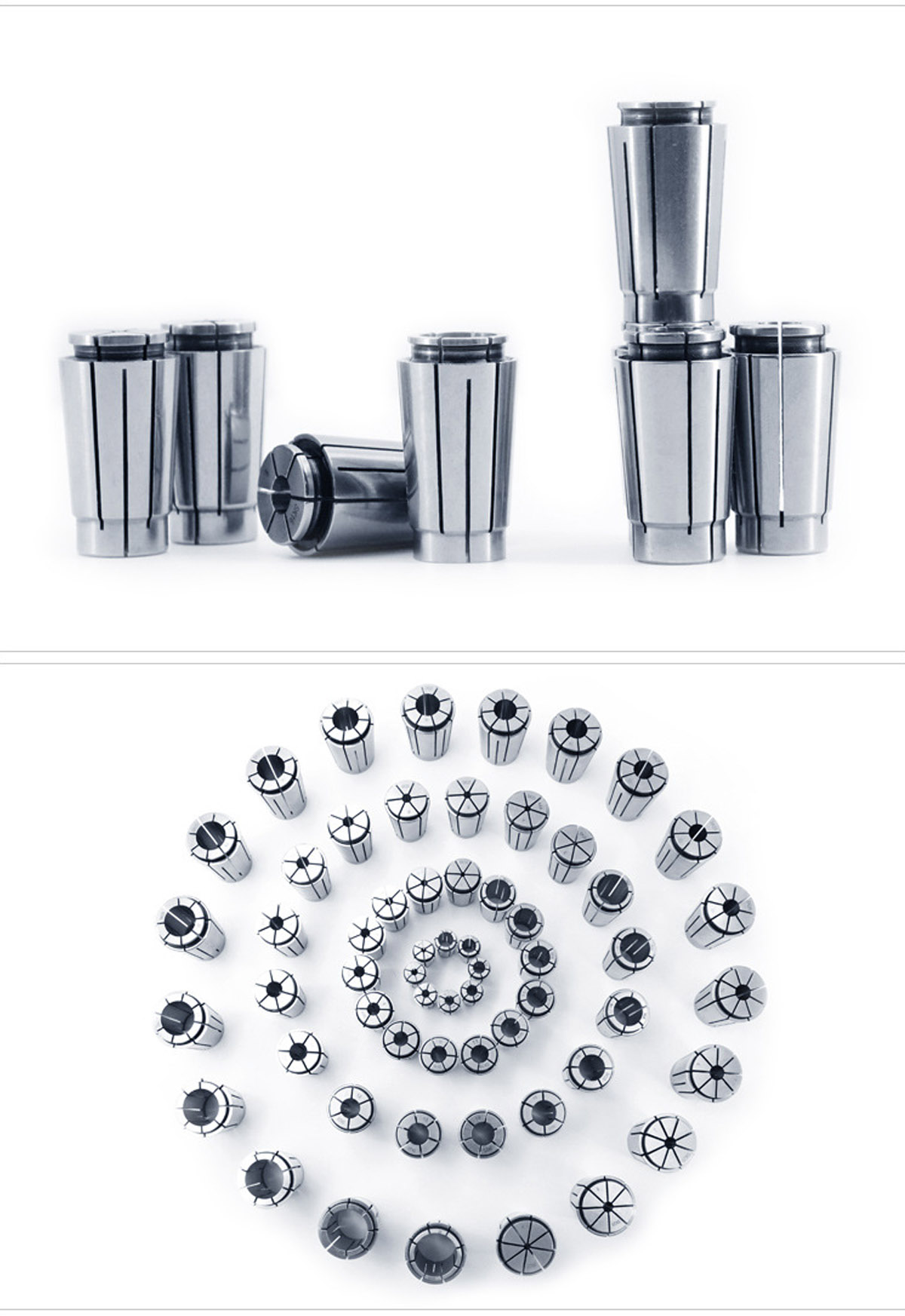

Real Photos
